Titanium Mesh Electrode Iridium Oxide Coated Gr1 for swimming pool chlorinator

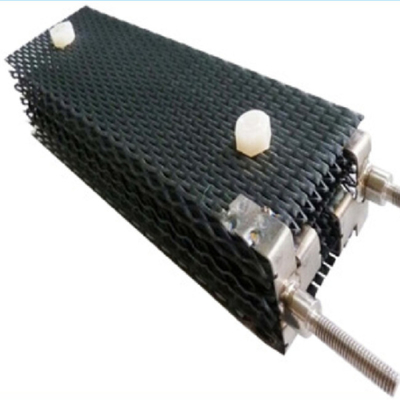

Iridium oxide coated titanium electrode mesh for swimming pool chlorinator

Iridium oxide coated titanium electrode mesh is a type of material that can be used in swimming pool chlorinators. This type of electrode mesh is designed to be highly resistant to corrosion and wear, which makes it ideal for use in harsh environments like swimming pools.

When an electric current is passed through the iridium oxide coated titanium electrode mesh, it produces chlorine gas from the salt present in the water. This chlorine gas then dissolves in the water, producing a disinfectant solution that helps to keep the pool clean and free from harmful bacteria.

One of the benefits of using iridium oxide coated titanium electrode mesh is that it has a long lifespan and is highly resistant to corrosion. Additionally, this type of electrode mesh is easy to maintain.

Overall, if you are looking for a reliable and long-lasting material for use in a swimming pool chlorinator, iridium oxide coated titanium electrode mesh is a great choice.

Iridium oxide coated titanium electrode mesh for swimming pool chlorinator Specification

Typical working conditions:
Recommended salt concentration: 3-4 g/l or can be as your design
Water temperature: from 25 to 37 °C
PH: 6-8
Current Density:100-300A/M2
Minimum Time for Strengthening Life:≥100 hours(2A/dm2,reverse the directions every 2 minutes)
Main Compositions:Pt+Ir/RuO2+IrO2
We manufactures titanium electrode and Platinized Titanium Anodes used in all major manufacturers of swimming pool electrochlorinators worldwide. also can be coating by Ir Oxide,Ru Oxide etc

Advantages:

No handling of toxic, dangerous chemicals;
Hypochlorite with no additional impurities is produced;
Disinfectant has a close to neutral pH, meaning the system is not susceptible to changes in pH;
Continuous coating improvement and cell optimization to improve coating life;
Ability to fabricate complex anode structures and provide complete assembly services for cells and complete units under OEM agreement;

Test:

Coating X-Ray Test

Coating Thickness Test

Helium Leak Detection Test,

Contact Resistance Test

Performance Test and other test.

MMO Coating types:

Ru-Ti oxide mixed, Ru-Ir oxide mixed, Ru-Ir-Sn oxide mixed, Ru-Ir-Pt oxide mixed, Ir-Ta oxide mixed, IrO2,Platinum, PbO2.

Application Case:

There are many examples of the successful use of iridium oxide coated titanium electrode mesh in swimming pool chlorinator applications. One example is the installation of this type of electrode mesh in a large commercial swimming pool in Australia.

The pool, which was used by a large number of people every day, was struggling to maintain consistent levels of chlorine in the water using traditional methods. The pool owner decided to install an iridium oxide coated titanium electrode mesh chlorinator system to improve the water quality and reduce maintenance costs.

The system consisted of a control panel and a series of iridium oxide coated titanium electrode mesh cells installed in the pool's circulation system. The cells were arranged in such a way as to provide a consistent flow of chlorine gas into the water, ensuring that the chlorine levels remained within the optimal range.

After the system was installed, the pool owner reported a significant improvement in water quality, with fewer instances of algae growth and other water quality issues. Additionally, the system required very little maintenance, with the electrode mesh cells only needing to be cleaned periodically.

Overall, the use of iridium oxide coated titanium electrode mesh in swimming pool chlorinator applications has been shown to be highly effective and reliable, providing a cost-effective solution for maintaining clean and safe swimming pool water.
