titanium ribbon anode 6.35x0.635mm for cathodic protection (ICCP) in Fine Sand and Concrete
| Place of Origin | China |
|---|---|
| Brand Name | CSTI |
| Certification | ISO9001 |
| Model Number | titanium ribbon anode |
| Minimum Order Quantity | 1Kilogram |
| Price | $2.00 - $2.50/Kilogram |
| Packaging Details | standard export wooden cas or as your request |
| Delivery Time | 10~30 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 10000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Shaanxi, China | Substrate | Gr1 Titanium |
|---|---|---|---|
| Ti Content (%) | 99.6% | Coating | Ir-Ta Mixed,IrO2+Ta2O5 Coating |
| Dimension | As Your Drawing | Lifetime | Available For 50,100 Years |
| Application | Cathode Protection, Protection Of Storage Tanks | Test | Coating X-Ray Test,Coating Thickness Test |
| Highlight | Ribbon Titanium Conductor Bar,0.02" Titanium Conductor Bar,328 ft anode ribbon |
||
Product Description

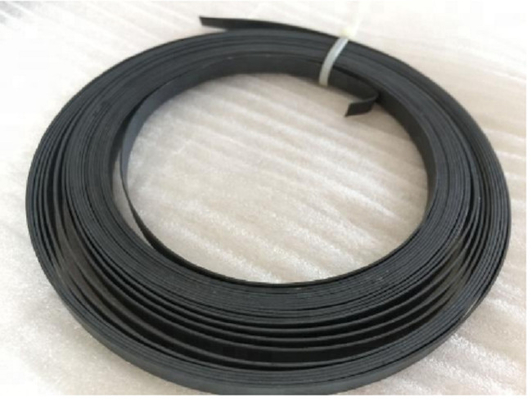

Titanium ribbon anode 6.35x0.635mm for cathodic protection (ICCP) in Fine Sand and Concrete
titanium ribbon anode with dimensions of 6.35x0.635mm is a type of impressed current cathodic protection (ICCP) anode commonly used in applications involving fine sand and concrete.
ICCP is a method of protecting metallic structures from corrosion by using an external electrical current to counteract the natural electrochemical process that causes corrosion. Titanium is a popular material for ICCP anodes because it is highly resistant to corrosion and has a long lifespan.
The ribbon shape of the anode allows for a large surface area of contact with the sand or concrete, which is important for effective cathodic protection. The small size of the anode also makes it easy to install and integrate into the structure being protected.
In applications involving fine sand and concrete, the titanium ribbon anode is typically buried directly in the sand or embedded in the concrete. The external electrical current is then applied to the anode, which creates a protective current flow that counteracts the corrosion process.
Overall, the use of a titanium ribbon anode with dimensions of 6.35x0.635mm is a popular choice for ICCP in applications involving fine sand and concrete due to its corrosion resistance, long lifespan, and effectiveness in providing cathodic protection.
Titanium ribbon anode 6.35x0.635mm for cathodic protection (ICCP) specification
Material:gr1 titanium as substrate
| Grade | N | C | H | Fe | O | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | bal |
Nominal Dimensions of Solid Ribbon:
Ribbon dimensions: 6.35mm width x 0.635mm thickness (1/4" x 0.025")
Standard Coil Length: 328 ft (100m)
Standard Coil Weight: 2.5 lbs (1.12kgs)
Surface Area of Ribbon: 0.014m2 per m
Current Output of Ribbon in Fine Sand:
12.8mA/ft (42mA per m) when operating at an anode current density of .278 A/ft2 (3 A/m2)
Design Life:
50 years + when operating at an anode current density of .278A/ft2 (3 A/m2)
MMO titanium Ribbon Anode Size sheet:
|
Widthness (mm) |
Thickness(mm) |
Length/Coil (mm) |
Output Current (mA/m) |
Cross Section (mm2) |
Weight (g/m) |
Working life (year) |
| 6.35 | 0.635 | 152000 | 17 | 4.03 | 18.2 | 50 |
| 12.7 | 0.63 | 152000 | 34 | 8.06 | 36.4 | 50 |

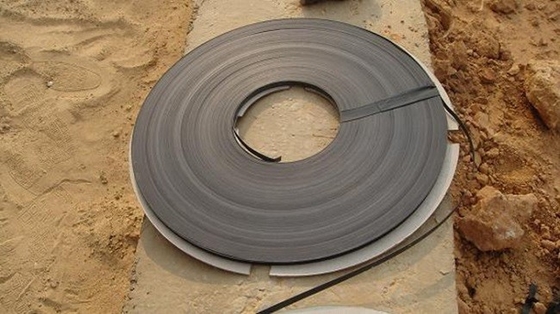

Typical Application for Ribbon anodes
Other MMO titanium anodes for cathode protection

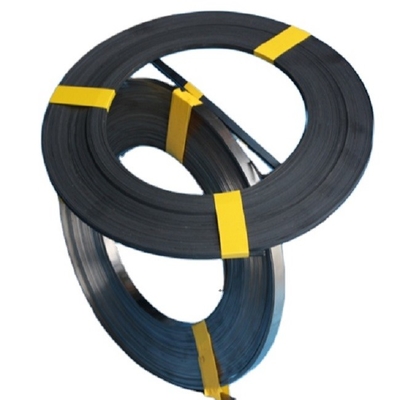

Titanium Conductor Ribbon/Solid Ribbon Titanium Anode
Ribbon Mesh Titanium Anode
Wire Titanium Anode
Rod Titanium Anode
Tubular Titanium Anode
Test report of coating thickness:
We can provide the Accelerated Life Test, Coating X-Ray Test, Coating Thickness Test, Contact Resistance Test, Electrochemical Performance Test and other test.
Titanium ribbon anode 6.35x0.635mm for cathodic protection (ICCP) in Fine Sand and Concrete application case
Here is an example of a cathodic protection (ICCP) application for a titanium ribbon anode with dimensions of 6.35x0.635mm in fine sand and concrete:
A concrete jetty that extends into the sea is experiencing corrosion on its steel reinforcement bars due to the saltwater environment. To prevent further corrosion and extend the lifespan of the structure, ICCP will be implemented using titanium ribbon anodes.
The anodes will be buried in a trench around the perimeter of the jetty and embedded in fine sand, which will provide electrical contact with the anodes. The ribbon anodes will be spaced at regular intervals along the trench to ensure even current distribution.
The anodes will be connected to a DC power source that will supply a protective current to the structure. The current output of the anodes will be adjusted based on the size of the jetty and the level of corrosion protection needed.
The titanium ribbon anodes will be coated with MMO to improve the efficiency and durability of the anodes in the harsh saltwater environment. The anodes will be connected to tinned copper or platinum wire, which will be crimped or welded to the anode ribbon.
The expected lifespan of the titanium ribbon anodes in this application is 20-25 years, depending on the specific conditions of the environment. Regular monitoring and maintenance of the ICCP system will ensure that the anodes continue to provide effective corrosion protection over their lifespan.
