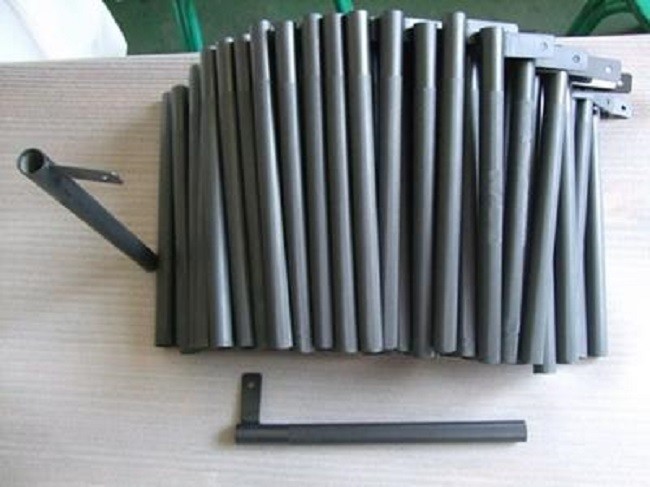

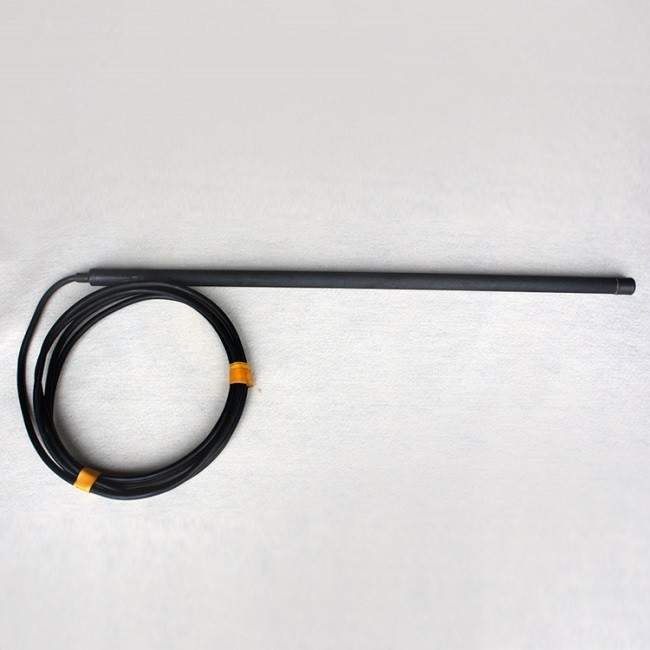

Gr2 Titanium Tubular Anode

1. Substrate Metal Chemical Composition:

2. Specification of mmo tube anode

For Solid and Fresh water, Coke application:

Note:Wall thickness1.0,1.5,2.0,3.0mm as your request

For Sea water application:

Wall thickness1.0,1.5,2.0,3.0mm as your request

For Other Environment:

Note:lifetime stated are nominal,we can supply Amps/lifetime different to stated standards on request

Applicatin case as customer design and parameter :

This is an example of a cathodic protection mmo tubular anode for Marine environmental bridge anticorrosion in southeast Asian countries.
I. basic technical parameters
1. Anode base material: TA1 industrial pure titanium tube
2. Anode coating: iridium tantalum mixed oxide coating (mmo oxide)
3. Service life required by the customer: 25 years (with a service life of 25 years, we can generally reach 30 years or more)
4. Current output: 3.5a current output (current density 37A/m)
5. Anode tube size: diameter: 25.4mm x 1220mm,

More design :

Related products:

mmo ribbon anode

mmo wire anode

Conductor Bar

Our company :

Our company is one of the leading manufacturers of titanium electrodes, coated titanium anodes and waste water treatment solution in China. It has a professional technical team and skilled workers with decades of experience in titanium electrodes and electrochemistry fields. It can offer you customize high quality titanium electrodes and perfect solutions.

our control :

We can provide the Accelerated Life Test, Coating X-Ray Test, Coating Thickness Test, Contact Resistance Test, Electrochemical Performance Test and other test.

Packing :

1. Packing with moisture-proof paper;

2. Packing with foam plastics in all sides;

3. Packing products in standard wooden cases.

FAQ

1. Can you give a quotation as per the product picture on your website?
    Answer: Our anodes are non-standard products, most of them are in accordance with the requirements of the customer's specific requires. The application industries and countries are different, so please let your engineers or your customer's engineers to provide a specific size, anode working environment, usage, current density and life expectancy, so we can offer you specific price.

2. What is your internal inspection procedure, how do you inspect your products?
    Answer: the internal inspection procedures, There are 6 steps: Material, mechanical processing, surface treatment, coating, cable connection and packing.
Every step has responsible leader, the inspector checks carefully every step with professional records, operation files, check subjects and performing programs. Once problems are checked out, steps will be taken to make up.

3. Do you have any certificate for your testes from any third party (like SGS, etc)? Or has any third party inspection company has ever tested your anodes and reported?
   Answer: yes, we do have some test certificates from famous third party, like St Louis testing laboratory and china classification society etc.

4. The wooden case is too heavy; can I have other packing method such as carton box to save the freight cost?
    Answer: Wooden cases are do heavy, but as per our years of export experience, carton box can make damage for the anode. Though wooden cases are heavy, but it will not damage the anode
