0.75In Gr2 Titanium Heat Exchanger Tube 19.05mm For Chiller
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Heat exchanger tube |
| Minimum Order Quantity | 5kg |
| Price | USD 17.5/KG - USD 27.5/KG |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Heat Exchanger Tube Material | Pure Titanium Gr1 Gr2 | Heat Exchanger Tube Outside Diameter | 6mm To 219mm |
|---|---|---|---|
| Heat Exchanger Tube Wall Thickness | 0.5mm To 30mm | Heat Exchanger Tube Surface | Polished Surface Or Acid Washing Surface |
| Heat Exchanger Tube Shape | Round Tube, Square Tube | Heat Exchanger Tube Type | Seamless Titanium Tubes, Titanium Welded Tubes |
| Heat Exchanger Tube Standard | ASTM B338, ASTM B337, ASTM B861 | Heat Exchanger Tube Application | Heat Exchanger, Vessle, Cooler, Planting And Anodizing |
| Highlight | 0.75In Titanium Heat Exchanger,19.05mm Titanium Heat Exchanger,Gr2 titanium tube heat exchanger |
||
Product Description
ASTM B338 0.75 Inches Heat Exchanger Tube Titanium Gr2 Dia19.05mm For Chillers Heat Exchanger
Titanium tube is light weight, high strength, excellent mechanical properties. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, serpentine heat exchanger, condenser, evaporator and pipeline. Many in the nuclear industry use titanium tubes as standard for their units. In titanium heat exchanger industry, good heat exchange performance is needed, thin wall tubes will be more appliable, the mainly used sizes include φ25, φ32, φ38, φ57, φ76, φ89, φ108, φ114.
Detailed Information of Heat Exchanger Tube:
Titanium Material Grade: Gr1 Gr2 Gr12...
Standard: ASTM B338 ASME B338
Common size of Heat Exchanger Tubes:
9.5mm x 0.5mm, 12.7mmx0.6mm, 12.7mmx0.9mm, 19.5mm x 0.9mm, 19.5mm x 1.2mm, 25mm x 2mm
Wall thickness: 0.5mm-10.0mm
Tube length within:15m
Supply surface: pickling surface
Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling, Extruding, Hot Expanding
Specs of Heat Exchanger Tubes:
|
Type
|
Grade
|
British measurement inch
|
Metric Measurement
|
Standard
|
|
seamless tubing
|
GR1.GR2,GR5, GR7,GR9,GR12, GR16,GR17 |
OD:0.06” to 3.5" Width:0.016” to0.315”
Length Max:709”
|
OD:1.53 to 89mm WT:0.4 to 8mm
Length Max:18000mm
|
ASTM B338 ASME SB338
|
|
seamless pipe
|
GR1.GR2,GR5, GR7,GR9,GR12, GR16,GR17 |
OD:3.5” to 25” WT:0.12” to 1”
Length Max:709”
|
OD 89 to 620mm WT:3 to 25.4mm
Length Max:18000mm
|
ASTM B338 ASME SB338
ASTM B861
|
Mechanical Properties of Titanium Tube:
|
ASTM Grade
|
Alloy composition
|
Tensile strength
|
Yield strength
|
Elongation %
|
||
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|||
|
GR1
|
Unallyed Ti(Pure)35A-CP1
|
35
|
240
|
25
|
170
|
24
|
|
GR2
|
Unallyed Ti(Pure)50A-CP2
|
50
|
345
|
40
|
275
|
20
|
|
GR5
|
Ti 6Al 4V
|
130
|
895
|
120
|
828
|
10
|
|
GR9
|
Ti 3AI 2.5V
|
90
|
620
|
70
|
483
|
15F
|
Industrial Applications of Titanium Pipe and Tube
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
Medical industry
Nuclear industry
Features of Heat Exchanger Tube:
*Usually used for heating and cooling.
*Pure titanium tube has super strong corrosion proof ability and high intensity.
*The seamless titanium tube was tested by 4.5MPa pressure to make sure the tube is strong and not leakage .
*It has the character of strong corrosion resistance ,good heat resistance, high conductivity, non-toxic,no-scale,no-blocking, no contamination of medium,and not easy to formed oxides on the surface.
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.

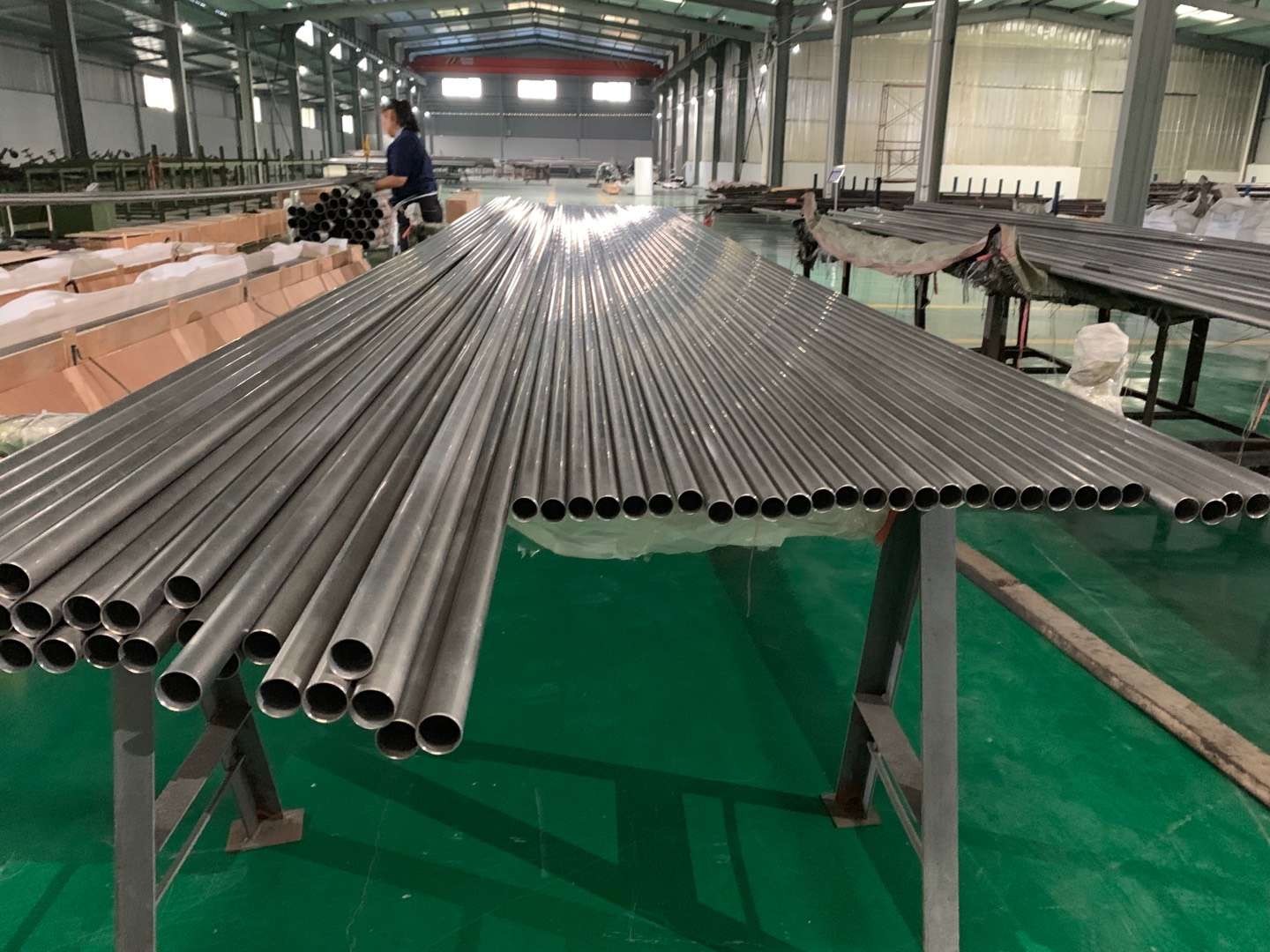

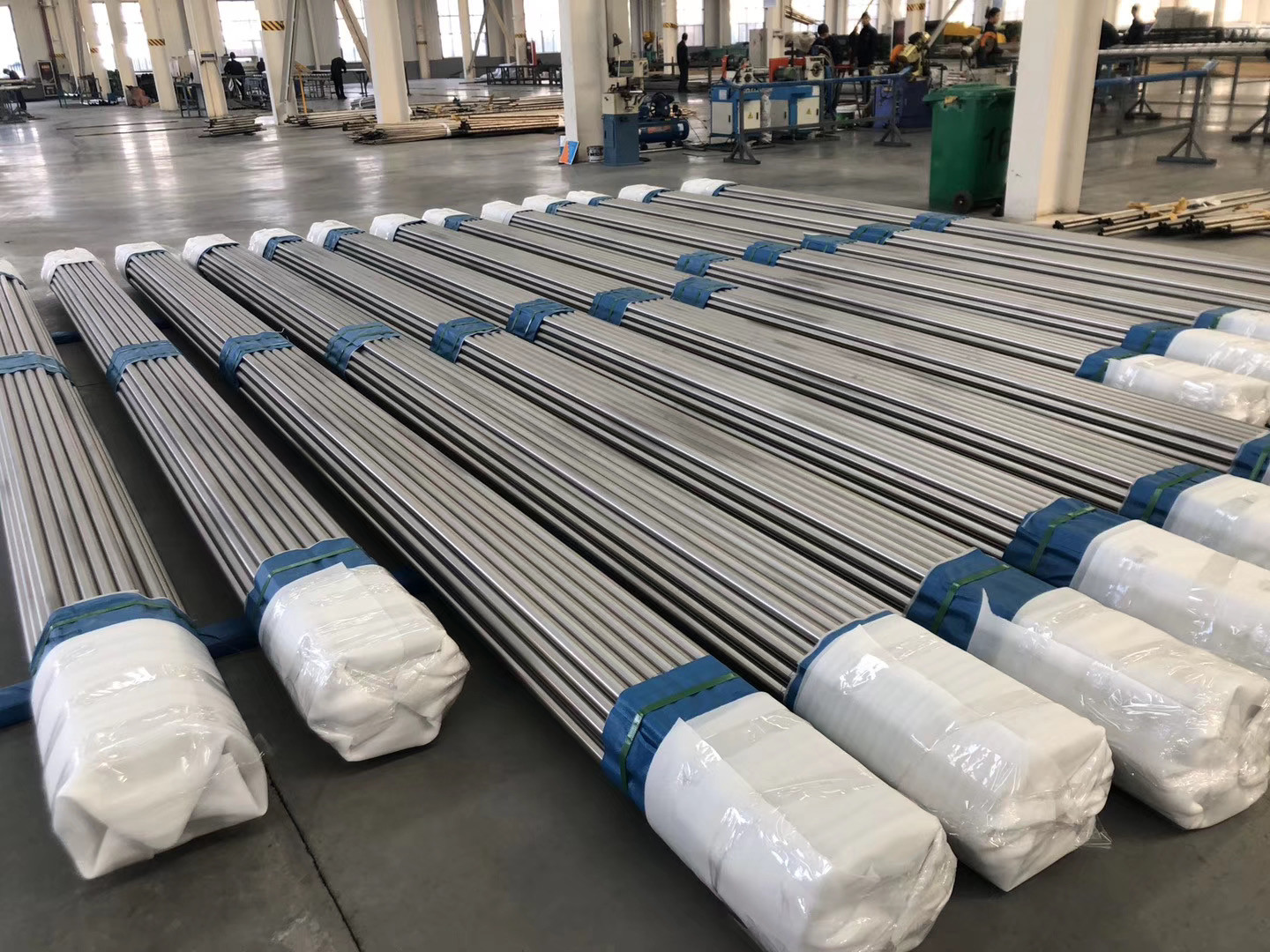

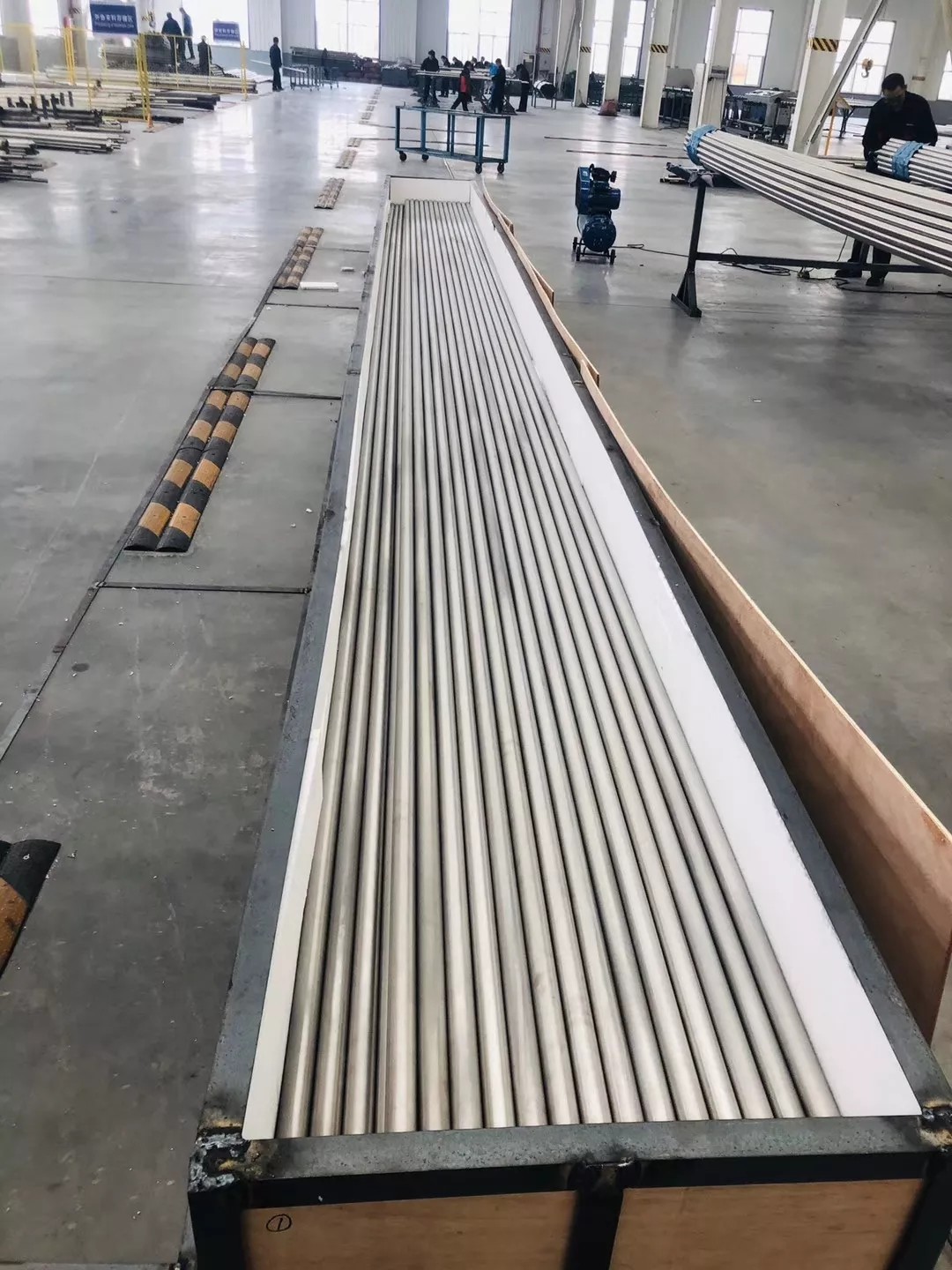

Titanium Tube Picture
Tags: Gr.2 titanium tube, Seamless titanium tubes, welded titanium tubing
