Titanium Seamless Capillary Pure Tubes Gr.2 Petroleum Chemical.
| Place of Origin | CHINA |
|---|---|
| Brand Name | CSTY |
| Certification | GB/T19001-2016/ISO9001:2015 |
| Model Number | ASTM B338 ASTM B337 |
| Minimum Order Quantity | 10kgs |
| Price | $35.00 - $125.00/ kg |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Supply State | Annealed | Condition | M |
|---|---|---|---|
| Titanium Profile Shape | L Shape Equal Angle | Sample | Available |
| Item | ASTM B337/338 Titanium Welded Tube | Flexibility | High |
| Advantage | High Efficiency, High Presicion | Size | Customizable |
| Color | Metal Bright | Outside Diameter | 6mm-89mm |
| Processing | Rolling Drawing Process | Featutre | High Resistance To Strong Acid Alkali |
| Titanisupply State | Annealed | Inventory | Large Stock, Ready To Go |
| Standard | ASTM B337/338/861 | ||
| Highlight | Pure Titanium Seamless Capillary Tubes,Gr.2 Titanium Seamless Capillary Tubes,Titanium Seamless Capillary Pure Tubes |
||
Product Description
Advantage
high resistance to corrosion
non-magnetic traits
unique density
good heat transfer
high melting point
high tensile strength
Specification
|
seamless pipe/tube |
Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16 etc Outer diameter: 3~110mm Wall thickness: 0.1~5.5mm Length: ≤19000mm |
|
welded pipe/tube |
Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16 etc Outer diameter: 10~1000mm Wall thickness: 0.5~5.5mm Length: ≤19000mm |
| Standard | ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928 |
| Material | Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12, etc |
| Surface Treatment | Pickling, polished, bright finish etc. |
| Feature |
1. Low Density and High Strength 2. Excellent Corrosion Resistance 3. Good resistance to the effect of heat 4. Excellent Bearing on cryogenic property 5. Nonmagnetic and Non-toxic 6. Good thermal properties 7. Low Modulus of Elasticity |

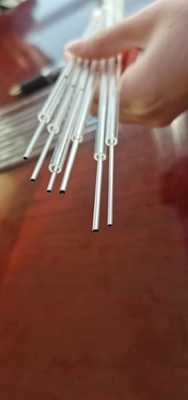

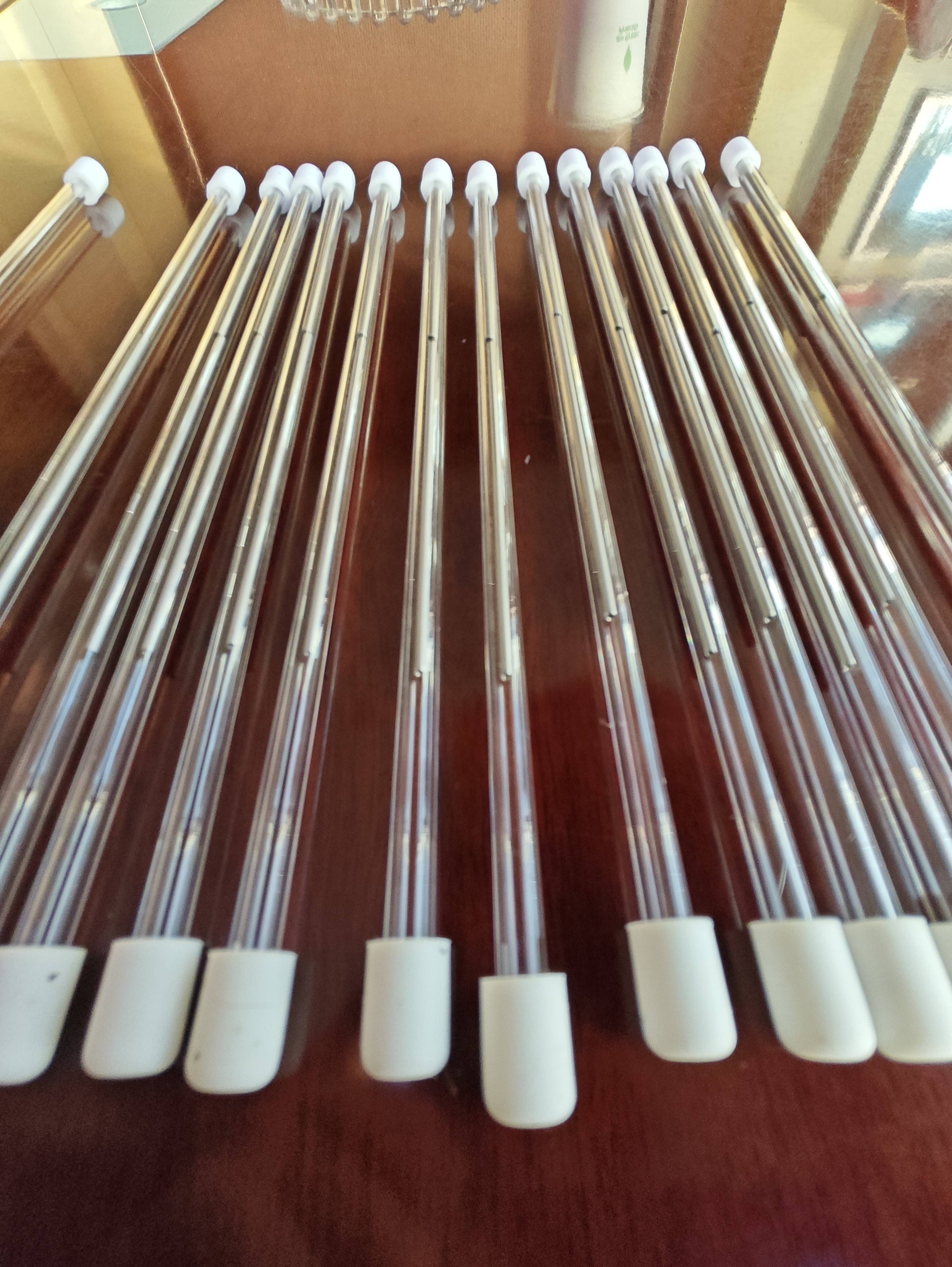

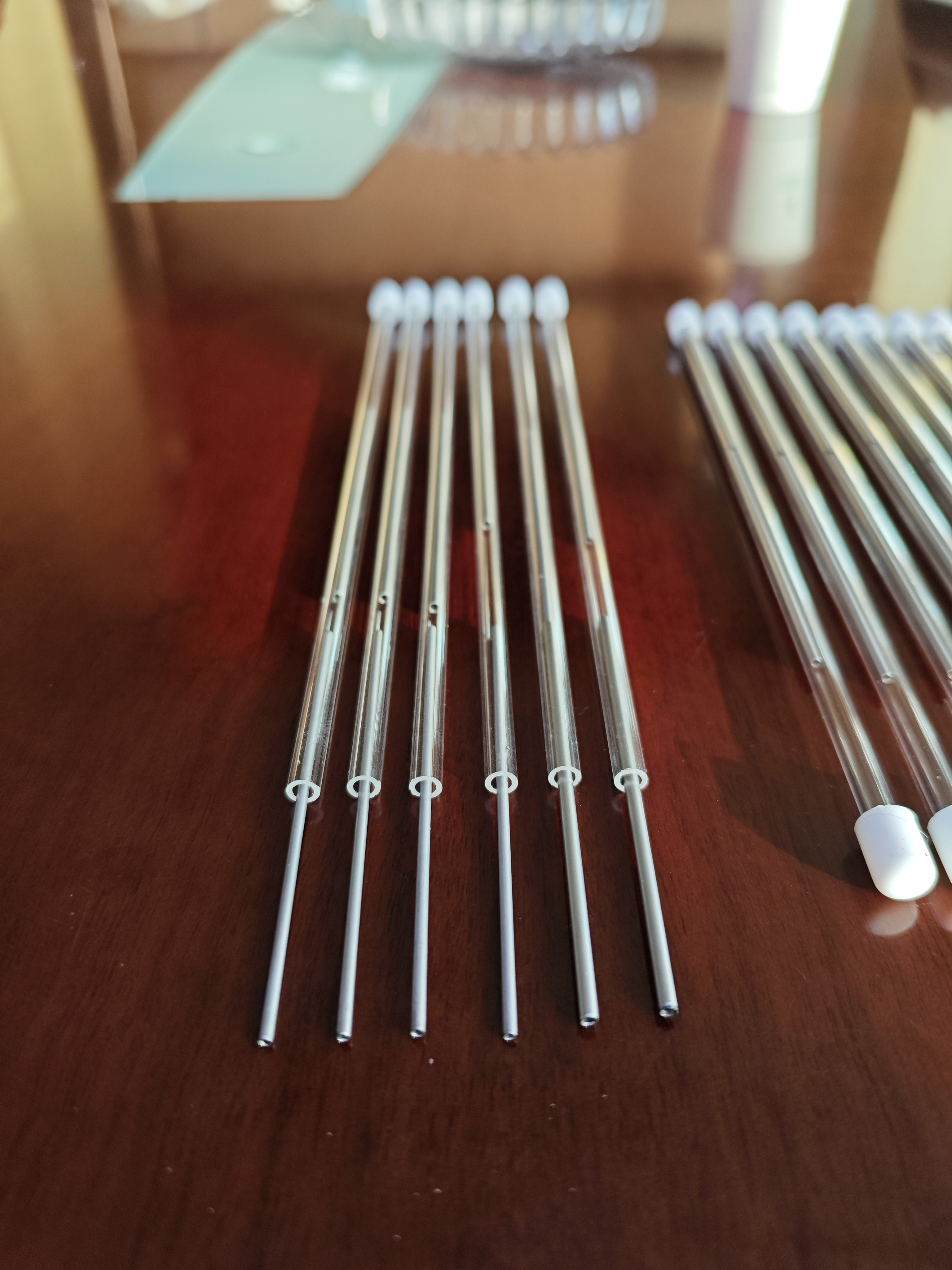

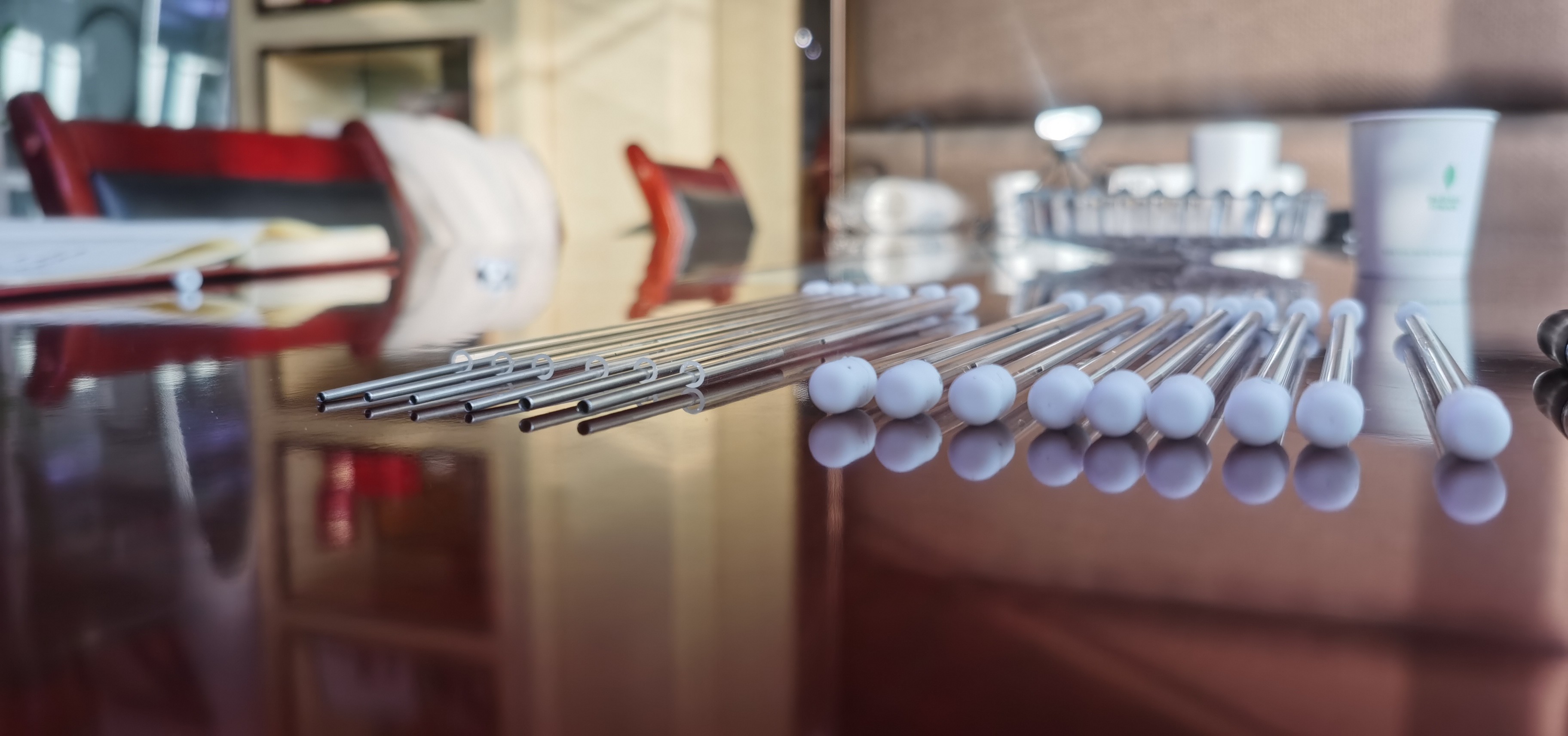

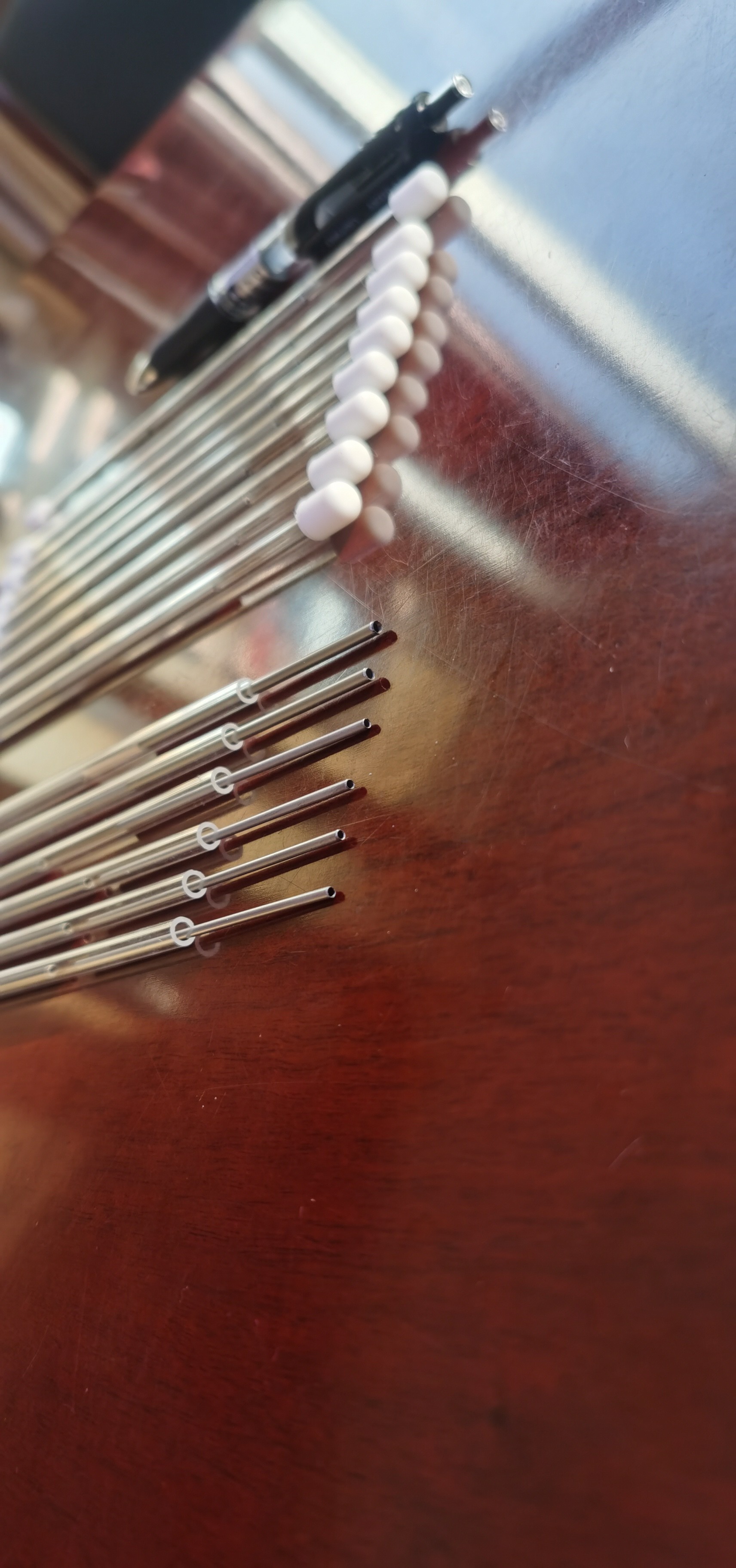

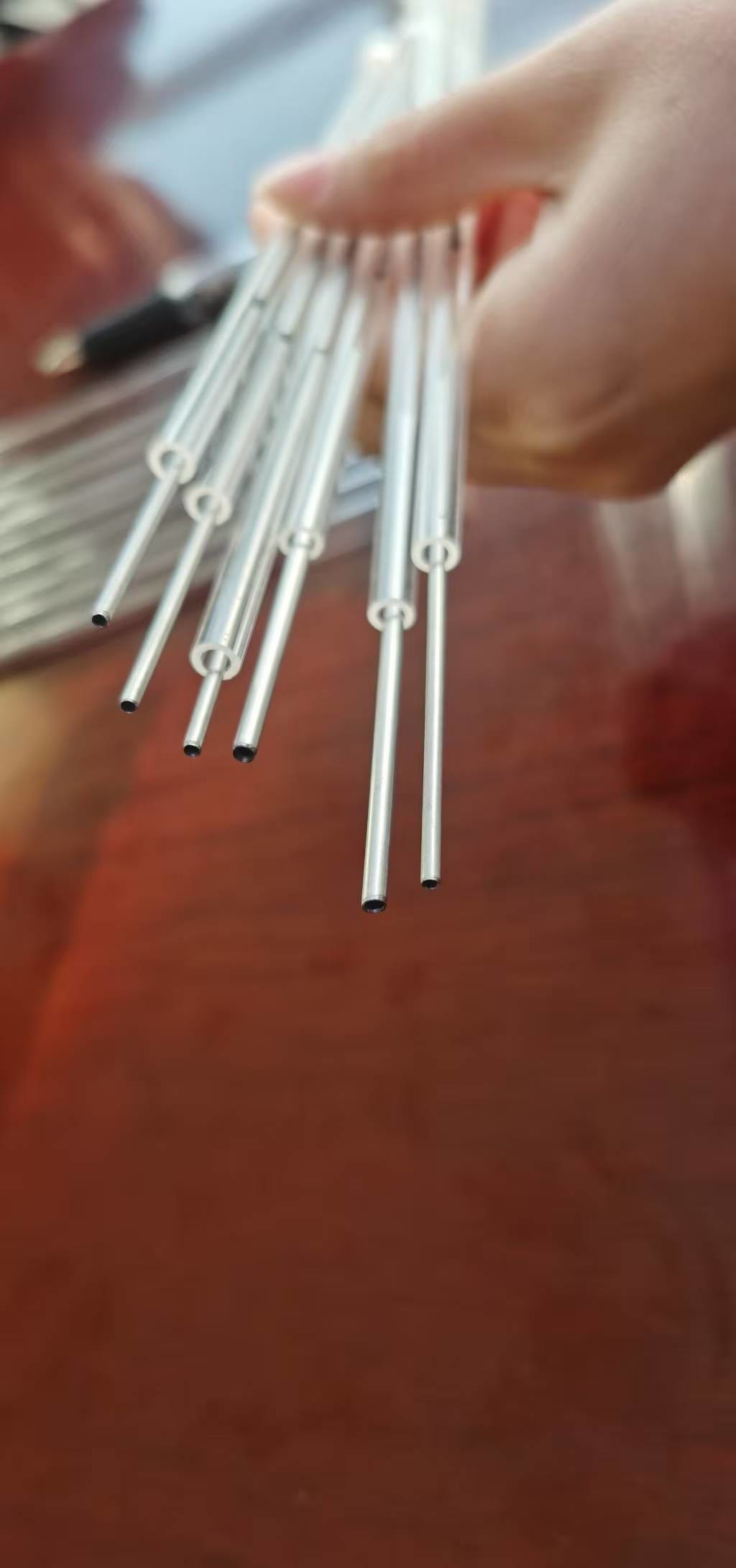

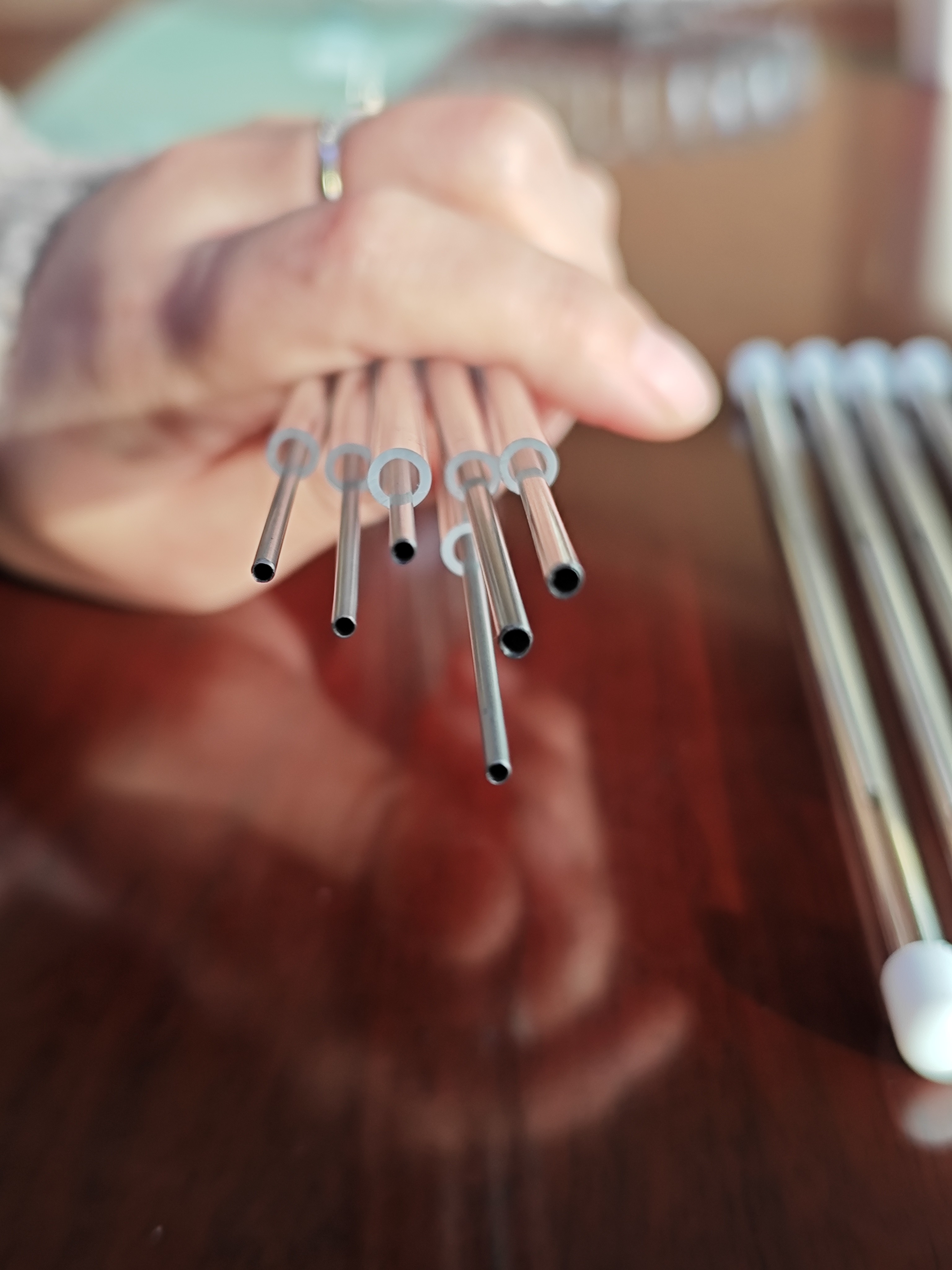

Product photo
Third-party test report
Application
For many years now, titanium has shown that it is an indispensable material. It has become very valuable in the aircraft industry, chemical processing plants, gas and oil production, and many more.
Titanium can easily be fabricated, welded, and formed to make it useful in a number of industrial operations. Titanium tubes are an example of how titanium can be rendered to become functional today.
Titanium tubes and pipes come in different grades of titanium alloys and pure titanium.
There are 38 titanium grades identified today that have passed the standards of the American Society of Mechanical Engineers (ASME) B-338 and the American Society for Testing and Materials (ASTM) B-338. Some of these approved titanium grades for pressurized service are 1, 2, 3, 7, 9, 11, 12, 16, 17, 26 (TIRU-26TM), and 27 (TIRU-27TM). Among them, grade 2 titanium is most frequently used, especially for power plant surface condensers.
Examples of titanium alloy grades used for titanium tubing are Alloy Ti 3AI/2.5V and Alloy Ti 6Al/4V.
