Customized Titanium Tubes Pipes Gr2 Gr5 Gr7 Gr9 Gr12 for Your Specific Requirements
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Titanium Tube and Titanium Pipe |
| Minimum Order Quantity | 10 kg |
| Price | USD 14.0/kg - USD 22.0/kg |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 60 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 Gr23 | Standard | ASTM B338 ASTM B861 |
|---|---|---|---|
| Applications | Oil, Marine, Petrochemical, Power Plant, Machining | Supply State | Annealed |
| Diameter | 3mm To 247mm | Certification | ISO9001:2015 |
| Advantages | Competitive Price, Short Lead Time And On-time Delivery | Inventory | Wide Scope In Stock |
| Key Word | Titanium Tube Leading Exporter | ||
| Highlight | Customized Titanium Tubes Pipes,Gr2 Titanium Tubes Pipes,Gr7 Titanium Tubes Pipes |
||
Product Description
Customized Titanium Tubes Pipes Gr2 Gr5 Gr7 Gr9 Gr12 for Your Specific Requirements

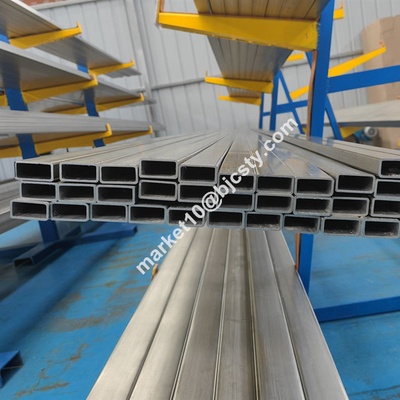

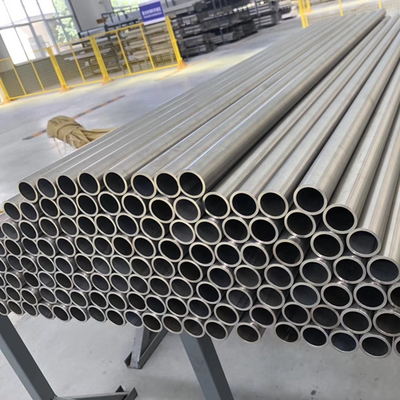

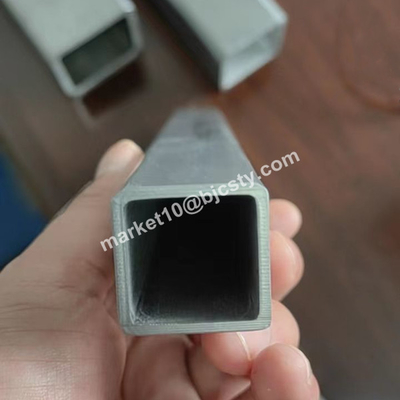

We offer the widest range of titanium tube and titanium pipe in Grade, dimensions and standards. Seamless Titanium Tube and Seamless Titanium Pipe dimension range is from a wall thickness as low as 0.5 mm and lengths up to 12000 mm by diameter of 3mm to 247mm. Besides round tubes, we also supply seamless square tubes and rectangular tubes. Contact us now for the latest in titanium tube prices and availability.
Titanium tube and titanium pipe are manufactured in compliant with international standards and specifications and under the highest level of quality control. Chemical composition, tensile strength, yield strength, elongation, and hardness are fully tested independently. At the same time, we can offer waterjet cutting, drilling, bending, bevel end finshing, welding and other services as per clients special requests.
Titanium Tube Production Capability
The tabulation below provides a summary overview to the production capability.
- Production standard: ASTM B338, ASME SB338, ASTM B861, ASME SB861
- Titanium Grades: Gr 1, 2, 3, 4, 5(6Al-4V), 7(Ti-0.15Pd), 9(3Al-2.5V), 12, 23(6AL-4V ELI),etc,.
- Titanium Tube Dimensions: Outside Diameter: 3mm – 247 mm, Length: 1000 – 12000 mm, Wall thickness: min. 0.5mm.
- Titanium Tube Surface Finishes: Pickling, Polished, Grinded, Sandblasted
- Services offered: Waterjet cutting, laser cutting, welding, shape cutting, drilling, bending, bevelling, etc,.
|
Material |
Types |
Specification |
Grades |
|
Titanium |
Seamless and Round Tubes
|
ASTM B338 ASTM B861 |
Gr1/Gr2/Gr4/Gr5/Gr7/Gr9/Gr11/Gr12/Gr16/Gr17/Gr23,etc,. |
|
|
Seamless and Square Tubes |
ASTM B861 |
Gr1/Gr2/Gr5/Gr9/Gr12 |
|
|
Seamless and Rectangular Tubes |
ASTM B861 |
Gr1/Gr2/Gr5/Gr9/Gr12 |
Mechanical Properties of of Titanium Pipe (Min.)
| Grade |
Alloy composition |
Tensile strength |
Yield strength |
Elongation % |
||
|
ksi |
Mpa |
ksi |
Mpa |
|||
|
GR1 |
Unalloyed Ti(Pure)35A-CP1 |
35 |
240 |
25 |
170 |
24 |
|
GR2 |
Unalloyed Ti(Pure)50A-CP2 |
50 |
345 |
40 |
275 |
20 |
|
GR4 |
Unalloyed Ti(Pure)80A-CP4 |
80 |
550 |
70 |
483 |
15 |
|
GR5 |
Ti 6Al 4V |
130 |
895 |
120 |
828 |
10 |
|
GR7 |
Ti-Pd |
50 |
345 |
40 |
275 |
20 |
|
GR9 |
Ti 3AI 2.5V |
90 |
620 |
70 |
483 |
15F |
|
GR12 |
Ti-0.3Mo-0.8Ni |
70 |
483 |
50 |
345 |
18 |
Titanium tube and titanium pipe offer a combination of high strength, light weight, formability and corrosion resistance which have made it a most common used high temprature metal material for chemical processing, oil&gas, shipbuilding, aerospace industry, power plants, marine engineering, seawater desalination, sewage treatment, electroplating, metallury, metal fabricating industries.
Due to customization, please contact us for satisfying your individualized requirement!
Titanium Tube and Pipe Appliactions
Titanium tube is widely used in heat exchangers and reaction towers in the petrochemical industry, they are also used extensively in wet chlorine coolers, ion exchange membrane electrolyzers, dechlorination towers and chlorine cooling scrubbers, automobile industry, paper pulp production, fertilizer production, fiber production, and in electrochemical and desalination processing. Titanium pipes are also widely used as cooling pipes, titanium is used for external cooling, pumps and heat exchangers. Thanks to its excellent corrosion resistance but also because of the heat transfer efficiency.
Titanium Metal Products Characteristics
Titanum tube is used in a wide range of applications. It can be found in applications needing the very blending of weight and strength and harsh environment. Titanium tube and pipe characteristics can be summed up by:
- Ti tube has an excellent corrosion resistance properties;
- Ti tube has a low density and light weight;
- Ti tube and pipe have high strength;
- Titanium has high / low temperature resistance and excellent for use in extreme conditions;
- Titanium is non-mangnetic, non-toxic;
- Titanium is recyclable, environmentally friendly.

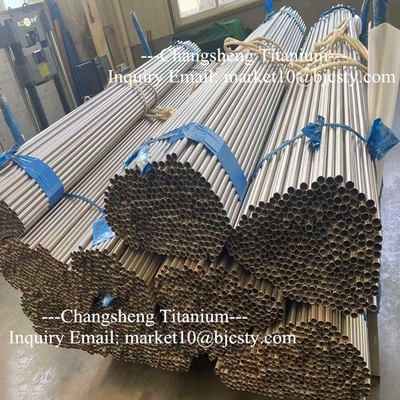

Titanium Tube Workshop
Tags: Titanium Tube Supplier, Titanium Alloy Pipe, Heat Exchanger Titanium Tubing
