High Pressure Heat Exchange Coil Gr2 Titanium Tubing Coils Oil Boiler
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Heat Exchange Coil Gr2 Titanium |
| Minimum Order Quantity | 1 piece |
| Price | USD 45.0/pc - USD 190/pc |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keywords | High Pressure Heat Exchange Coil | Material | Titanium Tube |
|---|---|---|---|
| Specification | Custom, By Drawings | Tube Wall Thickness Of Tubes | 0.5mm To 10mm |
| Surface | Acid Washing/Pickling Surface | Coil Shape | Helical Coils,U-Shape,Tube In Tube Coils, Serpertine Coils,etc. |
| Standard | ASTM B338, ASTM B337, ASTM B861, ASTM B862 | Application | Thermal Oil Heater, Boiler, Furnace, Evaporator, Condenser, Reactor |
| Origin | Baoji City, China | Sample | Bespoke Samples As Client's Request |
| Highlight | Oil Boiler Titanium Coil Tubing,High Pressure Titanium Coil Tubing,Gr2 Titanium Heat Exchange Coil |
||
Product Description

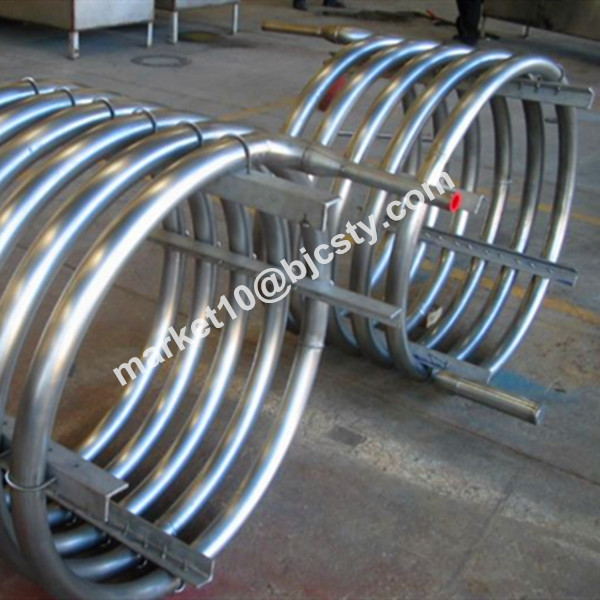

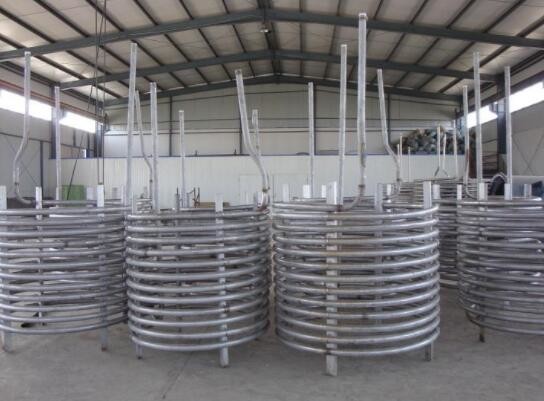

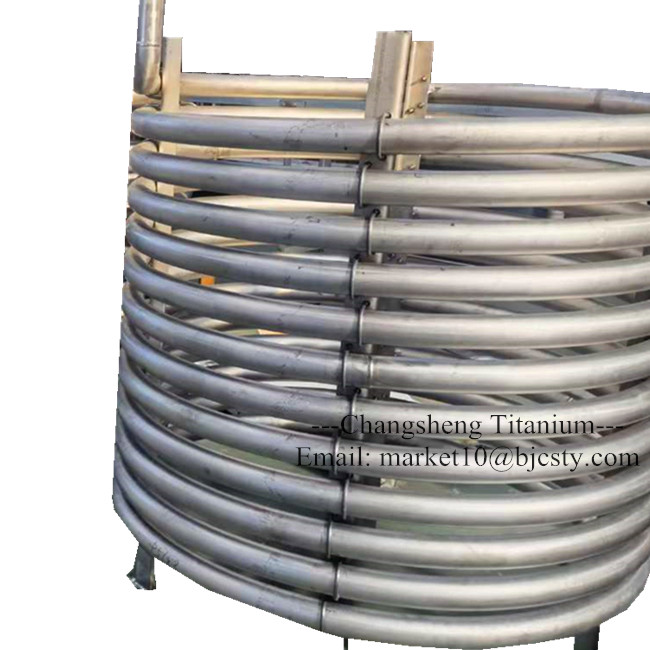

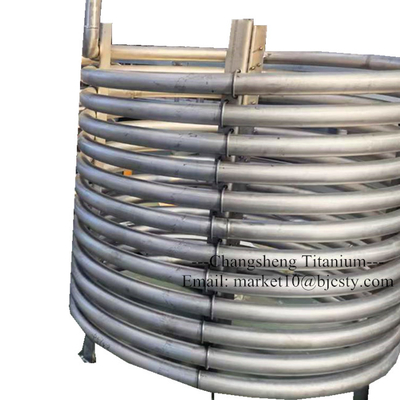

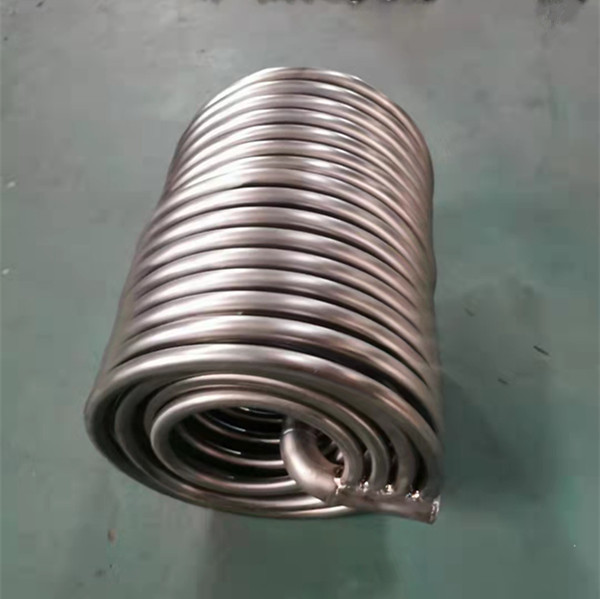

High Pressure Heat Exchange Coil Gr2 Titanium Tubing Coils Oil Boiler
As the core component of evaporation and condensation equipments such as high pressure ammonia synthesis and high pressure bioler,
high pressure heat exchange titanium coil compared with stainless steel tube coil are based on it's light weight and corrosion resistance properties of titanium metal matetial tubes. Titanium has a density of only 4.51, which is smaller than steel and only half the weight of steel.The corrosion resistance of titanium is quite good. Therefore, titanium tubing coils is more suitable for the use in seawater desalination, chemical acid and alkali, and nuclear power equipment than stainless steel pipe, titanium coil tubing is used a lot in the reactor and oil boiler as heat exchange element. We can fabricate custom titanium coils upon clients drawings.
Gr2 Titanium Tubing Coils Specifications:
Specifications: custom coils, bespoke coils, can be fabricated by drawings
Tube Wall thickness: 0.5mm to 10mm
Length: 15m or more or less
Joint: Threaded, flanges, or as request
Temperature range: -50°C to 200°C
Working pressure: 5.0Mpa
Aplications: Reactor, water tank, oil tank, boiler, heater, furnace, condenser, evaporator, heat exchanger unit, electroplating chiller, marine & reef tanks, absorption type refrigerator, swimming pool heat exchangers, turbo refrigerator and screw refrigerators, distillation facility with multiple effects etc.
Titanium Tubing Coil Quality Control:
Major parts material chemical compostion analysis
Major parts material mechanical properties analysis
Hydrostatic testing
Penetrant testing(PT testing)
Titanium Coils Applications:
Oil and Gas Industry--Power Plant Industry--Marine Industry--Seawater desalination industry--Plating and anodizing industry--Chemical and petrochemical industry--Pulp and paper industry--Pharmaceutical--Textile and dyeing industry--Metallurgy indurstry--Power generation-- chlor-alkali industry--Salt production industry--Nuclear industry
Mechanical Properties of Titanium Metal
|
ASTM Grade
|
Alloy composition | Tensile strength | Yield strength | Elongation % | ||
| ksi | Mpa | ksi | Mpa | |||
|
GR1
|
Unallyed Ti(Pure)35A-CP1 | 35 | 240 | 25 | 170 | 24 |
| GR2 | Unallyed Ti(Pure)50A-CP2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10 |
| GR9 | Ti 3AI 2.5V | 90 | 620 | 70 | 483 | 15 |
Except anti-corrosion resistance and light weight of titanium coils, titanium coils also can withstand high temperature and low temperature working conditions, also titanium tube coil is nonmagnetic, no rusting, maintain it's super silver-grey with a metallic shine metal color. Titanium coils can help save the workforce, reduce labor intensity, and reduce maintaining costs, prolong the equipments serving life.
Welcome to contact us and send us your inquiry.
Tags: High pressure titanium coils, Gr2 titanium coils, Oil boiler titanium coil
