Energy Saving Pure Titanium Heat Exchanger Coils For Swimming Pool
| Place of Origin | Shaanxi, China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Titanium coil |
| Minimum Order Quantity | 1 piece |
| Price | USD 45.0/pc - USD 190/pc |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Pure Titanium Gr1 Gr2 | Tube Diameter | 3mm To 114mm |
|---|---|---|---|
| Tube Wall Thickness | 0.5mm To 6.0mm | Surface | Polished Surface Or Acid Washing Surface |
| Shape | Helical Coils,U-Shape,Tube In Tube Coils, Serpertine Coils,etc. | Type | Seamless Titanium Tubes, Titanium Welded Pipes |
| Standard | ASTM B338, ASTM B337, ASTM B861, ASTM B862 | Applications | Pool /heat Pump/ Air Conditioner/chillers Etc |
| Highlight | ASTM B338 Titanium Coil Tubing,80mm Titanium Coil Tubing,Gr1 coil tubing pipe |
||
Product Description

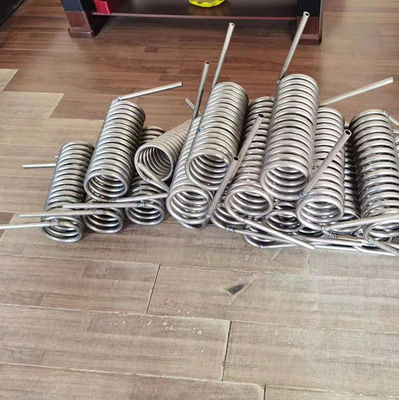

Energy Saving Pure Titanium Heat Exchanger Coils For Swimming Pool
Titanium coils are widely used as heating components in swimming pool heat exchanger. The size and shape of titanium coil could be customed as per client's special request.
Tubing material: Pure titanium Gr1 Gr2
Outside diameter: 3mm to 114mm
Wall Thickness: 0.5mm to 6.0mm
Length: 15m more or less
Temperature range: - 50°C -200°C
Types of Titanium Heat Exchanger Coils:
Helical coils
Tube in tube coils
Serpentine coils
Zigzag coils
Box coils
...
Due to customization, please contact us for satisfying your individualized requirement!
Characteristics of Titanium Heat Exchanger Coils:
1) excellent corrosion resistance in many media, the wall can be more thinner than other materials,
thus improve the heat transfer effect.
2) smooth surface, no dirt layer, dirt coefficient greatly reduced.
3) low density, high strength, small volume and weight.
4) High heat exchanging efficiency, energy saving.
5) Long-life service.
6) It is non-magnetic, non-toxic.
Application of Titanium Heat Exchanger Coils:
Titanium heat exchanger is widely used in seafood breeding, sea water heat exchange, salt water heat exchange,
marine engineering chemical industry, metallurgy, refrigeration, light industry, electroplating industry,
aluminum oxidation tank, salt making, paper making, ultrasonic, electronic communication, central heating
and other industries and fields.
Mechanical Properties of of Titanium Heat Exchanger Coils:
| Grade | Density | Melting Point | Yield Strength(0.2%Offset) | Tensile Strength | Elongation |
| Gr.2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 345 | 20 % |
|
ASTM Grade
|
Alloy composition
|
Tensile strength
|
Yield strength
|
Elongation %
|
||
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|||
|
GR1
|
Unallyed Ti(Pure)35A-CP1
|
35
|
240
|
25
|
170
|
24
|
|
GR2
|
Unallyed Ti(Pure)50A-CP2
|
50
|
345
|
40
|
275
|
20
|
|
GR5
|
Ti 6Al 4V
|
130
|
895
|
120
|
828
|
10
|
|
GR9
|
Ti 3AI 2.5V
|
90
|
620
|
70
|
483
|
15F
|
Industrial Applications of of Titanium Heat Exchanger Coils:
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Seawater desalination industry
Plating and anodizing industry
Chemical and petrochemical industry
Pulp and paper industry
Medical industry
Nuclear industry
Chemical and petrochemical industry
Pulp and paper industry
Medical industry
Nuclear industry
Company Information:
Baoji City Changsheng Titanium Co.,Ltd. is located in Baoji City which is know as the"Titanium City".
Our factory was established in 2001.We focused on processing and sales of titanium and titanium
alloy (including titanium bar,titanium tubes,titanium sheet, titanium wire, titanium anode and titanium
casting,ect), The product is widely applied in chemical industry, metallurgy, petroleum, textile, medicine,
light industry, environmental protection, sports, mine,ocean and other fields. Our products have been
used in China over 15 years and exported to overseas had been steadily increased in North America,
Europe,Africa,South America,Middle East and Asia,etc.
RFQ:
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM B338 / ASME SB338 or other you asked.
3. Can you provide samples? Is there a charge?
Titanium coil sample can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
Tags: Titanium heat exchanger coils, Swimming pool heater coil, gr2 titanium coils
