Titanium Heating and Cooling Coils Titanium Coil Tubing for Oil Heat Exchanger Tank Fabrication
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001：2015 |
| Model Number | Titanium Coil Tubing |
| Minimum Order Quantity | 1 piece |
| Price | USD 45.0/pc - USD 190/pc |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Identification | Heat Exchange Element | Keywords | Titanium Heating And Cooling Coils |
|---|---|---|---|
| Material | Pure Titanium Gr2 | Tubing Outside Diameter | 9.52mm To 80mm |
| Wall Thickness | 0.5mm To 10mm | Surface | Acid Washing Surface |
| Shape | Helical Coils,U-Shape,Tube In Tube Coils, Serpertine Coils,etc. | Type | Seamless Titanium Tubes, Titanium Welded Pipes |
| Standard | ASTM B338, ASTM B337, ASTM B861, ASTM B862 | Application | Cryogenic Vessel, Heat Exchanger, Medical Device, Etc. |
| Highlight | Heating Coils Titanium Coil Tubing,Cooling Coils Titanium Coil Tubing |
||
Product Description
Titanium Heating and Cooling Coils Titanium Coil Tubing for Oil Heat Exchanger Tank Fabrication
Changsheng Titanium Company has long been a realiable supplier of the highest quality titanium. We offer our clients a wide variety of titanium in a number of different forms. We have titanium pipe/tube production line, could supply titanium pipes/tubes quickly and reliably with competitive price. We can manufacture customized seamless and welded titanium pipes and tubes according to the specifications provided by clients.
Detailed Information of Titanium Coil Tubing:
Outside diameter: 9.52mm to 80.00mm
Wall Thickness: 0.5mm to 4.5mm
Length: 15m more or less
Temperature range: - 50°C -200°C
Working pressure: 5.0Mpa
Applications: Water tank, oil tank, boiler, condenser, evaporator, heat exchanger unit,
absorption type refrigerator, turbo refrigerator and screw refrigerators;distillation facility
with multiple effects etc.

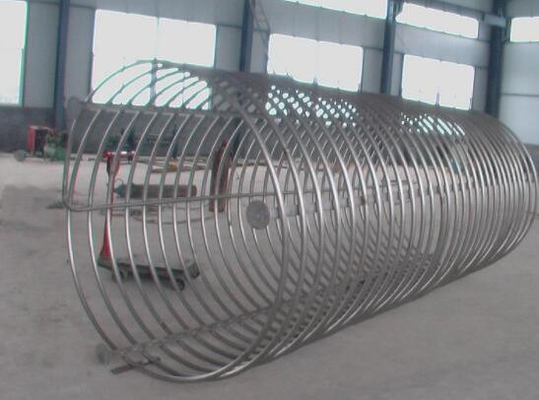

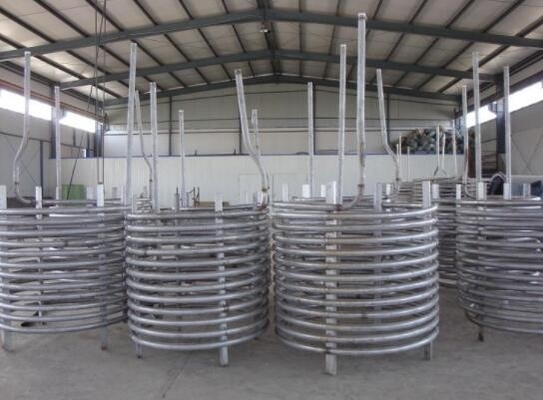

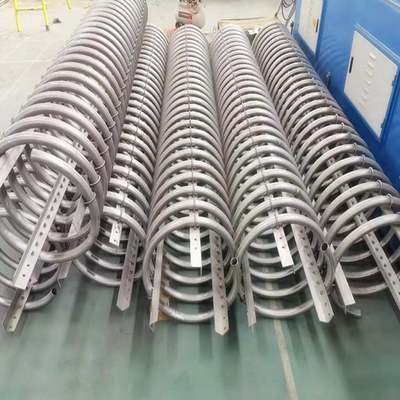

Types of Titanium Coil Tubing:
Helical coils
Tube in tube coils
Serpentine coils
Zigzag coils
Box coils
...
Mechanical Properties of Titanium Coil Tubing:
|
ASTM Grade
|
Alloy composition
|
Tensile strength
|
Yield strength
|
Elongation %
|
||
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|||
|
GR1
|
Unallyed Ti(Pure)35A-CP1
|
35
|
240
|
25
|
170
|
24
|
|
GR2
|
Unallyed Ti(Pure)50A-CP2
|
50
|
345
|
40
|
275
|
20
|
|
GR5
|
Ti 6Al 4V
|
130
|
895
|
120
|
828
|
10
|
|
GR9
|
Ti 3AI 2.5V
|
90
|
620
|
70
|
483
|
15F
|
Industrial Applications of Titanium Coil Tubing:
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Seawater desalination industry
Plating and anodizing industry
Chemical and petrochemical industry
Pulp and paper industry
Medical industry
Nuclear industry
Chemical and petrochemical industry
Pulp and paper industry
Medical industry
Nuclear industry
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.
Titanium coil is mainly used in titanium heat exchanger equipments to heat or cool the medium in the pipeline. Titanium coils are used in a variety of applications: Electroplating Tanks – Marine & Reef Tanks – Distilling – Waste Water Treatment – Chemical reactor and more!
Tags: Titanium cooling coils, Titanium heating coils, Oil heat exchanger tank coils
