Titanium Coil Tubing Evaporator Coil Heat Exchanger Seawater Desalination
| Place of Origin | CHINA |
|---|---|
| Brand Name | CSTY |
| Certification | ISO9001:2015 |
| Model Number | Pure Titanium Gr1 Gr2 |
| Minimum Order Quantity | 10kgs |
| Price | $35.00 - $125.00/ kg |
| Packaging Details | film and wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Titanium Tube Size | OD9.52/12.7/16/19.05/25.4/38.1mm,etc. | Surface Finish | Polished |
|---|---|---|---|
| Product | Welded Titanium Spiral Tube | Wall Thickness | 0.5mm To 10mm |
| Item | Titanium Serpentine Heating Tube Coils | Tube Diameter | 8mm To 114mm |
| Material | Titanium | Operating Temperature | High |
| Type | Welded Titanium Tube Coils | Coil Diameter | 9.52mm To 80mm |
| Operating Pressure | High | Surface | Acid Washing Surface |
| Corrosion Resistance | Excellent | Size | Customized |
| Coils Surface | Acid Washing Surface | ||
| Highlight | Titanium Tubing Coil Evaporator Coil,Heat Exchanger Titanium Coil Tubing,Pure Titanium Coil Evaporator Coil |
||
Product Description
Description

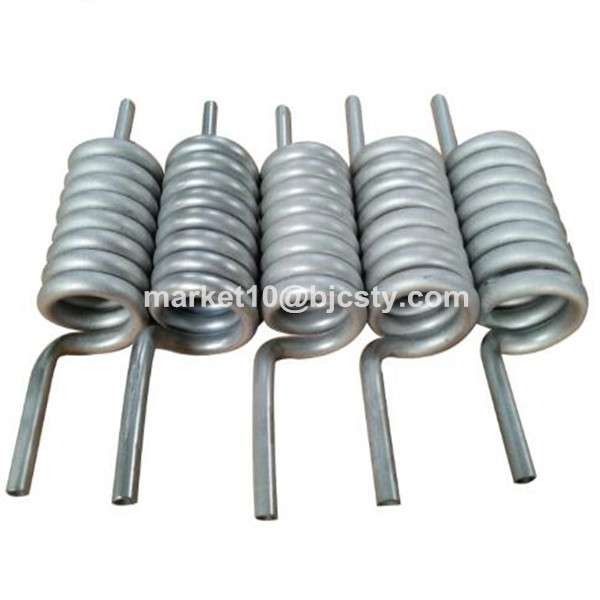

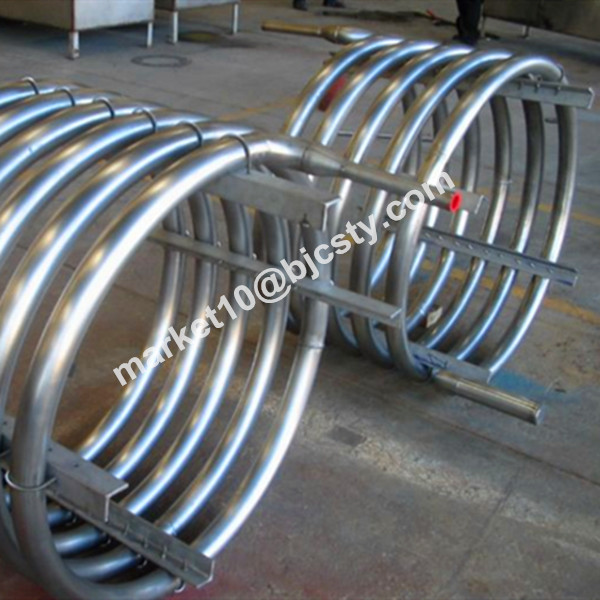

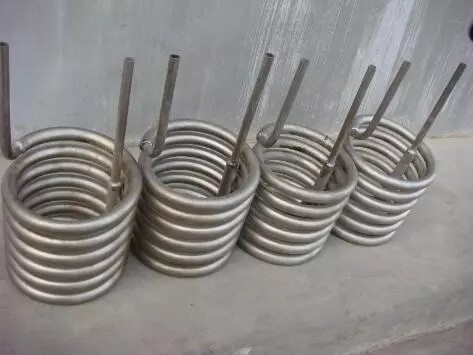

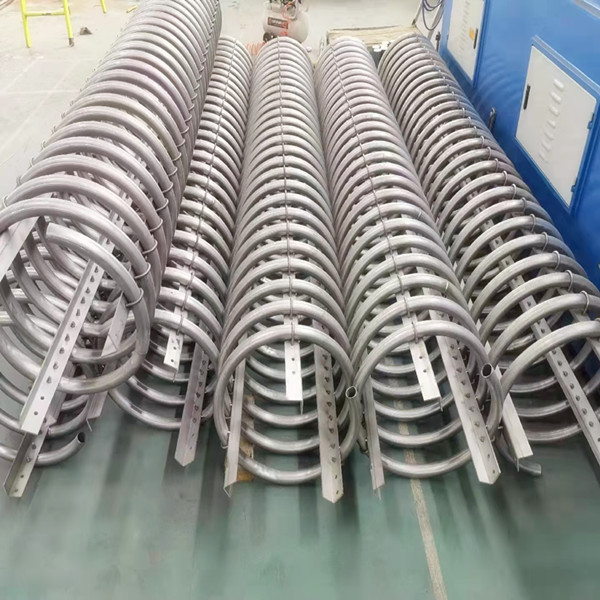

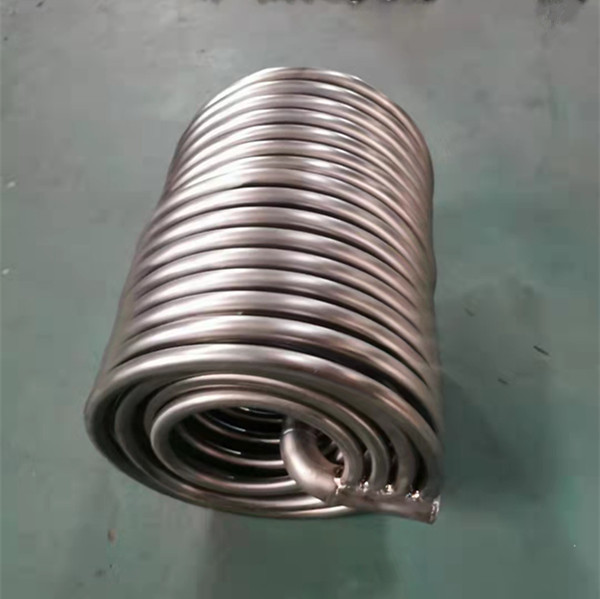

Titanium tube coils are commonly used in heat exchangers that require excellent corrosion resistance and high thermal conductivity. The coils are made from long, continuous titanium tubing wound into a spiral or helical shape to form the coil body.
Manufactured in accordance with ASTM B338 / ASME SB-338, titanium tube coils are extensively applied in the fabrication of tubular heat exchangers — including double-pipe, shell-and-tube, and coiled-tube designs. Among these, the coiled-tube heat exchanger is currently the most widely used in petrochemical production due to its compact design and superior heat transfer performance.
Specification
| Item | Description |
|---|---|
| Product Name | Titanium Tube Coil |
| Material Grades | TA1 (Gr1, BT1-00), TA2 (Gr2, BT1-0), TA9 (Gr7), TA10 (Gr12) |
| Coil Diameter | Outer Diameter (OD): φ200 – 3000 mm |
| Tube Size | OD 9.52×0.6 / 12.7×0.9 / 16×0.9 / 19.7×1 / 25×2 mm (seamless or welded) |
| Other Components | Channels (heads), tube sheets, baffles, tie rods & spacers, pass partition plates, and expansion joints (when required) |
| Minimum Order Quantity (MOQ) | 1 set |
| Working Conditions | Refrigerant side (in tube): R22, R134a, R407C, R410A, etc. Water side (in tank): Natural water, drinking water, seawater, etc. |
| Applications | Chemical industry, petroleum, metallurgy, power generation, seawater desalination, and more |
Main Components
-
Titanium Tubing
The core element of the coil, made from high-purity titanium for exceptional corrosion resistance, mechanical strength, and heat transfer performance. -
Header
Distributes and collects fluids entering and exiting the coil. Commonly fabricated from stainless steel or titanium to resist pressure and corrosion. -
Tube Sheet
Provides mechanical support and sealing between tubes and headers. Usually made from stainless steel or titanium for durability. -
Baffles
Guide the fluid flow within the shell side to increase turbulence and enhance heat transfer efficiency. -
Support Structure
Maintains the coil’s position, preventing vibration or movement during operation. Constructed from steel or aluminiu,m depending on design requirements. -
Fittings and Connections
Connect the coil to headers and piping systems. Made from stainless steel or titanium to ensure reliable, corrosion-resistant connections.
Features and Advantages
Excellent resistance to corrosion in seawater, chlorides, and chemical media
High thermal conductivity for efficient heat exchange
Lightweight structure with high mechanical strength
Long service life and low maintenance cost
Suitable for harsh environments such as marine and chemical applications
Applications
Titanium tube coils are widely used in:
Chemical and petrochemical processing
Power generation (steam condensers and coolers)
Seawater desalination systems
Marine engineering
Metallurgy and electroplating
Food and pharmaceutical industries
Aerospace and medical equipment cooling systems
They are also used in the production of titanium powder, glycine, pesticides, fuel additives, and various chemical intermediates such as cyanuric acid and tricyanuric acid.
