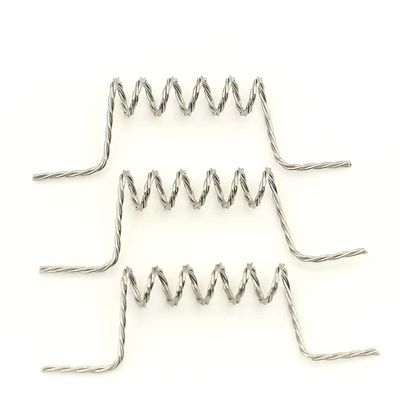

0.8*120mm 99.95% Tungsten Wire Stranded Filament Twisted Wire Heater Elements
| Place of Origin | CHINA |
|---|---|
| Brand Name | CSTY |
| Certification | ISO9001:2015 |
| Model Number | W1 W2 |
| Minimum Order Quantity | 1 kg |
| Price | $72 - $89/ Piece |
| Packaging Details | film and wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | Customizable | Applications | Used In Electronics, Aerospace, And Defense Industries |
|---|---|---|---|
| Wire Quantity | 2-4pcs | Feature | Good Thermal Conductivity |
| Heat Conductivity | 0.13 W/mK | Service | OEM/ODM |
| Use Temperature | 1600-1800℃ | Packagaing | Standard Wooden Case |
| Payment Term | T/T, L/C, Etc. | Atomic Number | 74 |
| Meltiing Point | 3410℃ | Pirity | 99.95%Min |
| Place | Henan, China | Size | Various Sizes Available |
| Electric Condctivity | 30% IACS Min | ||
| Highlight | Tungsten Twisted Wire Heater Elements,Stranded Filament Tungsten Wire,Tungsten Wire Heater Elements |
||
Product Description
Introduction
Tungsten stranded wire is a high-performance thin wire made of tungsten, known for its extremely high melting point. It is widely used in applications requiring high-temperature resistance.
Tungsten skein comes in two types:
Single-crystal tungsten skein: Suitable for applications requiring high sharpness, such as electron sources in electron microscopy.
Polycrystalline tungsten skein: Ideal for high-power electrical applications, including electric heaters and lamps.
Specification
| Product Name | Tungsten Stranded Wire |
|---|---|
| Purity | 99.95% |
| Density | 19.3 g/cm³ |
| Melting Point | 3410℃ |
| Boiling Point | 5927℃ |
| Shape | Straight |
| Surface | Hot working surface |
| MOQ | 2 kg |
| Applications | Filament, electrode, semiconductor heater components |
Applications
-
Electric Heating Devices
Used as heating elements in ovens, furnaces, and electric heating tubes. Tungsten wire’s high temperature tolerance, high strength, and corrosion resistance allow it to operate stably in extreme environments. -
Lamps
A core component in light bulbs, tungsten skein provides stable illumination due to its high strength, high temperature, and corrosion resistance. -
Vacuum Devices
Used in electron tubes and other vacuum technologies for its low resistance, high evaporation temperature, and long service life. -
Other Applications
Widely used in rocket engine nozzles, superalloy processing, fiber processing, and other high-temperature, high-strength, corrosion-resistant applications.
Advantages
-
Excellent High-Temperature Resistance
Melting point of 3422℃, suitable for extreme environments. -
High Strength
High-quality tungsten material ensures excellent mechanical strength for demanding applications. -
Corrosion Resistance
Performs reliably in various acidic and alkaline environments. -
Long Service Life
Maintains stable operation in extreme conditions over prolonged periods.
