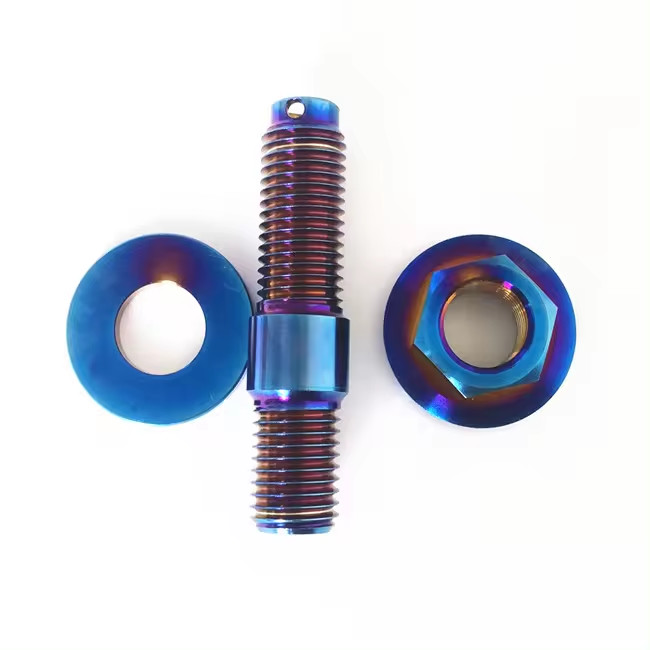

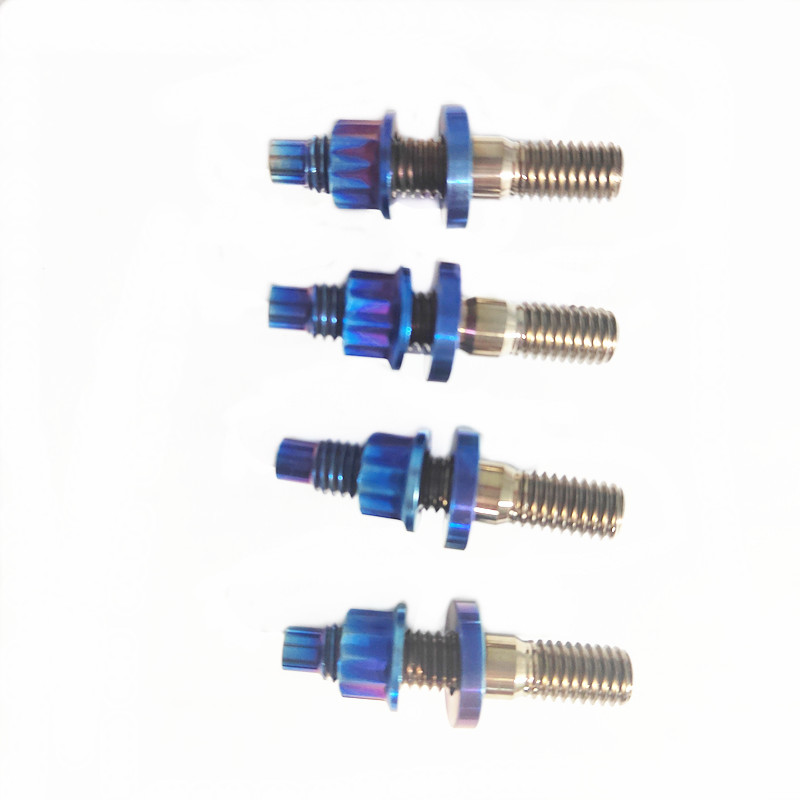

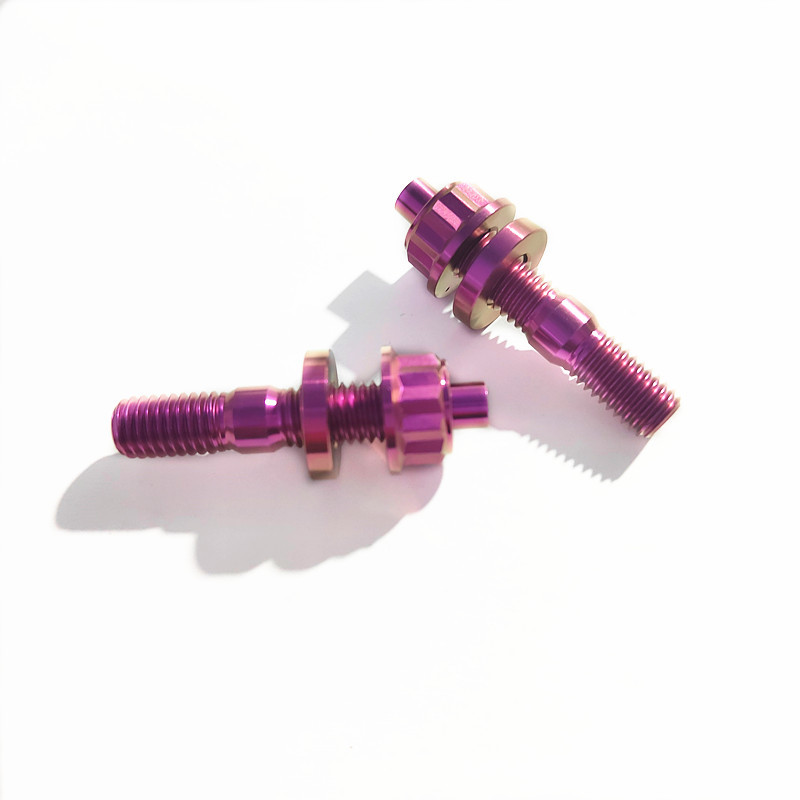

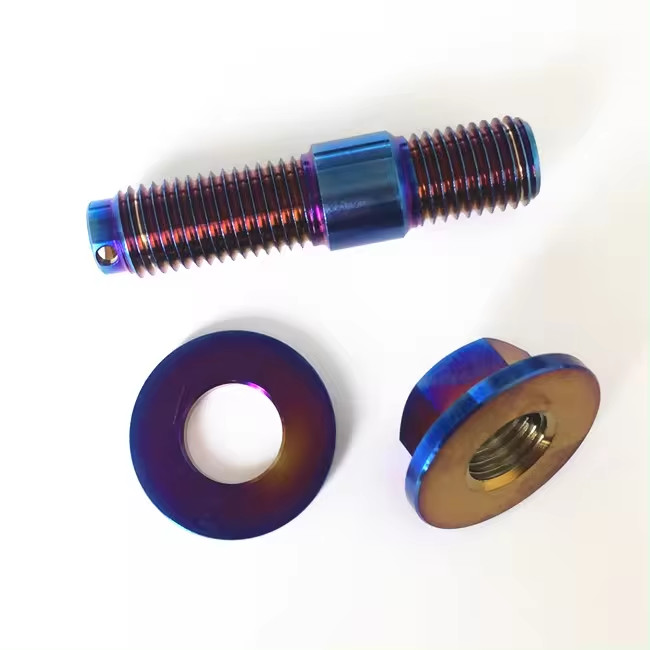

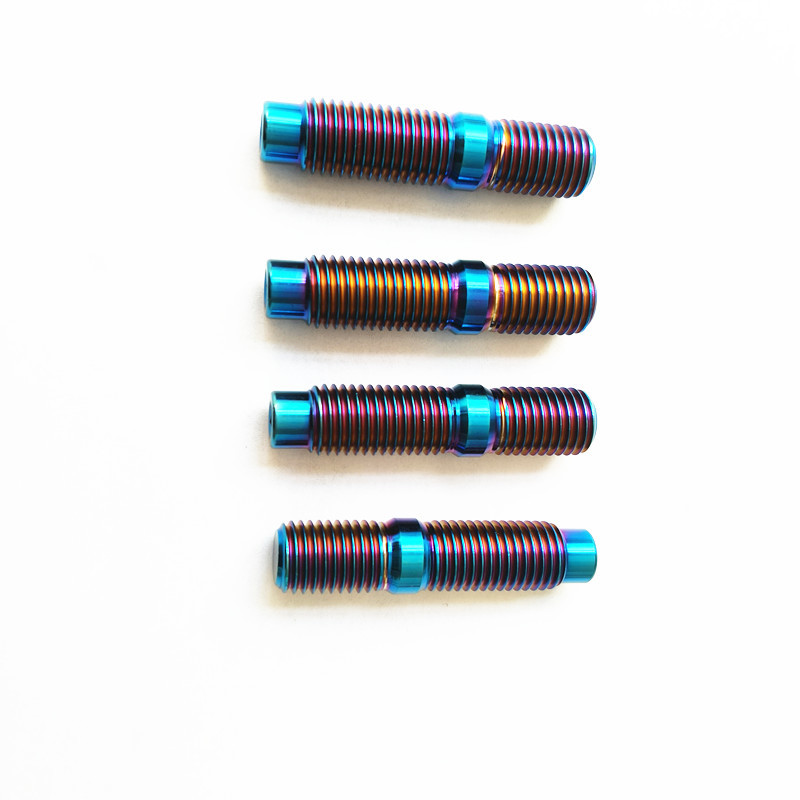

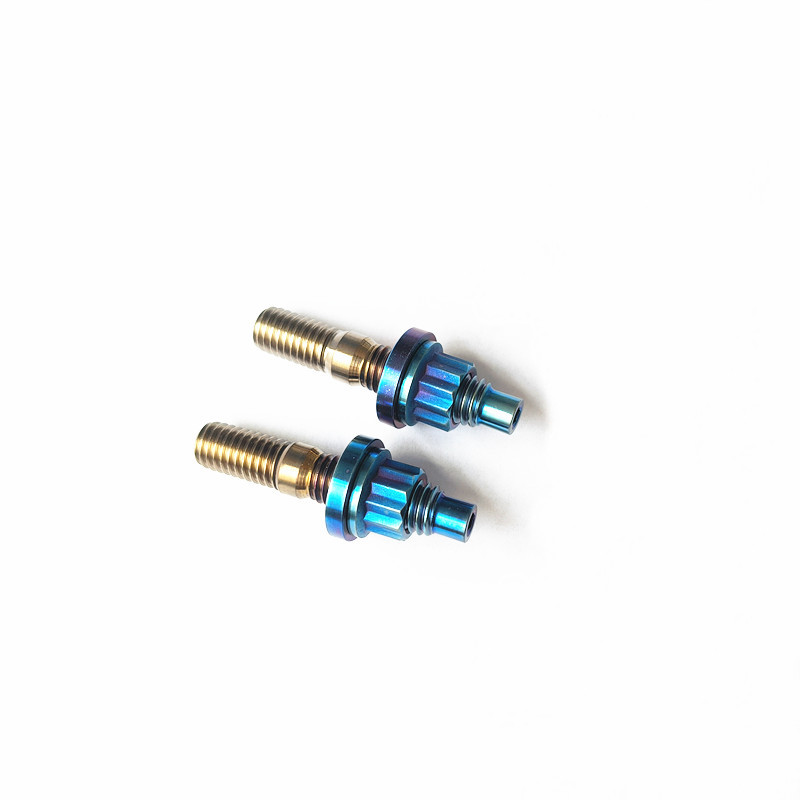

Titanium Stud Kits Wheel Bolts M10x45mm M12x54mm For Automobile Racing
| Place of Origin | CHINA |
|---|---|
| Brand Name | CSTY |
| Certification | ISO9001:2015 |
| Model Number | Gr5 |
| Minimum Order Quantity | 100pcs |
| Price | 2.80/set-5.90/set |
| Packaging Details | film and wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 15~20 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 100000 pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Precision | 0.02mm | Surface | Polished, Pickling |
|---|---|---|---|
| Material | Titanium | Origin | Baoji, Shaanxi, China |
| Warranty | 5years | Powder Or Not | Not Powder |
| Head Type | Flanged Head | Strength | Stronger Than Steel |
| Pitch | 1.0, 1.25, 1.5, 2.0 | Technical | Forge,welding |
| Lead Time | 15days | Corrosion Resistance | High |
| Standard | All Standard And Accept Customized | Use | Connection Pipe And Machine Equipment |
| Total Length | 46-63.05mm | ||
| Highlight | Automobile Racing Titanium Stud Kits,M10x45mm Titanium Stud Kits,M12x54mm Titanium Stud Kits |
||
Product Description
Introduction
Titanium alloys have the advantages of light weight, high specific strength, and excellent corrosion resistance, making them widely used in the automotive industry. Titanium alloy bolts are most commonly used in automotive engine systems due to their strength and reliability.
Because of their superior performance, titanium bolts are also extensively applied across various other industries.
Specification
| Item | Description |
|---|---|
| Product Name | Titanium Fasteners / Hardware |
| Material | Pure Titanium, Titanium Alloy |
| Grade | Gr5 (Ti-6Al-4V) / Gr2 / Gr7 / Gr9 |
| Size Range | M3–M50, Length 6–300 mm (non-standard and special sizes available upon request) |
| Surface Treatment | Polished, Anodized, or PVD Coated |
| Color Options | Black, Gray, White, Yellow, Red, etc. |
| Logo | Customizable according to customer requirements |
| Applications | Airplane, Ship, Bicycle, Motorcycle, Automobile, Medical Equipment, Chemical Industry, Wheelchair, Sports Gear, Anchors, Weapons, etc. |
Mechanical Properties
| Property | Specification |
|---|---|
| Thread Type | Rolled thread for better fatigue resistance and prevention of galling (instead of cut thread) |
| Tensile Strength | Heat-treated to 895–1000 MPa |
| Yield Strength | 828–925 MPa (126,000–134,000 psi) |
| Hardness | 30–40 HRC |
| Shear Strength | 500–550 MPa |
| Elongation | 14–18% |
| Working Temperature | Up to 500°C |
Applications
-
Aerospace Industry
Titanium fasteners are used in aircraft engine assemblies, fuselages, and seat structures thanks to their high strength-to-weight ratio and corrosion resistance. -
Medical Industry
Due to their excellent biocompatibility and non-allergenic nature, titanium screws are ideal for implants, bone fixation devices, and other medical applications. -
Sports Equipment
Lightweight and durable, titanium fasteners are used in high-end sporting goods such as bicycles, golf clubs, and racing gear. -
Electronics Industry
Titanium screws are employed in mobile phones, tablets, and other electronics that demand strength, corrosion resistance, and lightweight materials.
