Corrosion Resistant Titanium Alloy Fittings Titanium Tee Pipeline
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mechanical Strength | 40,000-65,000 Psi | Temperature Rating | -425°F To 1000°F |
|---|---|---|---|
| Technique | Forging, Rolling, Annealing, Pickling | Technics | Forged |
| Strength | High | High Temperature Resistance | Yes |
| Connection | Welding | Others Elbow | 45E(L) 45E(S) 180E(L) 180E(S) |
| Quality Control | The X-ray Detection (RT) | Production Standards | USA - ASTM B363; Europe - EN 10253 |
| Color | Light Silver Grey | Center To End | 38-610mm |
| Dimensions | DN10-DN1000 | Wall Thickness | SCH5-SCH160 |
| Technical | Welded And Seamless | ||
| Highlight | Pipeline Titanium Alloy Fittings,Pipeline Titanium Tee,Corrosion Resistant Titanium Alloy Fittings |
||
Product Description
Description

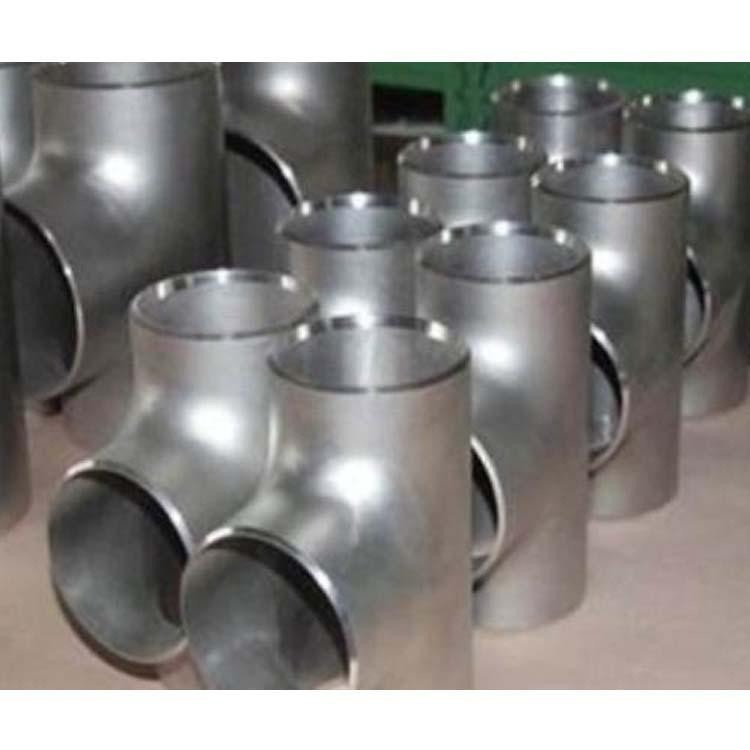

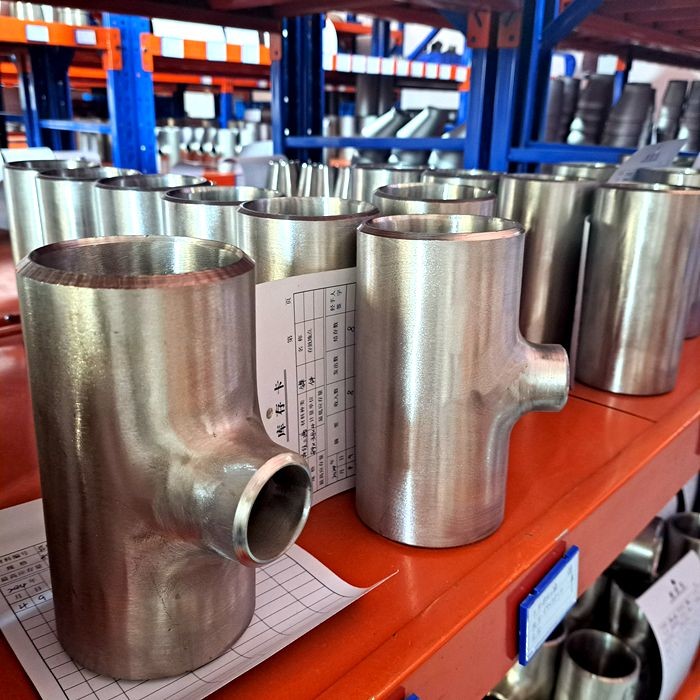

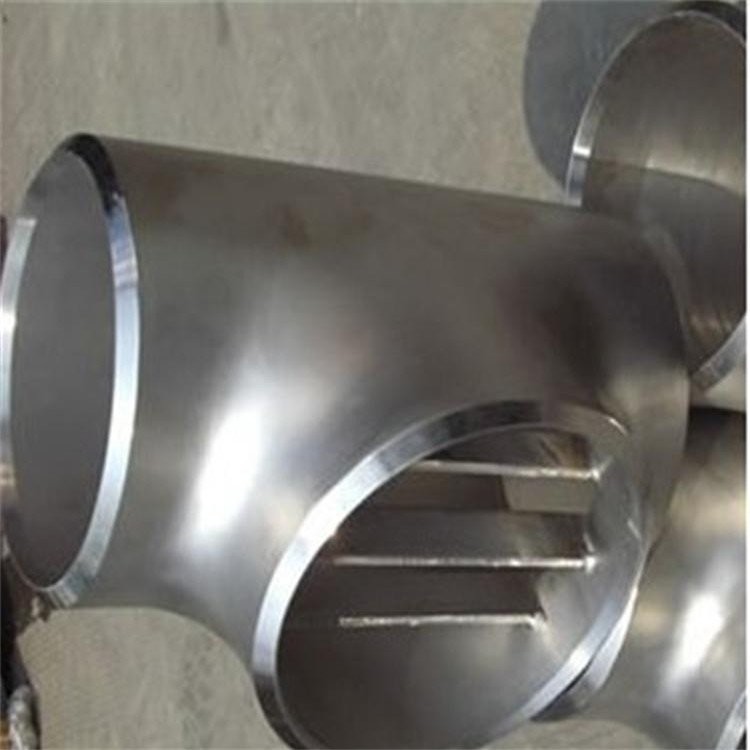

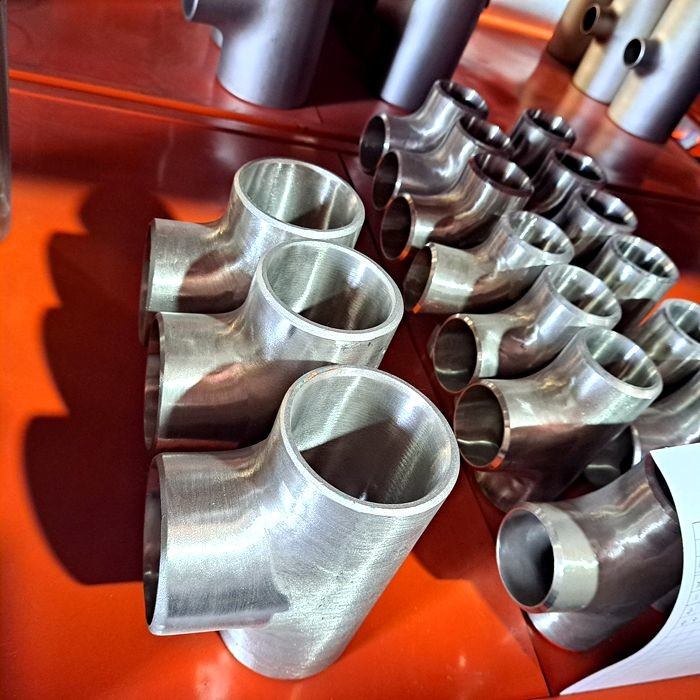

Titanium tees are pipe fittings made from pure titanium or titanium alloys, commonly used to branch pipelines or change the flow direction of fluids.
Small-scale tees are typically manufactured using hydraulic expansion or hot extrusion processes, ensuring high dimensional accuracy and excellent mechanical properties.
Due to titanium’s lightweight, high strength, and excellent corrosion resistance, these tees are widely applied in petroleum, chemical, gas, power, metallurgy, pharmaceutical, shipbuilding, and construction industries.
Specification
| Item | Description |
|---|---|
| Product Name | Titanium Tee |
| Type | Equal (Straight) Tee / Reducing Tee |
| Material Grade | Gr1, Gr2, Gr5, Gr7, Gr11, Gr12, N4, N5, N6 NO2200, NO2201, MONEL 400, INCONEL 600, ZR702 |
| Outer Diameter | DN15–1200 (NPS 1/2"–48") |
| Wall Thickness | 2 mm–30 mm (SCH5S–SCH160) |
| Standards | ASME B16.9–2007, MSS SP 43–1991, MSS SP 75–2008 |
| Manufacturing Technique | Seamless Extrusion, Butt-Welded Seamless |
| Surface Finish | Sand Blasting, Polishing |
| Quality Control | 100% X-ray Inspection or Dye Penetrant Test |
| Applications | Petrochemical, Gas, Power, Valve, Waterworks, Shipbuilding, Construction, and related industries |
Advantages
-
High strength-to-weight ratio
-
Excellent corrosion resistance
-
Suitable for high and low temperature applications
-
Lightweight yet durable
-
Non-toxic and non-magnetic
-
Long service life with minimal maintenance
-
High-dimensional accuracy and mechanical stability
Applications
Branching or changing fluid direction in piping systems
Chemical, petrochemical, and gas plants
Power generation facilities
Valve systems and waterworks
Shipbuilding and marine piping systems
Industrial construction projects
