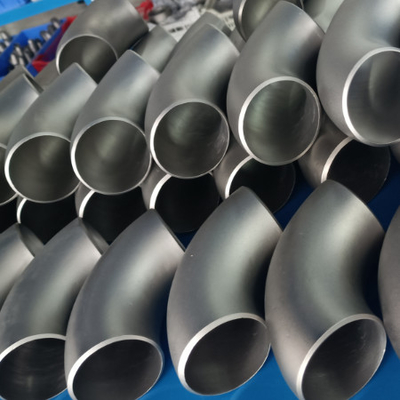

factory Gr2 titanium BW Elbow and titanium pipe fittings LR and SR 15-1200mm
Place of Origin | China Baoji |
---|---|
Brand Name | CSTY |
Certification | ISO9001 |
Model Number | 180E(R) 180E(S) |
Minimum Order Quantity | 1pcs |
Price | 10-300USD/Pc |
Packaging Details | Caroton Boxes or Export Wood Case Or As Client Requried |
Delivery Time | 15-30days |
Payment Terms | T/T, L/C or Negotiation |
Supply Ability | 10000Pcs per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Titanium Gr1 Gr2 Gr5 | DN | 15-1200 Or As Your Requried |
---|---|---|---|
Wall Thickness | SCH5S-SHC160S Or As Your Requried | Surface | Acid Picking /Sand Blast |
Others Name | Butt-welding Elbows Or Returns | R | 1.5DN /1.0DN |
Highlight | 1200mm Titanium Pipe Fittings,15mm Titanium Pipe Fittings,Gr5 Butt welding elbow |

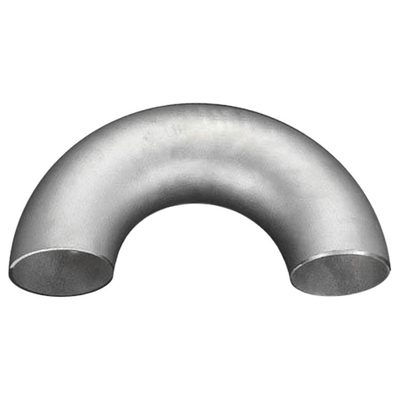

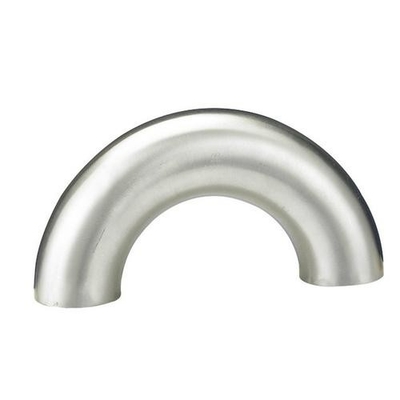

Factory Gr1 Gr2 Gr5 BW 180 Degree Return LR/SR Titanium Pipe Fittings
Size: Pure titanium or Titanium alloy Gr1,GR2,GR3,GR7,GR12
Outer diameter: DN20- 2000 customizable
Wall thickness: Sch5s-XXS
Standard: ASTM B36.19
Technique: Forged
Quality control: the X-ray detection (RT),Surface penetrant inspection (PT)
2. Excellent Corrosion Resistance
3. Good resistance to effect of heat
4. Excellent Bearing to cryogenic property
5. Nonmagnetic and Non-toxic 6.Good thermal properties
DN
|
OD At Bevel D | Center to End | Back to Face | ||||
A | B | 180 L | 180S | 180L | 180S | ||
15 | 21.3 | 18 | 76 | - | 48 | - | |
20 | 26.9 | 25 | 76 | - | 51 | - | |
25 | 33.7 | 32 | 75 | 51 | 56 | 41 | |
32 | 42.4 | 38 | 95 | 64 | 70 | 52 | |
40 | 48.3 | 45 | 114 | 76 | 83 | 62 | |
50 | 60.3 | 57 | 152 | 102 | 106 | 81 | |
65 | 76.1(73) | 76 | 191 | 127 | 132 | 100 | |
80 | 88.9 | 89 | 229 | 152 | 159 | 121 | |
90 | 101.9 | - | 267 | 178 | 184 | 140 | |
100 | 114.3 | 108 | 305 | 203 | 210 | 159 | |
125 | 139.7 | 133 | 381 | 254 | 262 | 197 | |
150 | 168.3 | 159 | 457 | 305 | 313 | 237 | |
200 | 219.1 | 219 | 610 | 406 | 414 | 313 | |
250 | 273.0 | 273 | 762 | 508 | 518 | 391 | |
300 | 323.9 | 325 | 914 | 609 | 619 | 467 | |
350 | 355.6 | 377 | 1067 | 711 | 711 | 533 | |
400 | 406.4 | 426 | 1219 | 813 | 813 | 610 | |
450 | 457.0 | 478 | 1372 | 914 | 914 | 686 |
FAQ
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM or other you asked.
3. Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
6. After-sales products, how to deal with problems?
Based on our statistics for each year, the probability of problems with titanium products is around 0.8%. There are two main reasons for the problem:
1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear.
2) 5% is an unexpected situation and the extension of the construction period.
3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the surface is damaged.
7. What is your company's response to the product in question?
1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability.
2) We are 100% responsible for problems caused by damaged packaging during transportation.
