ASTM GR2 GR7 GR9 Titanium Tee For Pipeline And Couplings
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Temperature Resistance | Yes | Design Types | Customized |
|---|---|---|---|
| Type | Long Radius, Quarter Bend | Technics | Casting |
| Others Name | Butt-welding Elbows Or Returns | Production Standards | ASTM B381, ASTM B363, ASME B16.9, |
| Low Temperature Resistance | Yes | Temperature Range | -425°F To 1200°F |
| Color | Lighe Silver Grey | Technical | Welded And Seamless |
| Nps | 1/2''-48'' | Tube Od | 6-141mm |
| Certifications | ISO 9001, PED, AD2000, TUV | Biocompatibility | Certified For Medical Use |
| Titanium | Grade 2 | ||
| Highlight | GR9 ASTM Titanium Tee,Pipeline ASTM Titanium Tee,Couplings ASTM Titanium Tee |
||
Product Description
Description

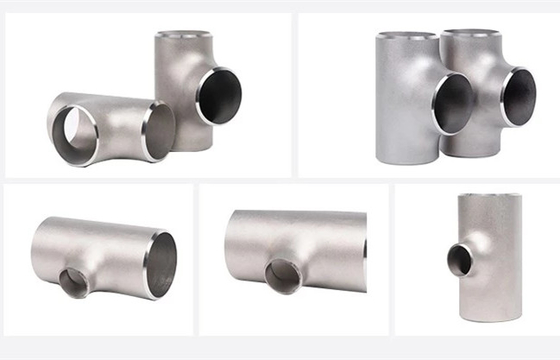

Titanium tee fittings are made of pure titanium or titanium alloys and are commonly used in pipeline systems to connect three sections of pipe. They serve to change the direction of fluid flow or to create a branch from the main pipeline.
Titanium tees are typically manufactured using hydraulic expansion or hot extrusion processes for smaller sizes, ensuring high dimensional accuracy and excellent mechanical properties. Due to titanium’s outstanding corrosion resistance, light weight, and strength, these fittings are widely used in chemical, petrochemical, and marine industries.
Specification
| Item | Description |
|---|---|
| Product Name | Titanium Tee |

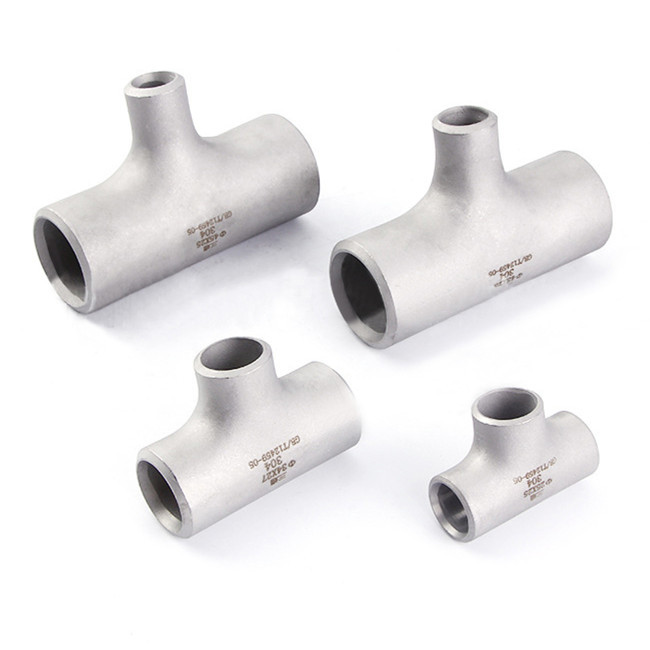

| Type | Equal (Straight) Tee / Reducing Tee |
| Material Grade | Gr1, Gr2, Gr5, Gr7, Gr11, Gr12, N4, N5, N6, NO2200, NO2201, MONEL 400, INCONEL 600, ZR702 |
| Specification | Outer Diameter: DN15–1200 (NPS 1/2"–48") Wall Thickness: 2 mm–30 mm (SCH5S–SCH160) |
| Standards | ASME B16.9–2007, MSS SP 43–1991, MSS SP 75–2008 |
| Manufacturing Technique | Seamless Extrusion, Butt-Welded, Seamless |
| Surface Finish | Sand Blasted / Polished |
| Quality Control | 100% X-ray Inspection or Dye Penetrant Test |
| Applications | Petroleum, Gas, Chemical Industry, Electric Power, Metallurgy, Pharmacy, Shipbuilding, Construction, and related fields |
Advantages
-
High strength-to-weight ratio – strong and lightweight.
-
Excellent corrosion resistance – ideal for harsh chemical and marine environments.
-
Good heat resistance and low-temperature toughness – maintains performance in extreme conditions.
-
Non-magnetic and biocompatible – suitable for medical and precision industries.
-
Long service life – minimal maintenance and extended durability.
Applications
Pipeline systems – to connect branch lines or change fluid direction.
Chemical and petrochemical plants – resistant to corrosive media and acids.
Power generation – reliable performance under high pressure and temperature.
Shipbuilding and offshore – for seawater and brine systems.
Pharmaceutical and food processing – safe and hygienic material.
Aerospace and precision industries – for lightweight, high-strength requirements.
