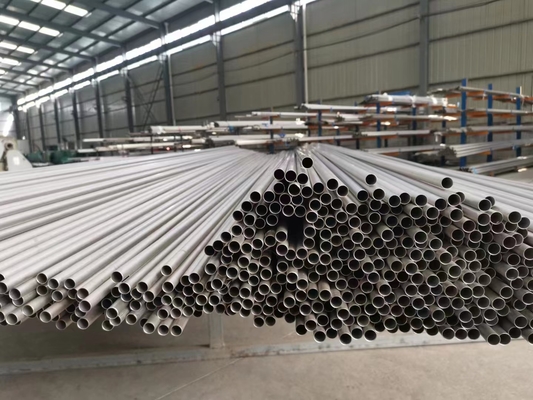

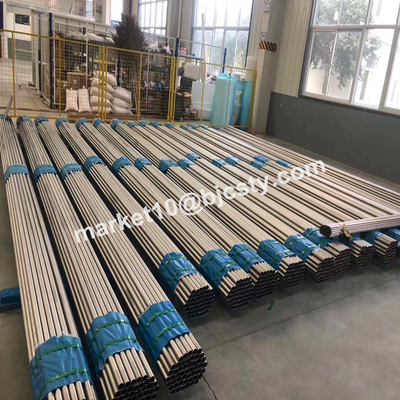

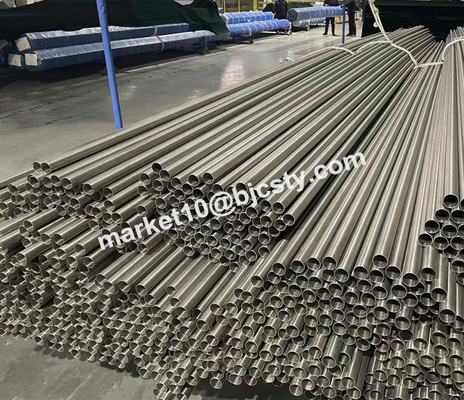

Titanium tube is light weight, high strength, excellent mechanical properties. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, serpentine heat exchanger, condenser, evaporator and pipeline. Many in the nuclear industry use titanium tubes as standard for their units. In titanium heat exchanger industry, good heat exchange performance is needed, thin wall tubes will be more appliable, the mainly used sizes include φ19, φ25, φ32, φ38, φ57, φ76, φ89, φ108, φ114.

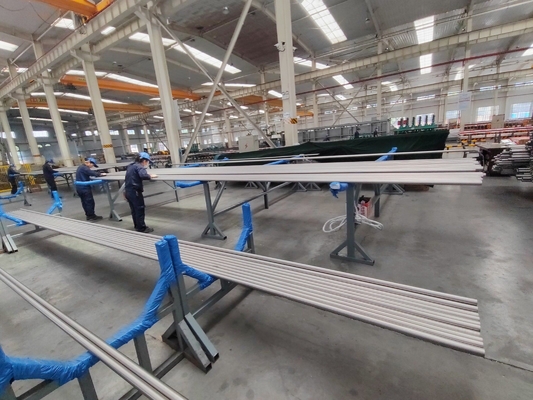

With 41,000 m2 workshop, we insist on tandardized production, stable product quality, the elongation of the high purity titanium tube can reach to 50 ~ 60%, and the section shrinkage rate can reach to 70 ~ 80%. Seamless titanium tubes are widely used in Heat Transfer solutions (Shell & Tube Heat Exchangers, Feed Water Heaters, Steam Surface Condenser, Deaerators, Vessels, Steam Drums, Cooling Systems, Waste Heat Recovery Units) and Filtration systems.

Titanium Grade: Gr2

Manufacturing Standard: ASME SB338

Test: Ultrasonic test, Hydraulic test
Processing: Cold reducing, cold drawing



Specs of Heat Exchanger Tubes:

Type	Grade	British measurement inch	Metric Measurement	Standard
seamless tubing	GR1.GR2,GR5, GR7,GR9,GR12, GR16,GR17	OD:0.06” to 3.5" Width:0.016” to0.315” Length Max:709”	OD:1.53 to 89mm WT:0.4 to 8mm  Length Max:18000mm	ASTM B338 ASME SB338
seamless pipe	GR1.GR2,GR5, GR7,GR9,GR12, GR16,GR17	OD:3.5” to 25” WT:0.12” to 1” Length Max:709”	OD 89 to 620mm WT:3 to 25.4mm Length Max:18000mm	ASTM B338 ASME SB338 ASTM B861

ASTM Grade	Alloy composition	Tensile strength		Yield strength		Elongation %
		ksi	Mpa	ksi	Mpa
Ti GR1	Unallyed Ti(Pure)35A-CP1	35	240	25	170	24
Ti GR2	Unallyed Ti(Pure)50A-CP2	50	345	40	275	20

Oil and Gas Industry

Power Plant Industry
Marine Industry

Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry

Plating and anodizing industry
Medical industry
Nuclear industry
