Big OD Titanium Welded Tube Titanium Welded Pipe ASTM B862

  • Big OD Titanium Welded Tube Titanium Welded Pipe ASTM B862
Place of Origin China
Brand Name Changsheng
Certification ISO 9001;2015
Model Number ASTM B862
Minimum Order Quantity 10KG
Price 15usd/kg
Packaging Details packed with export wooden case
Delivery Time 10-15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Titanium Standard ASTM B862
Grade Grade 1,Grade 2, Grade 7, Grade 12 OD 114-914mm; 5''-36''
Wall Thickness 2.77-31mm; SCH5S-SCH80 Length 1000-6000mm
Surface Bright, Pickling, Polishing Technical Rolling, Welded,CNC
High Light

Seamless Titanium Welded Tube

,

Titanium Welded Pipe ASTM B862

,

Bright Titanium Welded Tube
Leave a Message
Product Description

Big OD titanium welded tube

Big OD titanium welded tube are a type of tube made from titanium metal.

Big OD titanium welded tube are used for a wide range of applications including medical, industrial, and aerospace.

Titanium welded tube ASTM B862 provide superior strength and corrosion resistance compared to traditional steel or aluminum tubes.

Titanium welded pipe ASTM B862 are lightweight yet strong, making them ideal for many applications.

Titanium gr1 welded tube are often used in medical implants, as well as in aircraft and automotive components.

Ti gr2 welded tube are also used in industrial applications, such as heat exchangers and chemical process equipment.

Physical Properties of Big OD titanium welded tube

Grade Tensile stength MPA-Min Yield strength MPA-Min Elongation %-Min
Gr1 240 170 24
Gr2 345 275 20
Gr3 450 380 18
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23/ Gr5-Eli 793 759 10



Chemical Composition of Big OD titanium welded tube

Grade

Fe

Max

O

Max

N

Max

C

Max

H

Max

 Pd Max

Al

Max

 Va Max

Ni

Max

 Mo Max
/ Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt %
Gr1 0.2 0.18 0.03 0.08 0.015
Gr2 0.3 0.25 0.03 0.08 0.015
Gr3 0.3 0.35 0.05 0.08 0.015
Gr4 0.5 0.4 0.05 0.08 0.015
Gr5 0.4 0.2 0.05 0.08 0.015   5.5-6.7 3.5-4.5
Gr7 0.3 0.25 0.03 0.08 0.015 0.12- 0.25
Gr9 0.25 0.15 0.03 0.08 0.015   2.5-3.5 2.0-3.0
Gr12 0.3 0.25 0.03 0.08 0.015       0.6-0.9 0.2-0.4
Gr5eli/Gr23 0.25 0.03 0.03 0.08 0.0125   5.5-6.5 3.5-4.5
Ti Balance

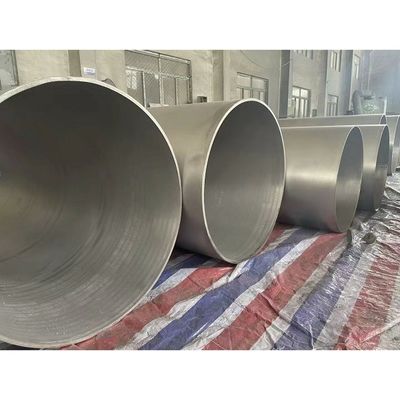

Big OD titanium welded tube Picture showing

Big OD Titanium Welded Tube Titanium Welded Pipe ASTM B862 0

Advantages of Big OD titanium welded tube

1. Big OD titanium welded tube are extremely strong, highly corrosion resistant and extremely lightweight.

2. Big OD titanium welded tube are also highly resistant to pitting and crevice corrosion.

3. Titanium welded tube astm b862 have a high fatigue limit, allowing them to be used in a variety of applications.

4. Titanium welded pipe astm b862 are more resistant to high temperatures and can be used in a wide range of applications.

5. Ti gr2 welded tube have a good weldability and can be easily joined with other materials.

6. Ti gr1 welded tube have excellent strength-to-weight ratio, making them ideal for aerospace and automotive applications.

7. Titanium gr2 welded pipe are relatively expensive compared to other metals.
