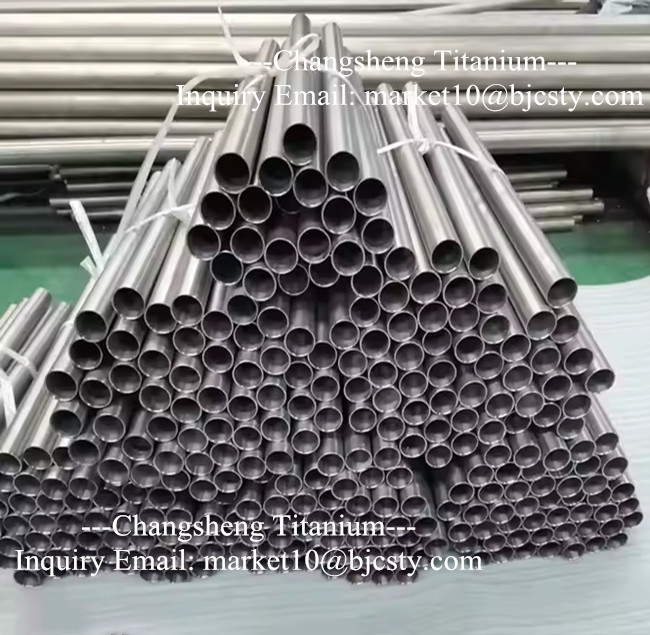

OD8mm Gr9 Titanium Alloy Tube Thin Wall Capillary Tubing

  • OD8mm Gr9 Titanium Alloy Tube Thin Wall Capillary Tubing
  • OD8mm Gr9 Titanium Alloy Tube Thin Wall Capillary Tubing
Place of Origin Baoji City, China
Brand Name Changsheng
Certification ISO9001:2015
Model Number Gr9 Titanium Tubes
Minimum Order Quantity 5kg
Price USD 80.0/KG - USD 88.0/KG
Packaging Details Soft film wrapped inside, export standard crate outside.
Delivery Time 15-25 work days
Payment Terms L/C, T/T
Supply Ability 30 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Titanium Alloy Gr9(Ti-3.5Al-2.5V) Diameter ≥3mm
Wall Thickness ≥0.2mm Surface Polished Bright Or Pickling Surface
Shape Titanium Round Tube Supply State Anealed
Standard ASTM B338 Application Aerospace, Medical, Marine, Electronic E Device, Sports, Oil Pipe
Advantage Good Welding Propertity, Ligh Weight, Corrosion Resistance Origin Baoji City, China
High Light

OD8mm Titanium Alloy Tube

,

Thin Wall Titanium Capillary Tubing

,

Gr9 Seamless Titanium Alloy Tube
Leave a Message
Product Description

OD8mm Gr9 Titanium Alloy Tube Thin Wall Capillary Tubing

We supply high precision and high quality required Gr9 titanium capillary tubes. Outside diameter between 3mm to 10mm, and min. wall thickness above 0.2mm. This kinda of high quality titanium alloy tube is widely used in aerospace, medical, automobile, sports, marine, petrochemical, electronic devices, etc,. The leading technology ensures us the top one supplier of small diameter and ultra-thin wall seamless tubes in China.

Specifications of Gr9 Titanium Alloy Tube

Material: Titanium Alloy Grade 9 (Ti-3Al-2.5V/UNS R56320)



Diameter: ≥3mm

Wall Thickness: ≥0.2mm

Surface Finish: Ra0.8μm to Ra1.6μm

Production Process: Rolling - Acid Washing - Annealing - Straightening - Polishing - Inspection

Regular Tube Size:
OD5.2mm x 0.4mm Wall Thickness x L
OD6.0mm x 0.4mm Wall Thickness x L
OD7.0mm x 0.4mm Wall Thickness x L
OD8.0mm x 0.4mm Wall Thickness x L
OD9.0mm x 0.4mm Wall Thickness x L
OD10.0mm x 0.4mm Wall Thickness x L

Tube samples will provide as request.




Ti-3Al-2.5V Titanium Material Chemical component & Mechanical properties

ASTM No.
N max
C max
H max
Fe max
O max
Pa
Al
V
Bal
Grade 9
0.03
0.08
0.015
0.25
0.15
/
2.5-3.5
2.0-3.0
Ti





ASTM Grade
Alloy composition
Tensile strength
Yield strength
Elongation %
ksi
Mpa
ksi
Mpa
GR9
Ti 3AI 2.5V
90
620
70
483
15F



Industrial Applications of Gr9 Titanium Tube:

Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle, automobile.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry

RFQ:
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM B338 / ASME SB338 or other you asked.
3. Can you provide samples? Is there a charge?
OD8mm Gr9 titanium tube sample can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
