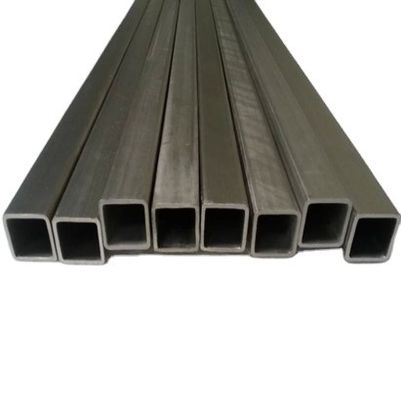

Seamless Square Tube Titanium Gr2 Gr5 ASTM B338 For Industrial Decorative
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001;2015 |
| Model Number | ASTM |
| Minimum Order Quantity | 50kg |
| Price | $15.00 - $30.00/ kg |
| Packaging Details | packed with export wooden case |
| Delivery Time | 10-15days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium And Titanium Alloy | Grade | Grade 1,grade 2,grade 4,grade 9 |
|---|---|---|---|
| OD | 20-500mm | Wall Thicckness | 1.0-35mm |
| Length | 1000mm And Cutting Size | Application | Industrial |
| Highlight | Square Seamless Titanium Tubing,Gr2 Titanium Seamless Tube,ASTM B338 Seamless Titanium Tubing |
||
Product Description
Industrial Use
Titanium Grade 2 seamless square tube is available in both welded and seamless forms. It is widely used in automotive, marine, aerospace, medical, and oil & gas industries where strength, light weight, and corrosion resistance are critical.
The alloy’s excellent corrosion resistance makes it suitable for harsh environments, including seawater and chemical exposure.
Its high strength-to-weight ratio ensures superior performance in structural and pressure-bearing applications.
Titanium’s non-magnetic and biocompatible nature makes it ideal for medical and electronic applications.
Titanium square tubes are also popular in decorative and architectural projects due to their clean metallic finish and aesthetic appeal.
Stock Range
| Specification | Details |
|---|---|
| Outer Diameter (OD) | 20–500 mm (Tolerance: ±0.12 mm) |
| Wall Thickness | 1.0–35 mm (Tolerance: ±0.05 mm) |
| Length | 1000–1500 mm (custom cutting available) |
| Surface Finish | Pickling, Bright, Polished |
| Available Grades | Gr2 (standard), customized Gr5 (Ti-6Al-4V), Gr9 |
| MOQ | 100 kg |
| Standards | ASTM B861, ASTM B338, ASTM B337 |
| Applications | Firearms, heat exchangers, pressure vessels, structural tubing |
Physical Properties
| Grade | Tensile Strength (MPa, Min) | Yield Strength (MPa, Min) | Elongation (%) |
|---|---|---|---|
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr3 | 450 | 380 | 18 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 (Gr5 ELI) | 793 | 759 | 10 |
Chemical Composition
| Grade | Fe (max) | O (max) | N (max) | C (max) | H (max) | Pd (max) | Al (%) | V (%) | Ni (max) | Mo (max) |
|---|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.20 | 0.18 | 0.03 | 0.08 | 0.015 | – | – | – | – | – |
| Gr2 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | – | – | – | – | – |
| Gr3 | 0.30 | 0.35 | 0.05 | 0.08 | 0.015 | – | – | – | – | – |
| Gr4 | 0.50 | 0.40 | 0.05 | 0.08 | 0.015 | – | – | – | – | – |
| Gr5 | 0.40 | 0.20 | 0.05 | 0.08 | 0.015 | – | 5.5–6.7 | 3.5–4.5 | – | – |
| Gr7 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12–0.25 | – | – | – | – |
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | – | 2.5–3.5 | 2.0–3.0 | – | – |
| Gr12 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | – | 0.6–0.9 | 0.2–0.4 | – | – |
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | – | 5.5–6.5 | 3.5–4.5 | – | – |
| Ti | Balance |
Advantages
-
High Strength & Lightweight — Ideal for aerospace, automotive, and pressure vessel applications.
-
Corrosion Resistant & Non-Magnetic — Suitable for marine and chemical environments.
-
Heat Resistant — Performs well under elevated temperature conditions.
-
Biocompatible & Non-Toxic — Safe for medical and food industry applications.
-
Excellent Machinability — Easy to form, weld, and fabricate into complex geometries.
-
Cost-Effective — Provides a long service life with minimal maintenance.
Applications
Titanium seamless square tubing is extensively used in:
Aerospace: Structural components, hydraulic systems, engine parts.
Marine: Ship fittings, heat exchangers, seawater piping.
Chemical Processing: Condensers, reactors, and pressure vessels.
Medical Equipment: Implants, prosthetics, and surgical tools.
Sports Equipment: Bicycle frames, golf clubs, and tennis rackets.
Industrial Engineering: Power generation, nuclear, and oil & gas systems.
