Thin Wall Titanium Pipes Gr1 Seamless Round Tubing For Heat Exchangers In Desalination Plants
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Thin Wall Titanium Pipes |
| Minimum Order Quantity | 5kg |
| Price | USD 36.5/KG - USD 46.5/KG |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Thin Wall Titanium Pipes Gr1 | Diameter | 5mm To 114mm , Or Custom Sizes |
|---|---|---|---|
| Wall Thickness | 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm | Surface | Pickling Surface Or Bright Polished Surface |
| Shape | Round Pipes | Supply State | Annealed |
| Standard | ASTM B338 ASTM B861 | Application | Heat Exchanger, Condenser, Structure, Medical |
| Advantage | Corrosion Resistance, Light Weight, Easy Bend | Inventory | Large Stock, Ready To Go |
| Highlight | Gr1 Titanium Seamless Round Tubing,Heat Exchangers Seamless Round Tubing,Desalination Plants Seamless Titanium Tubing |
||
Product Description
Thin Wall Titanium Pipes Gr1 Seamless Round Tubing For Heat Exchangers In Desalination Plants
We supply thin wall titanium pipes with wall thickness 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, etc,. Commercially pure titanium Grade 1, it’s the softest and most ductile and has the greatest formability, excellent corrosion resistance and high impact toughness. Grade 1 pipe titanium can be found in the medical industry, architecture, marine industry, and automotive parts.
Diameter: 5mm to 114mm
Wall thickness: 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, etc,.
Length: 1000mm, 3000mm, or as client's request
Pipe surface: Pickling surface(acid washing), bright surface(polished)
Lead time: 3 to 5 work days
Price advantage: Based on purchase quantity, we offer big discount company policy
Key application areas: heat exchangers in desalination plants, heater-chillers for salt water reservoirs and aquariums, exhaust pipes, etc,.
Introduction in Details of Titanium Pipes
| Product Name | Thin Wall Titanium Pipes Gr1 |
| Diameter | 5mm to 114mm |
| Wall thickness | 0.5mm, 0.55mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm |
| Length | 1000mm, or as per request (Free cut to length service) |
| Surface | Pickling surface(acid washing), bright surface(polished) |
| Shape | Round and seamless |
| Standards | ASTM B338 ASTM B337 ASTM B861 |
| Factory Certification | ISO9001:2015 |
| Application | Heat exchanger, condenser, medical, sports, auto parts, aquaculture |
Adantages of Titanium Pipes
- Light weight, thin wall thickness, high strength
- Thin wall pipe titanium good in durability
- Excellent corrosion resistance
- High temperature resistance
- Easy bending
- No magnetism
- Long service life
- Avoid pollution problems
Services We Provide
* Quality inspection services. According to client's request, arrange the corresponding detections
* Cutting service. According to client's request, in random or cut-to-length tubes and pipes for free
* Surface treatment service. According to client's request, providing polishing, filming and other surface services
* Packaging service, According to client's request, customized packaging
* Personal and professtional one-on-one service
Mechanical Properties of Titanium Metal
| Grade | Tensile strength,min | Yield strength,0.2% offset |
Elongation(%) |
||
| ksi (min) | MPa(min) | ksi (min) | MPa(min) | ||
| GR1 | 35 | 240 | 25 | 170 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | 130 | 895 | 120 | 828 | 10E |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 483 | 15 |
| GR12 | 70 | 483 | 20 | 345 | 18 |

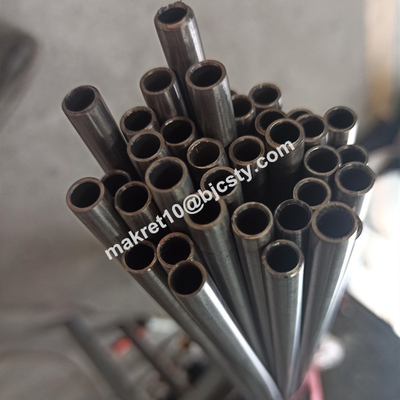

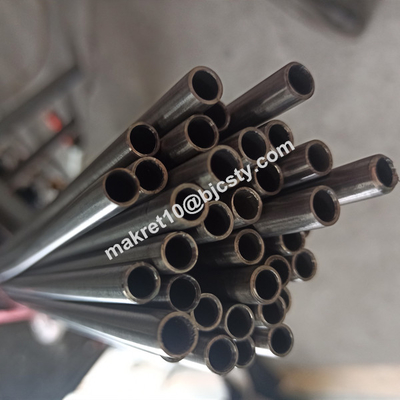

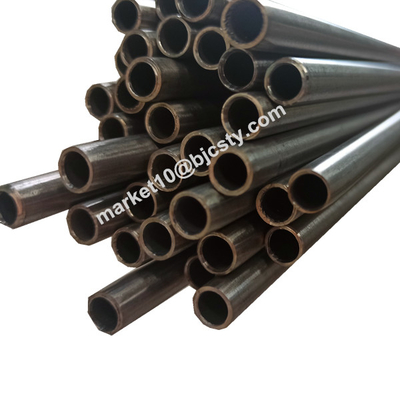

Product Pictures of Titanium Pipes
Diameter 8mm x 1.0mm wall thickness, custom length 2600mm per tube, polishing surface.
RFQ:
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2.What if I have some further questions or concerns which are not described above?
Please feel free to contact me via the E-mail market10 at bjcsty. com, or Call us at 1 78 688 73720.
3. Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4. Do you have an official website other than the sites here?
Sure. Please refer to our website at: www.bjcstytitanium.com.
5. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
6. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
