Titanium flange bolt with 6 Points for Automobile and Race Motorcycle
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | TITANIUM | Grade | Grade 1,Grade 5, Ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11 |
|---|---|---|---|
| Size | M3-M22 And Customized | Pitch | 1.0,1.25,2.0 |
| Color | Silver, Black,gold,purple,green.rainbow,blue | Technical | CNC,Stamping |
| High Light | 6 Points Head Bolt Screw Fasteners,Titanium Grade 5 Screw Fasteners,Automobile Flange Titanium Fasteners |
||
Product Description
Descriptions of Titanium flange bolt with 6 Points
Titanium flange bolt with 6 Points are ideal for applications that require high corrosion and temperature resistance. Titanium flange bolt with 6 Points are stronger than stainless steel, yet still lightweight and corrosion-resistant. Titanium 6 points flange screw is also non-magnetic, making them ideal for use in electrical and electronic applications. In addition, Titanium 6 points flange screw is non-toxic and non-allergenic, making them a great choice for medical device applications.
Titanium 6 points flange bolt is commonly used in the automotive industry for a variety of applications. titanium 6 points flange bolt is lightweight, corrosion-resistant, and strong, making them ideal for high-stress components such as valve covers, exhaust manifolds, and connecting rods.
Titanium flange screw with 6 Points can also be used in suspension components, brake calipers, and wheel hubs. Titanium flange screw with 6 Points are also used in chassis and body components, including door handles, window frames, and interior trim pieces.
Our Titanium flange bolt with 6 Points in stock
1. Grade:Gr2, Gr5(Ti-6AL-4V); UNS 50400 and UNS R56400
2. Size:M2-M64 Titanium flange bolt with 6 Points, customized size acceptable
3. Titanium color, green, blue ,gold, black, purple Titanium flange bolt with 6 Points
4. Pitch:1.0/1.25/1.5/2.0; 6 points flange bolt titanium
5. Related Standard; DIN6921, titanium 6 points flange bolt
Physical Properties of Titanium flange bolt with 6 Points |
|||
| Grade | Tensile stength MPA | Yield strength MPA | Elongation % |
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Composition of Titanium flange bolt with 6 Points |
|||||||||||
| Grade | Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max | Ni Max | Mo Max | |
| / | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | ||||||
| Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | ||||||
| Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | ||||||
| Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | ||||
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | |||||
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | ||||
| Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | ||||
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | ||||
| Ti | Balance | ||||||||||

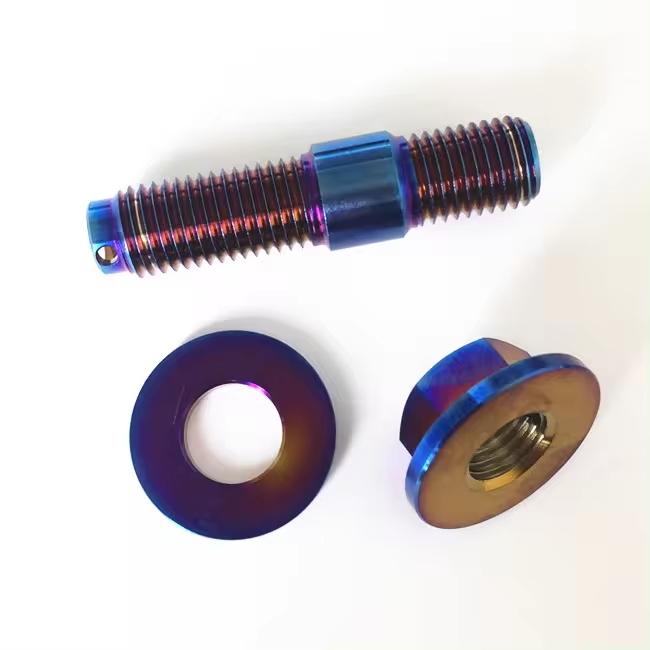

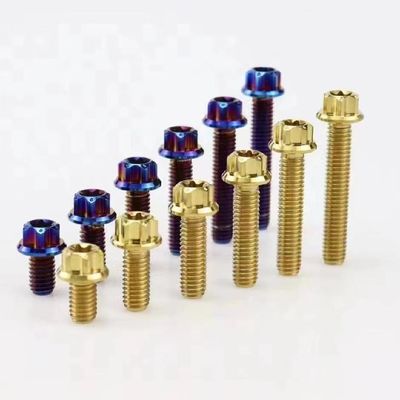

Picture showing of Titanium flange bolt with 6 Points
Applications of Titanium flange bolt with 6 Points
Titanium flange bolt with 6 Points are one of the most popular types of fasteners used in a variety of industries. Titanium flange bolt with 6 Points are typically used to secure two objects together, such as two pieces of metal or two pieces of wood. Titanium 6 points flange bolt is also used to hold parts together when they need to be bolted down. Titanium 6 points flange bolt is lightweight, strong, and highly resistant to corrosion and rust. Titanium 6 points flange screw is also more resistant to fatigue than traditional steel studs, so Titanium flange screw with 6 Points are often used in applications where fatigue is a concern. Titanium flange screw with 6 Points are commonly used in the aerospace, automotive, and marine industries, as well as in the construction, electrical, and plumbing industries.
