Titanium Concentric Reducer for Pipe Connecting
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Pipe Fittings | Pressure Rating | Class 150 |
|---|---|---|---|
| Titanium Surface Finish | Inner And Outer Surface Polishing | Surface Finish | Pickled, Polished |
| Biocompatibility | Certified For Medical Use | Center To End | 38-610mm |
| Others Material | Nickel N6 N4 N201 | Production Standards | ASTM B381, ASTM B363, ASME B16.9, |
| Nps | 1 | Dimensional Accuracy | ±0.02 Mm |
| Color | Light Silver Grey | Technique | Welding |
| Thickness | 0.8-8.0mm | Chemical Resistance | High |
| Surface Process | Annealed, Pickled | ||
| Highlight | Concentric Reducing Titanium Cone,CP-TI Titanium Cone,DN40 Pipe Connecting Titanium Cone |
||
Product Description
Descriptions

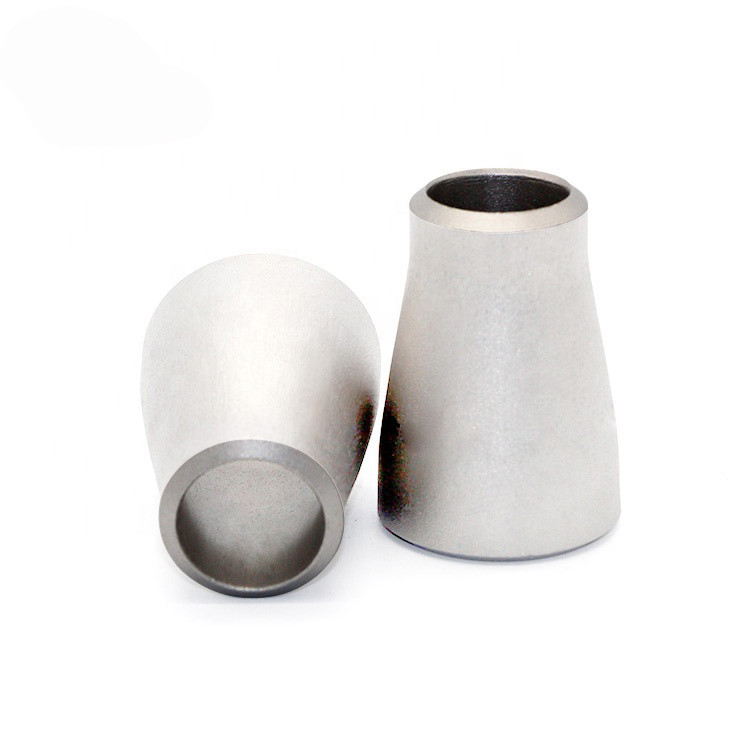

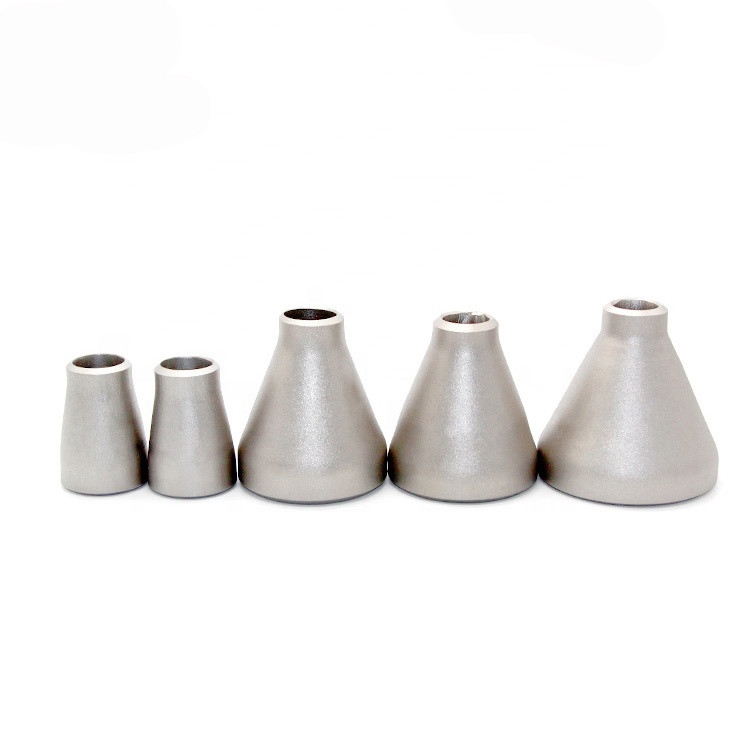

Titanium Concentric Reducer is a pipe fitting used to reduce the flow or size of a pipeline from a larger diameter to a smaller one while maintaining a common centerline throughout its length. It is designed to connect pipes of different diameters while ensuring smooth flow and minimal turbulence.
Manufactured from high-quality titanium alloys, the Titanium Concentric Reducer provides exceptional strength, corrosion resistance, and temperature tolerance, making it suitable for demanding environments such as chemical processing, oil and gas, marine, and industrial systems.
The CPTi Titanium Concentric Reducer is engineered for high-pressure and high-temperature service and offers superior resistance to corrosion, erosion, and abrasion. It delivers long service life and consistent performance, even under harsh conditions.
Specifications of Titanium Concentric Reducer
Grade: Gr2, Gr5, Gr7, Gr12
Standard: ASME B16.9
Size Range: 1.000" (25.4 mm) × 0.500" (12.7 mm) to 8.000" (203.2 mm) × 6.000" (152.4 mm)
Wall Thickness: SCH5S – SCHXXS

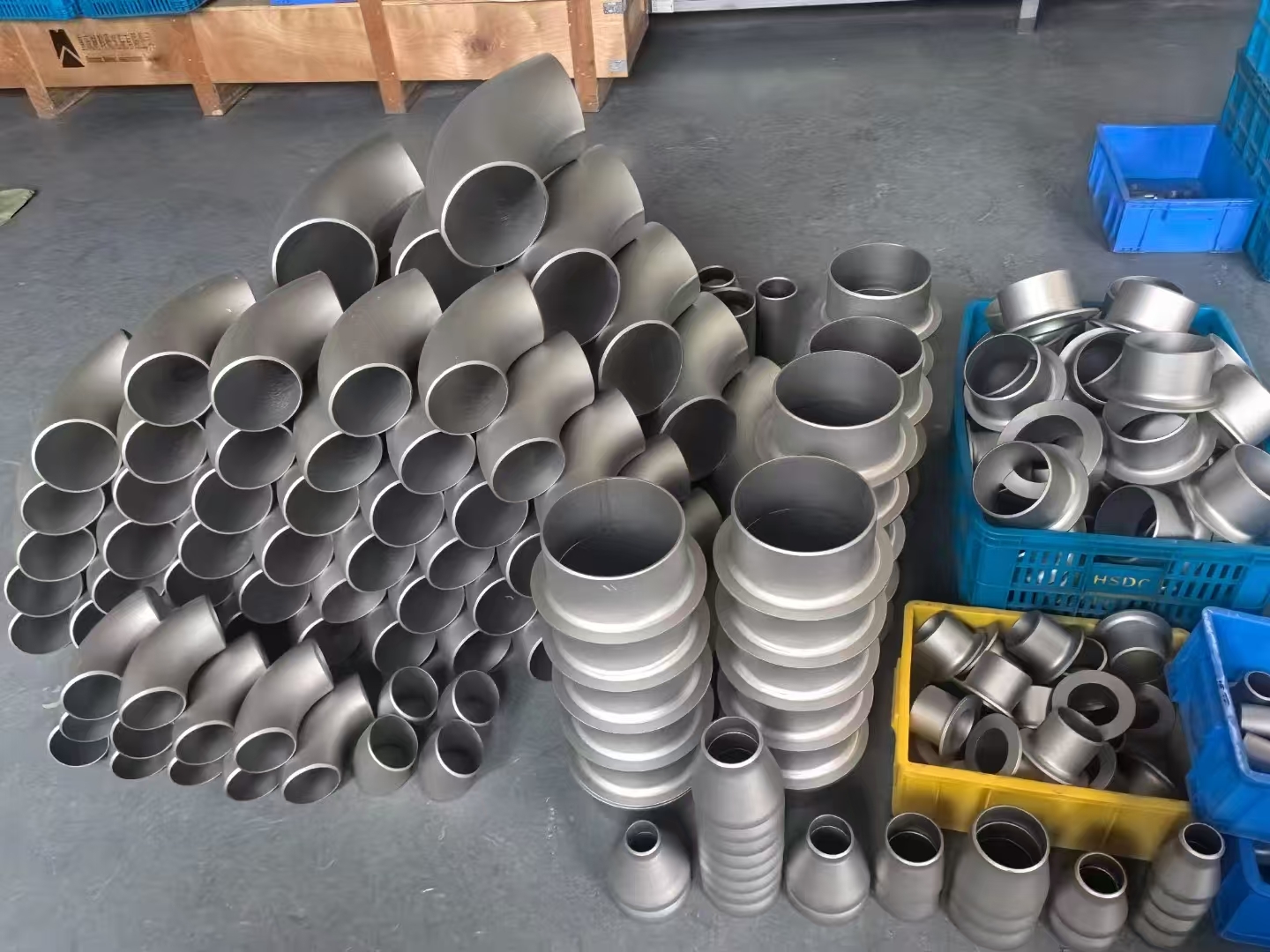

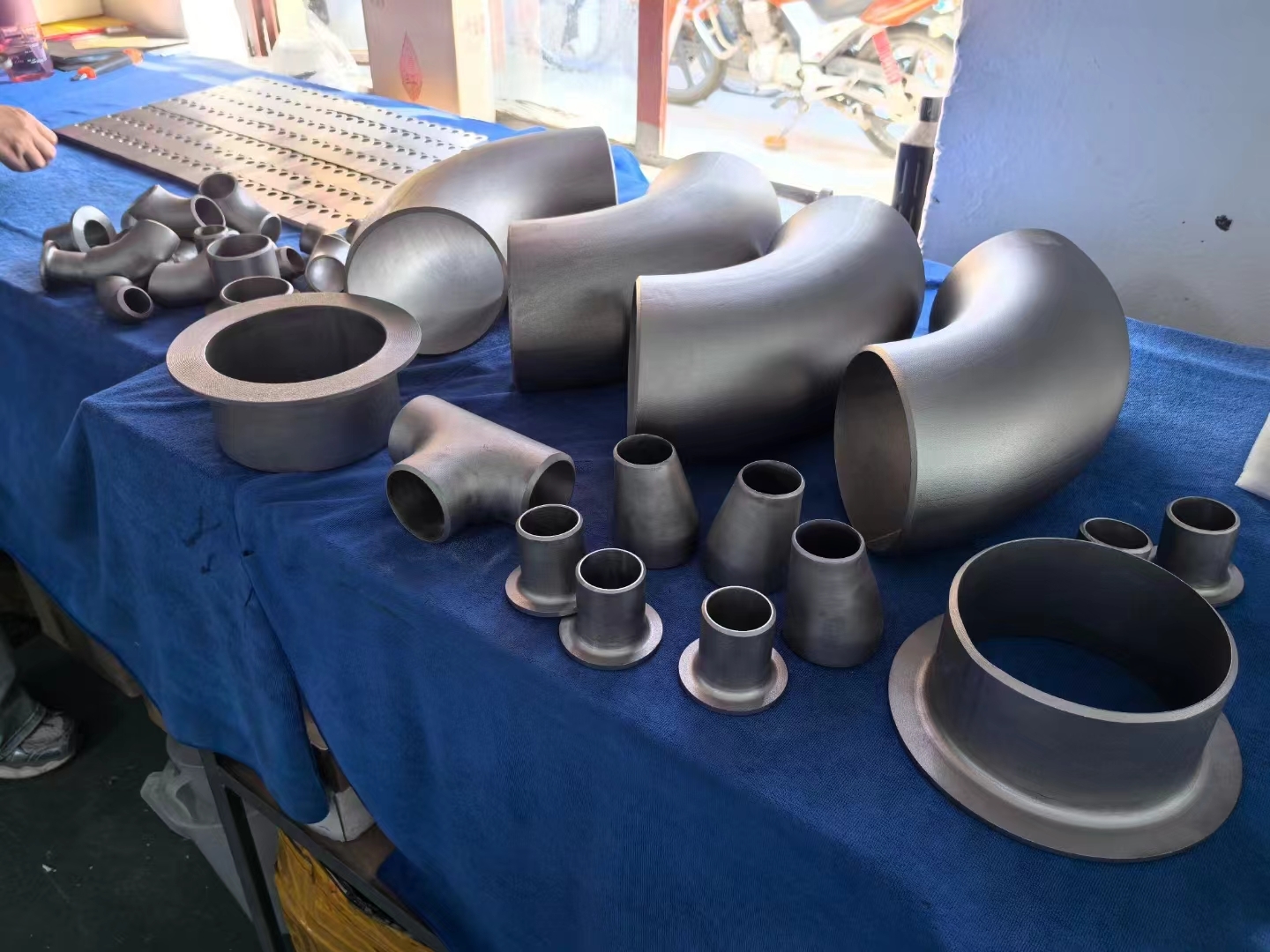

Available Titanium Pipe Fittings

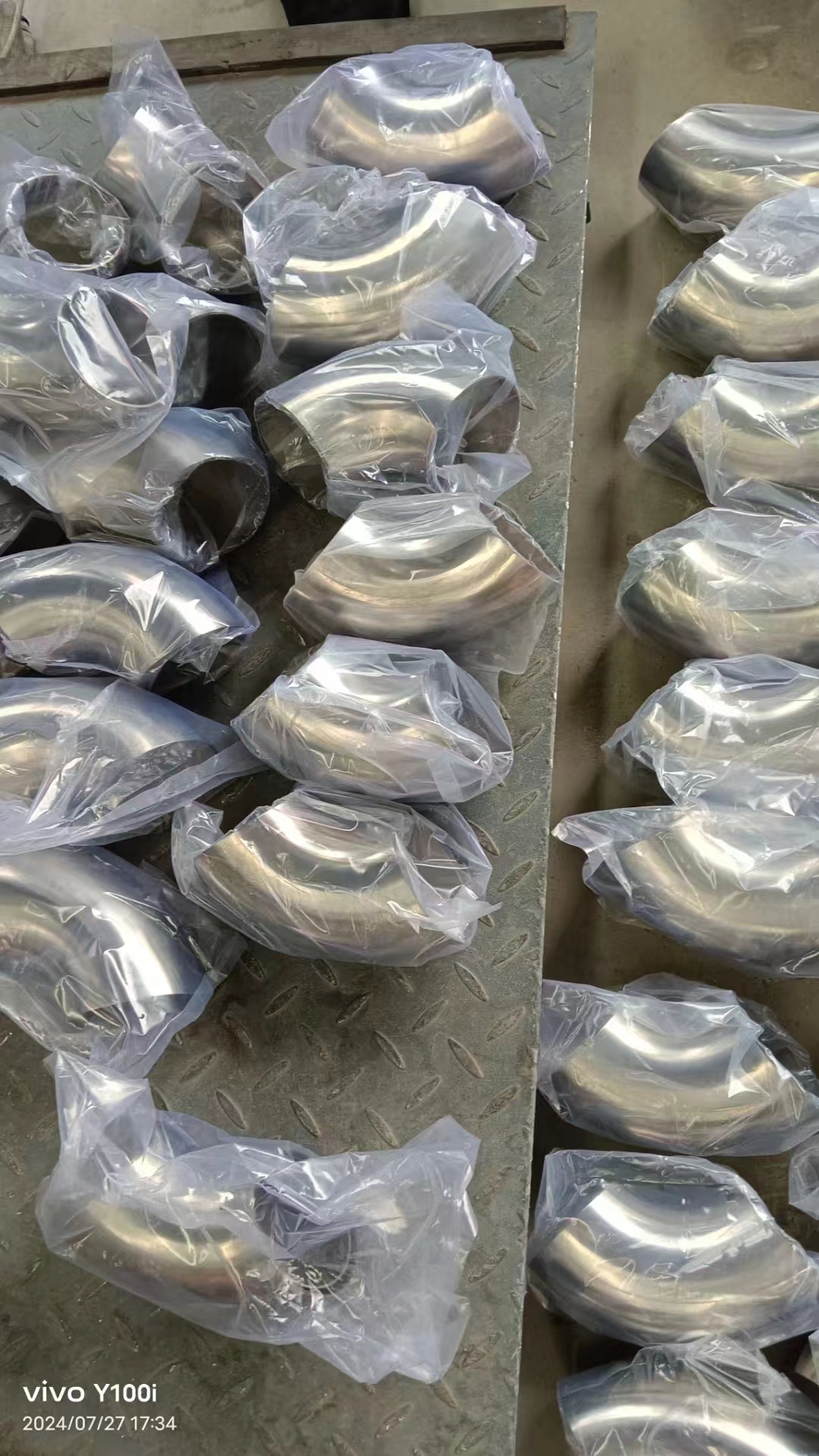

Titanium Elbows: 45°, 90°, 180° (NPS 1/4″ – 48″)
Titanium Concentric Reducer: NPS 1/4″ – 48″
Titanium Eccentric Reducer: NPS 1/4″ – 48″
Titanium Tees: Straight, Equal, Reducer, Cross Tee (NPS 1/4″ – 48″)
Titanium Lap Joint Stub Ends: NPS 1/4″ – 48″
Titanium Caps, Flanges, Socket Weld Fittings, and Valves also available
Physical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Chemical Composition
| Grade | Fe (max) | O (max) | N (max) | C (max) | H (max) | Pd (max) | Al (max) | V (max) | Ti |
|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.20 | 0.18 | 0.03 | 0.08 | 0.015 | — | — | — | Balance |
| Gr2 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | — | — | — | Balance |
| Gr4 | 0.50 | 0.40 | 0.05 | 0.08 | 0.015 | — | — | — | Balance |
| Gr5 | 0.40 | 0.20 | 0.05 | 0.08 | 0.015 | — | 5.5–6.7 | 3.5–4.5 | Balance |
| Gr7 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12–0.25 | — | — | Balance |
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | — | 2.5–3.5 | 2.0–3.0 | Balance |
| Gr12 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | — | 0.6–0.9 | 0.2–0.4 | Balance |
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | — | 5.5–6.5 | 3.5–4.5 | Balance |
Advantages of Titanium Concentric Reducer
-
Superior Corrosion Resistance: Excellent protection against acids, alkalis, and chlorides.
-
Lightweight and High Strength: Offers a high strength-to-weight ratio for demanding applications.
-
Durable and Cost-Effective: Long service life reduces maintenance and replacement costs.
-
High Temperature Resistance: Performs reliably in extreme heat and pressure conditions.
-
Easy Installation and Maintenance: Simple to assemble, disassemble, and maintain.
-
Excellent Wear Resistance: Withstands abrasion and flow-induced stress.
-
Outstanding Chemical Resistance: Ideal for harsh industrial and chemical environments.
Applications:
Chemical and petrochemical processing
Marine and offshore industries
Power generation and desalination
Aerospace and defense systems
Industrial fluid and gas transport systems
