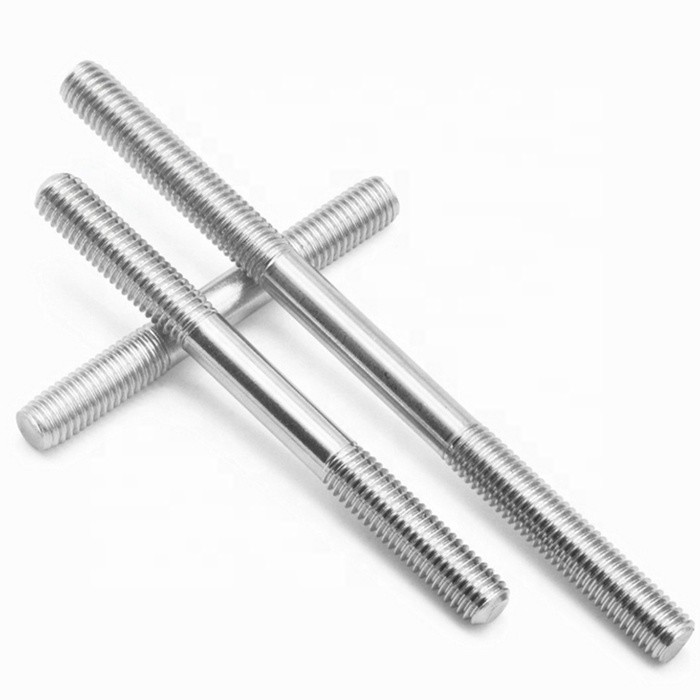

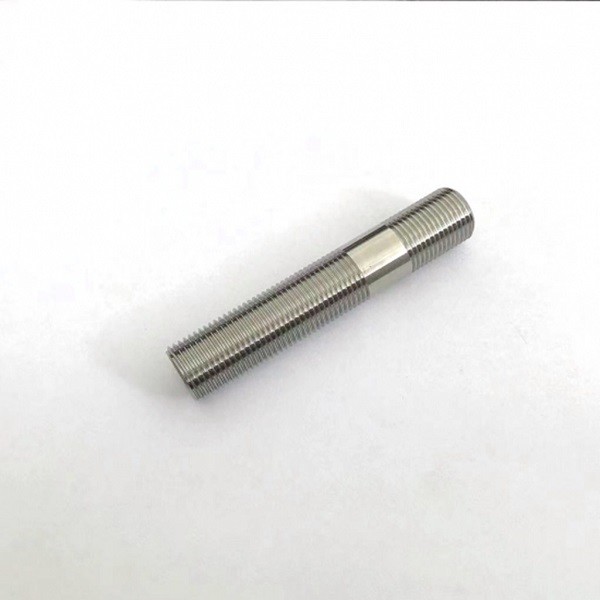

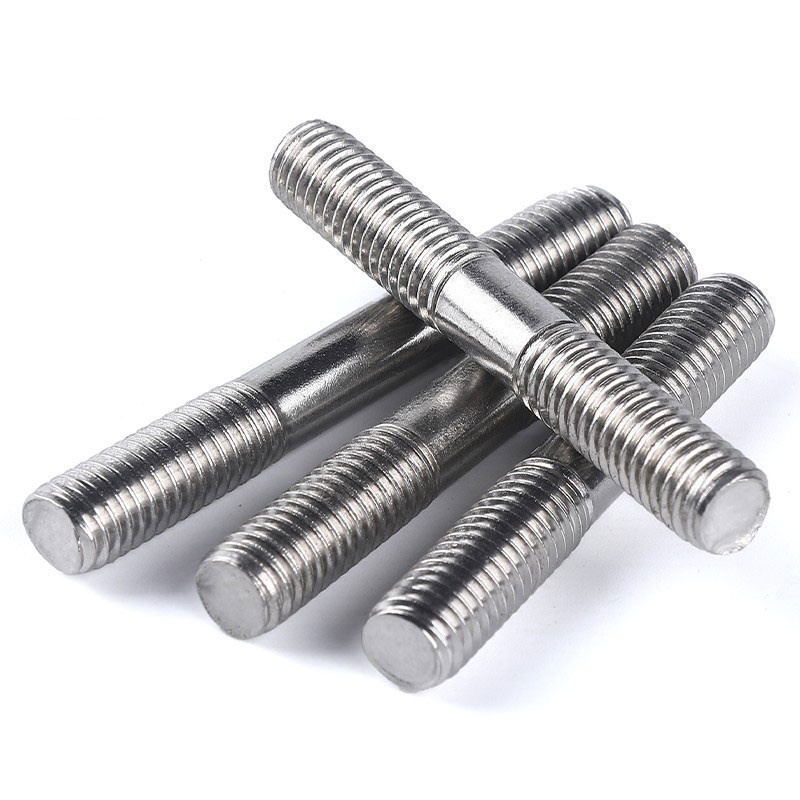

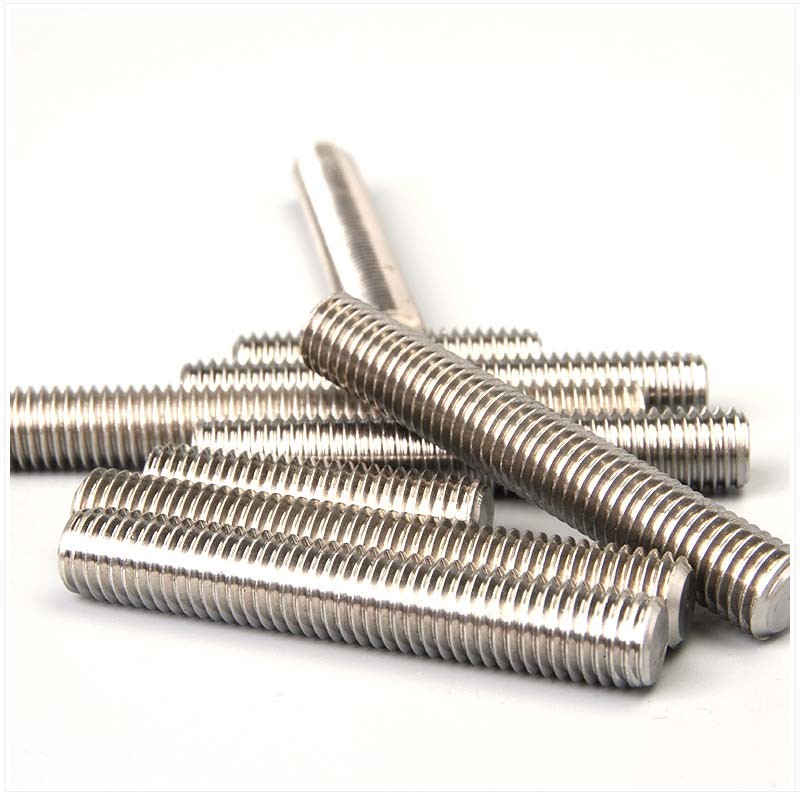

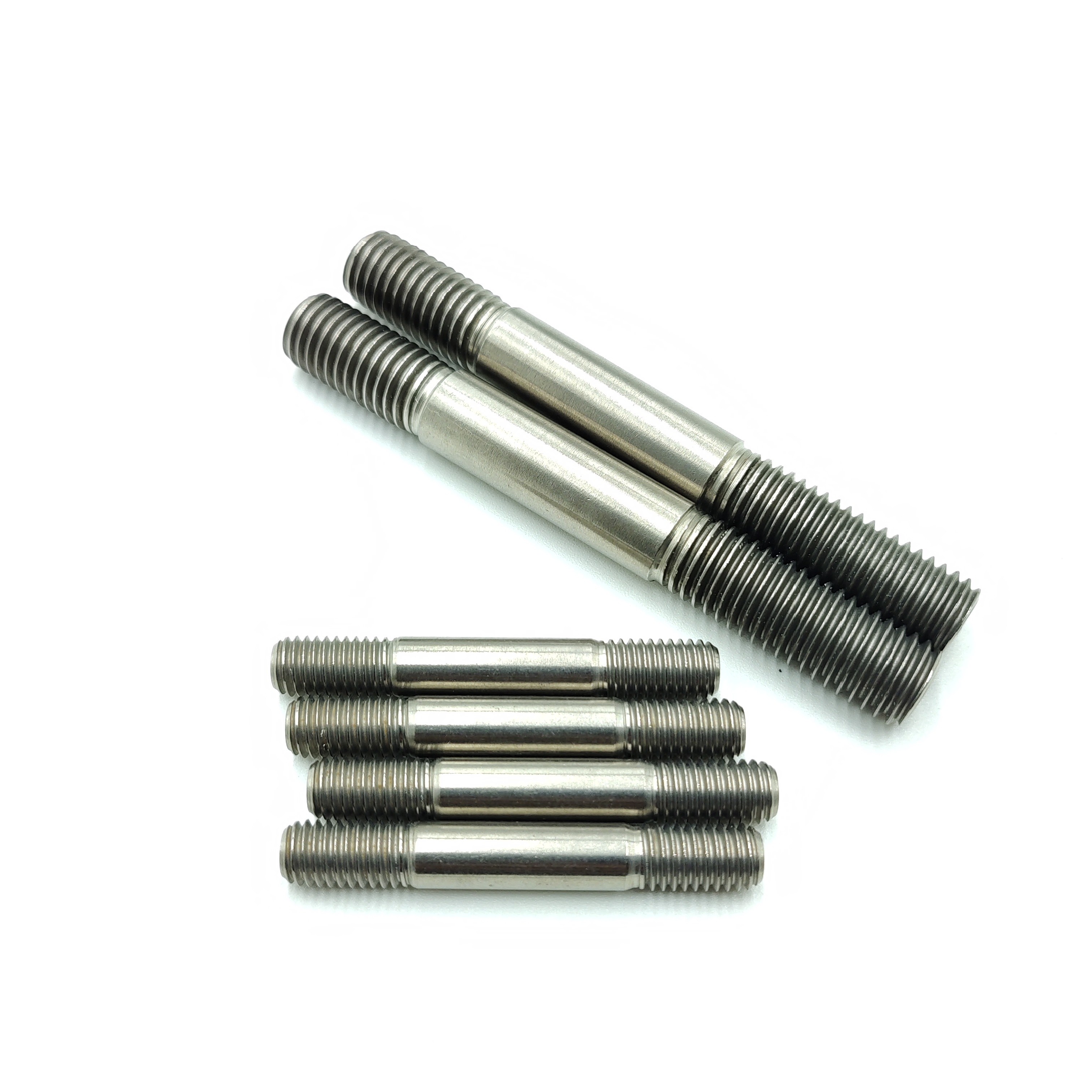

Titanium Thread Rod for industry

  • Titanium Thread Rod for industry
  • Titanium Thread Rod for industry
  • Titanium Thread Rod for industry
  • Titanium Thread Rod for industry
  • Titanium Thread Rod for industry
Place of Origin China
Brand Name Changsheng
Certification ISO 9001;2015
Model Number ASTM
Minimum Order Quantity 100pc
Price 1.5usd/pc
Packaging Details packed with export wooden case
Delivery Time 10-15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Resistance High Temperature Resistance Custom Size Workable
Warranty 5years Item Name Titanium Threaded Bar
Standard DIN, ANSI, ISO, JIS, GB Equipment CNC Machining Centres
Drive Type Socket Versatile Yes
Pitch 1.0, 1.25, 1.5, 2.0 Heat Resistance High
Total Length 46-63.05mm Powder Or Not Not Powder
Long Lifespan Yes Packing Carton Box Or Plywood Case
Technique Cnc Machining,hot Rolled
Highlight

Grade 2 Titanium Thread Rod

,

Industry Polished Titanium Rod

,

Thread Titanium Rod M3
Leave a Message
Product Description

Description of Titanium Thread Rod



Titanium Thread Rod, also known as All Thread Rod, is a type of fastener fully threaded along its length and made from high-quality titanium alloy. These rods are widely used in high-performance applications that demand superior strength, lightweight characteristics, and excellent corrosion resistance.

Titanium Thread Rods perform exceptionally well in high-pressure and high-temperature environments, making them suitable for use in aerospace, automotive, chemical processing, and medical industries. Their outstanding strength-to-weight ratio and resistance to extreme environments make them a preferred choice over traditional steel rods.

Specifications

  1. Grade: Gr5 (Ti-6Al-4V) Titanium Thread Rod

  2. Size: M2 – M30 (customised sizes available)

  3. Colour: Titanium natural, green, blue, gold, black, purple

  4. Pitch: 1.0 / 1.25 mm

  5. Features: Lightweight, low density, excellent acid and alkali resistance, high corrosion resistance, superior mechanical strength, and thermal stability

  6. Finishing Options: Yellow zinc plated, blue zinc plated, white zinc plated, galvanised, HDG (Hot-Dip Galvanised), chromate, Dacromet

  7. Applications: Industrial equipment, automotive and motorcycle components, bicycles, and medical implant fasteners

Physical Properties of Titanium Thread Rod

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10

Chemical Composition of Titanium Thread Rod

Grade Fe Max O Max N Max C Max H Max Pd Max Al V Ni Max Mo Max
Gr1 0.20 0.18 0.03 0.08 0.015 - - - - -
Gr2 0.30 0.25 0.03 0.08 0.015 - - - - -
Gr4 0.50 0.40 0.05 0.08 0.015 - - - - -
Gr5 0.40 0.20 0.05 0.08 0.015 - 5.5–6.7 3.5–4.5 - -
Gr7 0.30 0.25 0.03 0.08 0.015 0.12–0.25 - - - -
Gr9 0.25 0.15 0.03 0.08 0.015 - 2.5–3.5 2.0–3.0 - -
Gr12 0.30 0.25 0.03 0.08 0.015 - 0.6–0.9 0.2–0.4 - -
Gr23 0.25 0.03 0.03 0.08 0.0125 - 5.5–6.5 3.5–4.5 - -
Ti Balance

Advantages of Titanium Thread Rod

  1. Lightweight: About 60% lighter than steel, making installation and handling easier.

  2. High Strength: Excellent load-bearing capability and structural reliability.

  3. Corrosion Resistance: Unmatched resistance to rust, oxidation, and chemical exposure.

  4. Low Thermal Conductivity: Suitable for high-temperature or thermally sensitive applications.

  5. Non-Magnetic: Ideal for environments where magnetic interference must be avoided.

  6. Cost-Effective: Offers long service life and performance efficiency, reducing maintenance costs in the long term.
