Titanium gr2 Bolt Din912 for industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium | Keywords | Titanium Bolts |
|---|---|---|---|
| Surface Treatment | Polishing, Anodizing, Black Oxide, Etc. | Package | Packed With Scartoon Box |
| Durability | High | Lightweight | Lightweight And Durable |
| Versatility | Suitable For Various Applications | Delivery | Within 10-25 Days |
| Thread | M1.6-M48 Or As Request | Warranty | 5years |
| Service | Drawings To Customized | Processing | CNC |
| Packing | 100pcs In Poly Bag | Head Type | Hex Socket Round Head |
| Corrosion Resistance | Highly Resistant To Corrosion | ||
| Highlight | Pure Titanium Bolt M1.6,High Anti Corrosion Titanium Fasteners,Grade 2 Motorcycle Titanium Bolt |
||
Product Description
Description

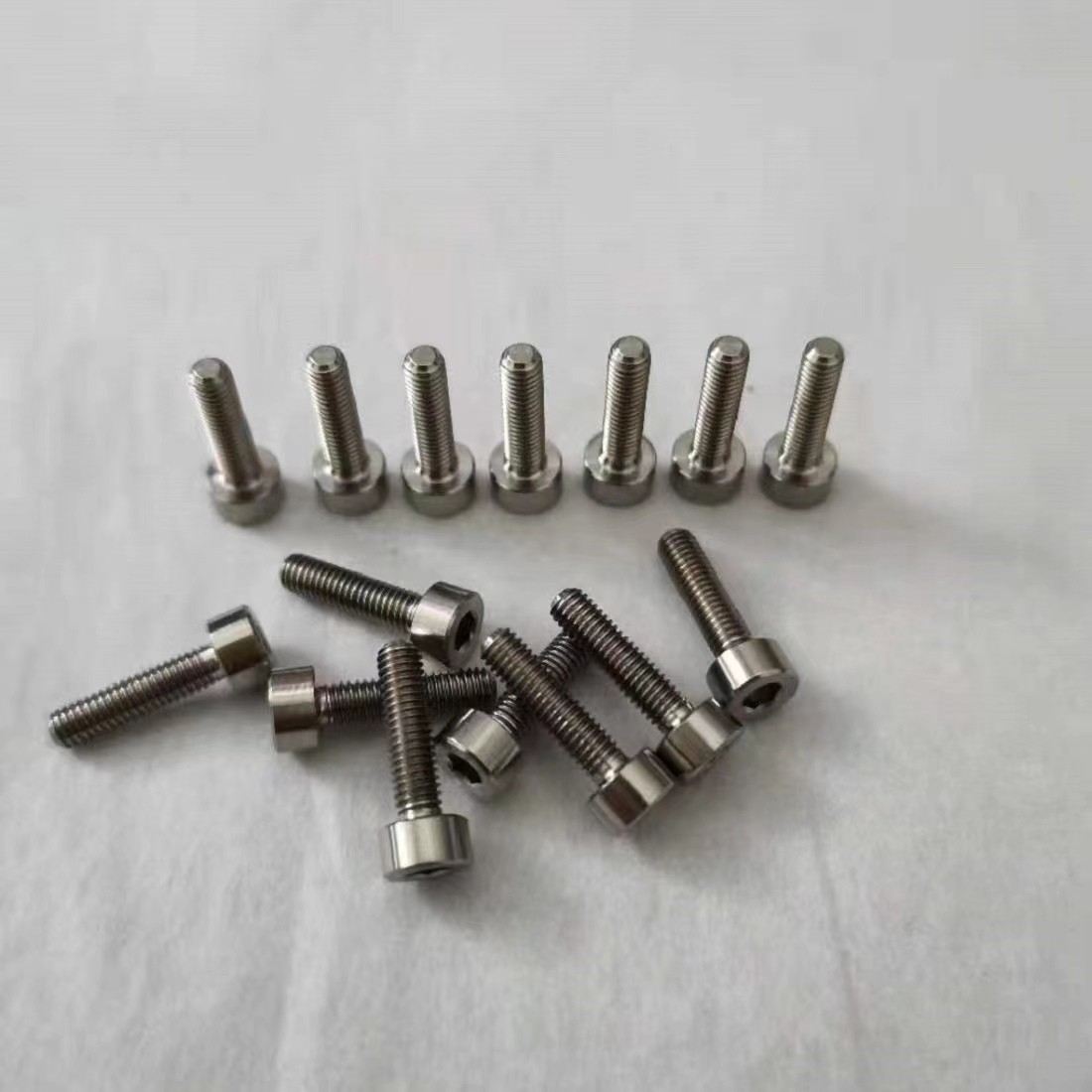

Titanium Gr2 Bolt DIN912 is a hex socket head bolt made from commercially pure titanium (Grade 2), known for its excellent corrosion resistance, light weight, and high strength-to-weight ratio. Designed according to the DIN912 standard, this fastener provides a secure and precise connection in demanding environments.
Titanium Gr2 bolts are widely used in aerospace, automotive, marine, and cycling industries, where performance, durability, and reduced weight are critical. Compared with traditional steel bolts, Titanium Gr2 fasteners offer superior resistance to oxidation and chemicals, making them an ideal choice for harsh and corrosive conditions.
Although titanium fasteners are typically more expensive than steel ones, their long service life, low maintenance requirements, and performance advantages make them a cost-effective solution for advanced engineering applications.
Specifications of Titanium Gr2 Bolt DIN912
-
Grade: Gr2 / Gr5 Hex Socket Head Titanium Bolt
-
Size: M1.6 – M30
-

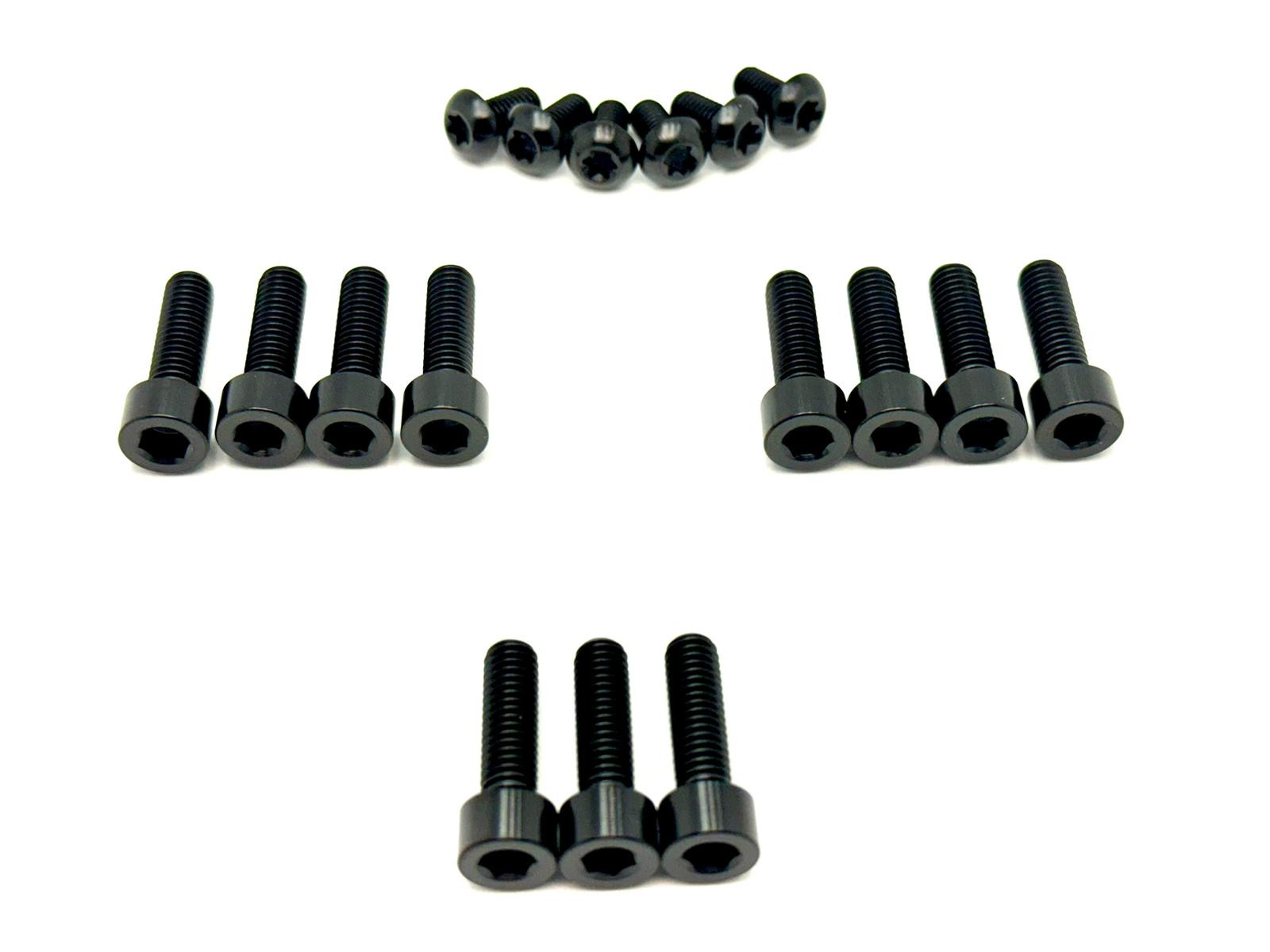

Colour Options: Natural titanium, blue, gold, green, black, purple (anodised finishes)
-
Pitch: 1.0 / 1.25 mm
-
Surface Finish: Polished, Pickling, or Anodised
-
Head Style: Hex Socket Head
-
Standard: DIN912
Physical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Chemical Composition
| Grade | Fe (max) | O (max) | N (max) | C (max) | H (max) | Al (max) | V (max) | Ti |
|---|---|---|---|---|---|---|---|---|
| Gr2 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | — | — | Balance |
Applications of Titanium Gr2 Bolt DIN912
Aerospace Industry:
Used in lightweight structural assemblies, fasteners, and components requiring corrosion resistance and high reliability.
Automotive Industry:
Applied in suspension systems, engine parts, and exhaust components to improve performance and reduce overall weight.
Cycling Industry:
Ideal for bike frames, stems, and other lightweight parts where both strength and low mass are important.
Marine Industry:
Perfect for use in ship hulls, underwater fittings, and rigging where exposure to seawater demands exceptional corrosion resistance.
Advantages of the Titanium Gr2 Bolt DIN912
-
Lightweight and High Strength: Offers a superior strength-to-weight ratio compared to steel.
-
Excellent Corrosion Resistance: Performs exceptionally in seawater, acids, and chlorides.
-
Non-Magnetic and Non-Toxic: Safe for sensitive applications and environments.
-
Durable and Long-Lasting: Maintains mechanical integrity under extreme temperatures and pressures.
-
Attractive Appearance: Can be polished or anodised for enhanced surface aesthetics.
-
Low Thermal Expansion: Ideal for applications requiring dimensional stability under temperature changes.
In summary, the Titanium Gr2 Bolt DIN912 combines lightweight efficiency, corrosion resistance, and strength, making it a premium choice for high-performance engineering and design applications across multiple industries.
