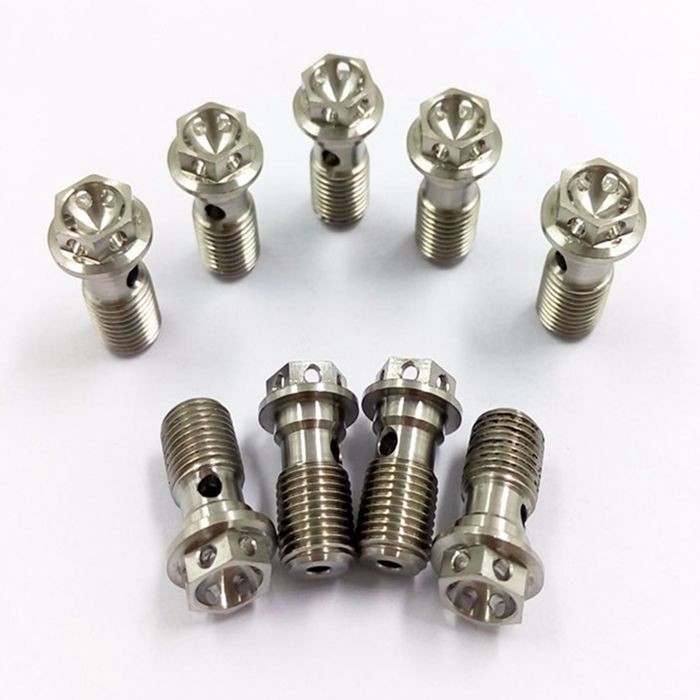

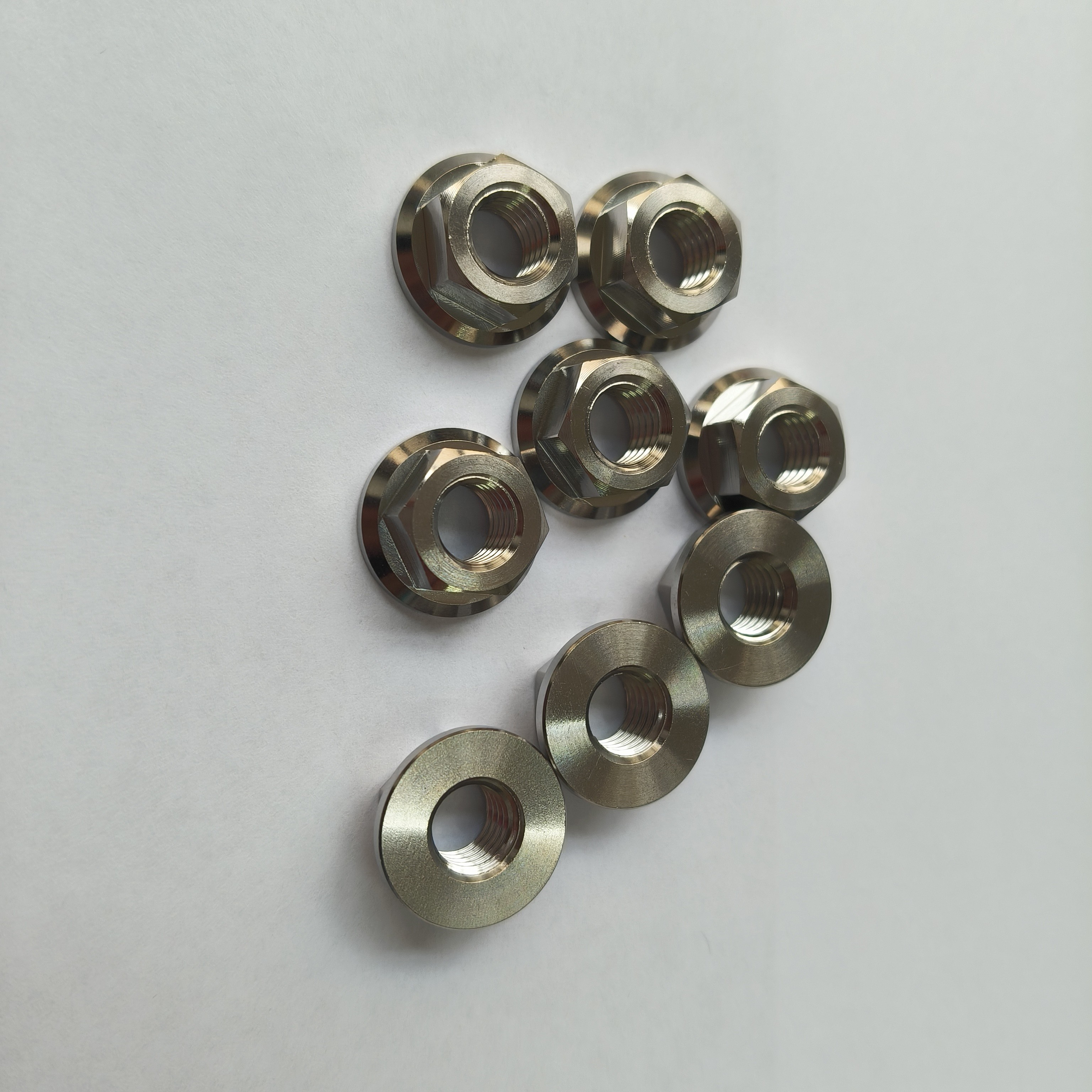

Titanium Grade 7 Bolt With Washer for Oil Gas And Aerospace
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Width | 6.5/8/9mm | Purity | 99.5% Min |
|---|---|---|---|

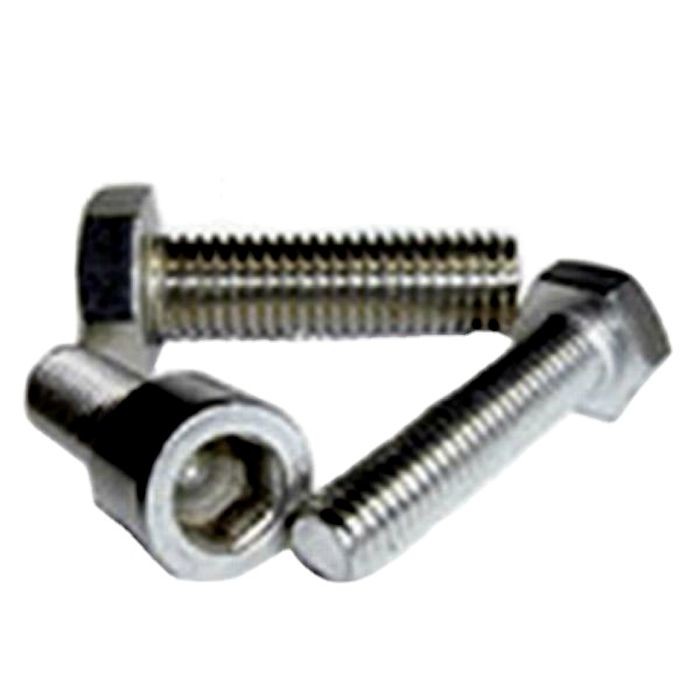

| Head Type | Hex Socket Round Head/allen Head | Size | M5 |
| Precision | 0.02mm | Packing | 100pcs In Poly Bag |
| Drive Style | Socket | Usage | Industrial |
| Length | 20mm | Finish | Polished |
| Pitch | 1.0, 1.25, 1.5, 2.0 | Processing | CNC |
| Materials | Titanium | Grade | Grade 5, Grade 2, Grade 7 |
| Temperature Resistance | High | ||
| Highlight | Hex Head Titanium Grade 7 Bolt,Anodizing Hex Head Titanium Bolt,Hex Head Titanium Bolt With Washer |
||
Product Description
Descriptions
Titanium Grade 7 Bolt With Washer is manufactured from a titanium-palladium alloy (Ti-0.15Pd), combining excellent corrosion resistance with high strength. These bolts are ideal for applications where durability, corrosion resistance, and ductility are critical.
Titanium Gr7 bolts feature a maximum operating temperature of 600°F (316°C), making them suitable for chemical processing, marine, and aerospace applications. Available in various standard sizes and finishes, they offer reliable performance even under harsh conditions.
Specifications
Grade: UNS R52400 (Titanium Gr7)
Size: M2–M30 (all standard sizes available, custom sizes possible)

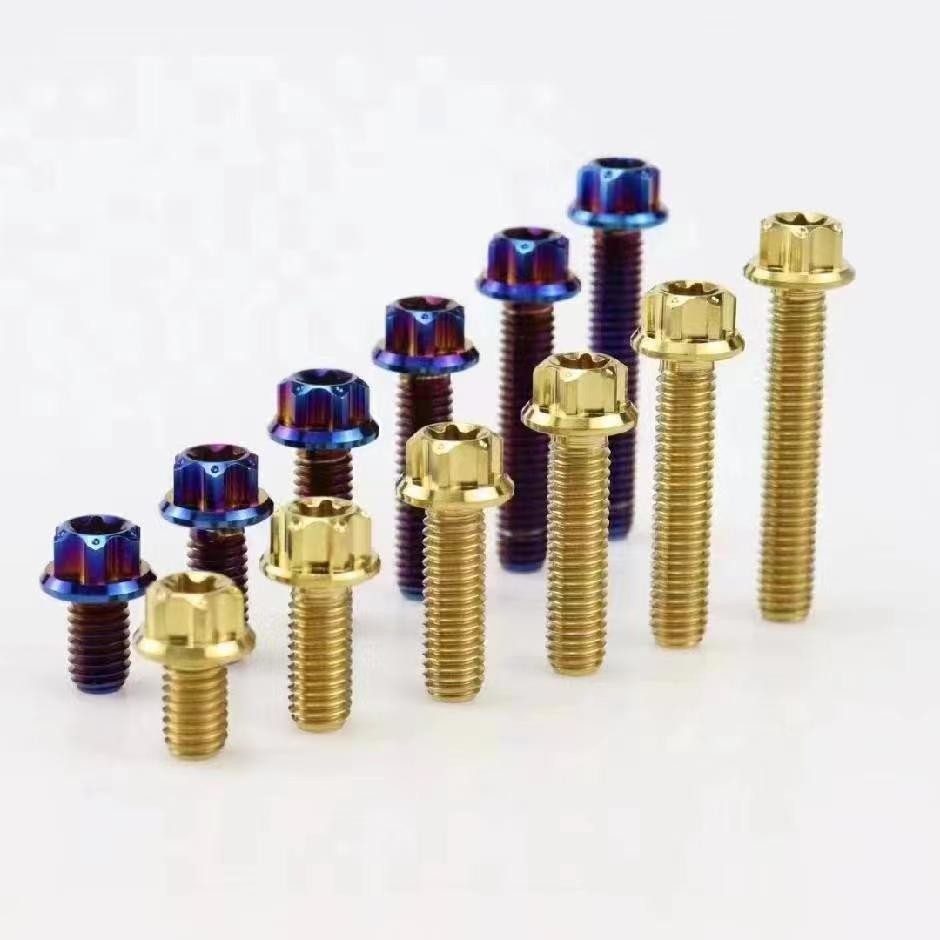

Color Options: Titanium natural, green, blue, gold, black, purple, rainbow
Pitch: 1.0 / 1.25
Material: Titanium-palladium alloy
Surface Finishes: Polished, Pickled, Anodized
Standards: DIN912, DIN914, DIN6921, DIN933, DIN7985, DIN965, DIN98, DIN7991

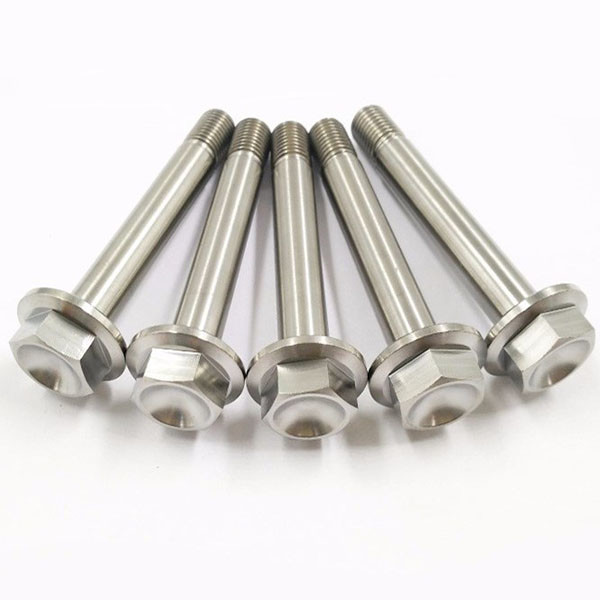

Head Style: Hex bolt, Flange bolt
Physical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Chemical Composition
| Grade | Fe Max | O Max | N Max | C Max | H Max | Pd Max | Al Max | Va Max | Ni Max | Mo Max | Ti Balance |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12-0.25 | – | – | – | – | Balance |
(Other titanium grades are available for comparison: Gr1, Gr2, Gr4, Gr5, Gr9, Gr12, Gr23)
Features of Titanium Grade 7 Bolt With Washer
-
Corrosion Resistance: Superior resistance due to a stable oxide layer and palladium addition, ideal for chemical and marine environments.
-
High Strength: Suitable for demanding applications, including aerospace, industrial machinery, and chemical processing.
-
Lightweight: Significantly lighter than steel or aluminum, reducing overall assembly weight.
-
Non-Magnetic: Prevents interference in electronic or sensitive equipment.
-
Low Thermal Expansion: Maintains shape and precision under high temperatures, ideal for precision engineering applications.
Applications:
Chemical processing equipment
Marine hardware and shipbuilding
Aerospace components
High-performance automotive applications
Medical and precision engineering equipment
