Gr12 Titanium SMLS Pipes OD 1.25Inch 31.75mm Titanium Heat Exchanger Tubes
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng Titanium |
| Certification | ISO9001:2015 |
| Model Number | Gr12 Titanium Heat Exchanger Tubes |
| Minimum Order Quantity | 5kg |
| Price | USD 23.5/KG - USD 24.6/KG |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium Grade 12 (Ti-0.3Mo-0.8Ni) | Diameter | 1.25 Inch 31.75mm |
|---|---|---|---|
| Wall Thickness | Wall Thickness 1mm/1.2mm/1.5mm/2mm/3mm | Surface | Pickling(Acid-washing) |
| Shape | Titanium Round Tube | TitaniSupply State | Annealed |
| Standard | ASTM B338, ASTM B337, ASTM B861 | Application | Chemical Processing, Desalination, Heat Exchanger |
| Advantage | Corrosion Resistance, Light Weight, Factory Supplier | Inventory | Large Stock, Ready To Go |
| Highlight | Gr12 Titanium SMLS Pipes,Titanium Heat Exchanger Tubes,1.25 Inch SMLS Pipes |
||
Product Description

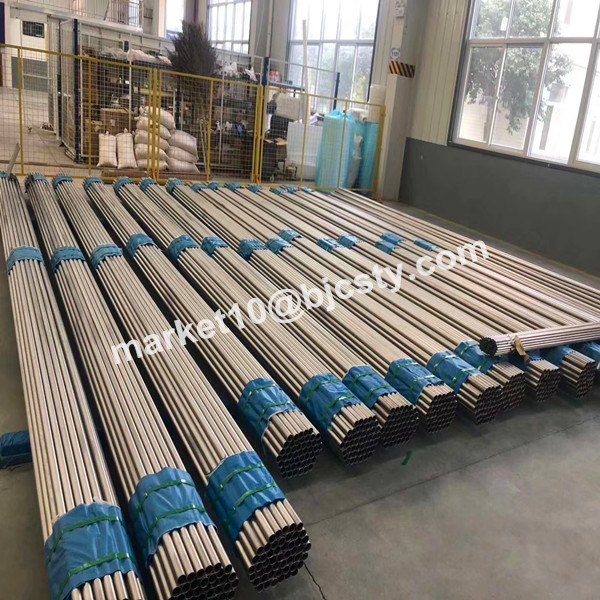

Gr12 Titanium SMLS Pipes OD 1.25Inch 31.75mm Titanium Heat Exchanger Tubes
Gr12 Titanium Tubes as a corrosion resistance titanium alloy tubes are most used as heat exchange tubings in Heat exchange equipment, such as tubular heat exchanger, coile pipe heat exchanger, serpentine tube heat exchanger, condenser, evaporator. We are titanium pipe manufacturer and titanium pipe supplier. Baoji City Changsheng Titanium Co. locates at Baoji City, because of the complete titanium material processing industry chain and mature processing technology, which also be called "Titanium Valley". We supply titanium seamless tubes in various sizes, and also stock titanium tubing for quick turnaround solutions. Titanium pipe alloy material price is competitive for any ot our clients from all over the world.
Detailed Information of Gr12 Titanium Heat Exchanger Tubes:
Grade: Titanium Grade 12 (Ti-0.3Mo-0.8Ni)
Standard: ASTM B338 ASTM B337 ASTM B861
Outside diameter: 31.75mm (1.25 inches)
Wall thickness: 1mm/1.2mm/1.5mm/2mm/3mm, etc,.
Supply state: Annealed
Type: Seamless pipe and round pipe
length:1000mm, 1500mm, 2000mm, 3000mm, 6000mm, 12000mm, as per detailed requirement.
Test: Ultrasonic test, Hydraulic test
Titanium Grade 12 Material Features:
Titanium Grade 12(Ti-0.3Mo-0.8Ni) is a corrosion resistance titanium alloy, it is a near alpha alloy developed to Improve the crevice corrosion of pure titanium. It contains 0.3% Mo and 0.8% Ni. It's not only strengthens the alloy, but also has good crevice corrosion resistance to high temperature, low PH chloride or weak reducing acid. Its corrosion resistance is significantly better than that of pure titanium and close to GR7 alloy. It also has good welding properties.
Mechanical Properties of Gr12 Titanium Heat Exchanger Tubes:
| Grade | Tensile strength,min | Yield strength,0.2% offset |
Elongation(%) |
||
| ksi (min) | MPa(min) | ksi (min) | MPa(min) | ||
| GR1 | 35 | 240 | 25 | 170 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR5 | 130 | 895 | 120 | 828 | 10E |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 483 | 15 |
| GR12 | 70 | 483 | 20 | 345 | 18 |
Industrial Applications of Titanium Heat Exchanger Tubes:
Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Medical industry
RFQ:
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2.What if I have some further questions or concerns which are not described above?
Please feel free to contact me via the E-mail market10 at bjcsty. com, or Call us at 1 78 688 73720.
3. Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4. Do you have an official website other than the sites here?
Sure. Please refer to our website at: www.bjcstytitanium.com.
5. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
6. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
Tag: titanium seamless tubes, seamless titanium tube grade 12, gr12 titanium pipes supplier, titanium pipe price.
