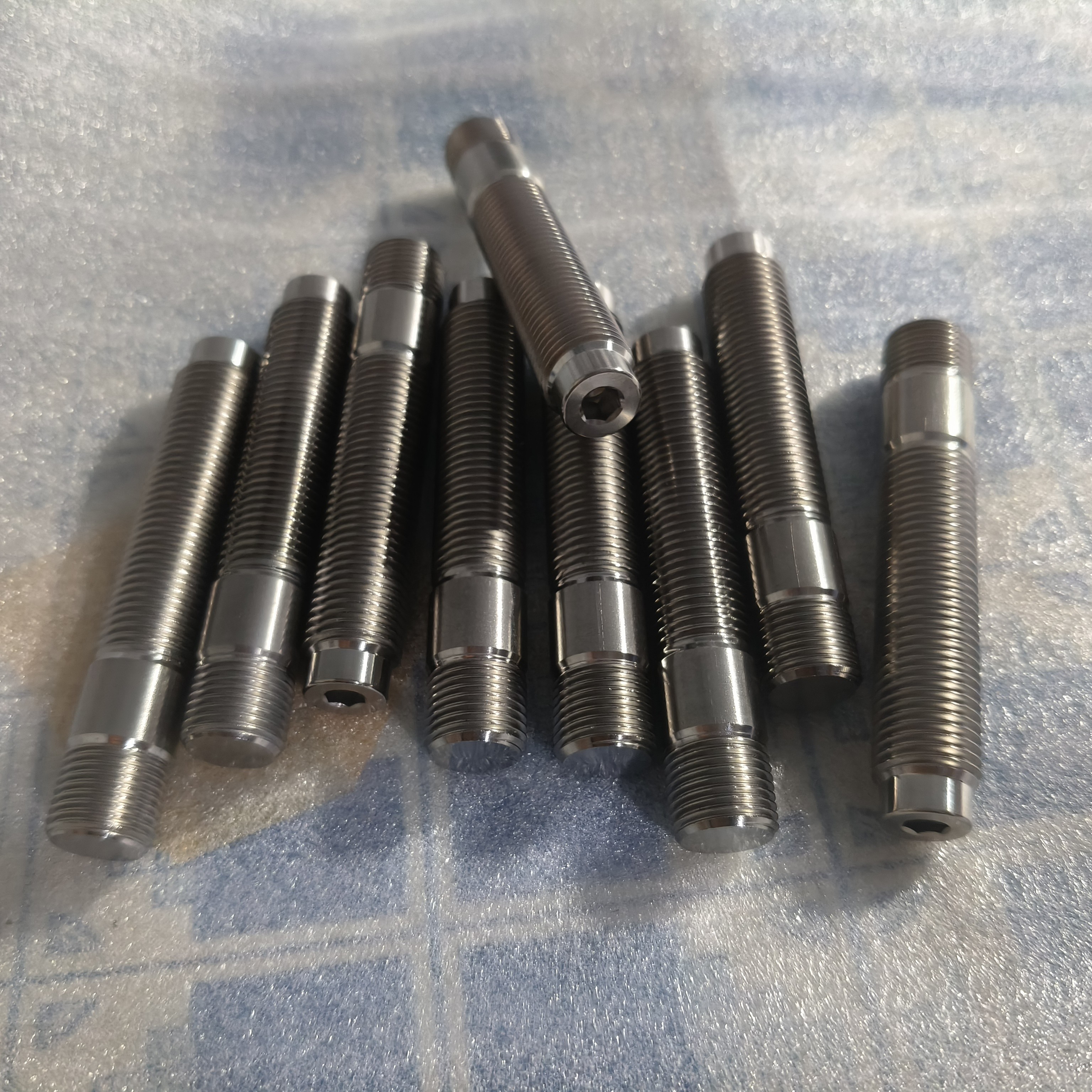

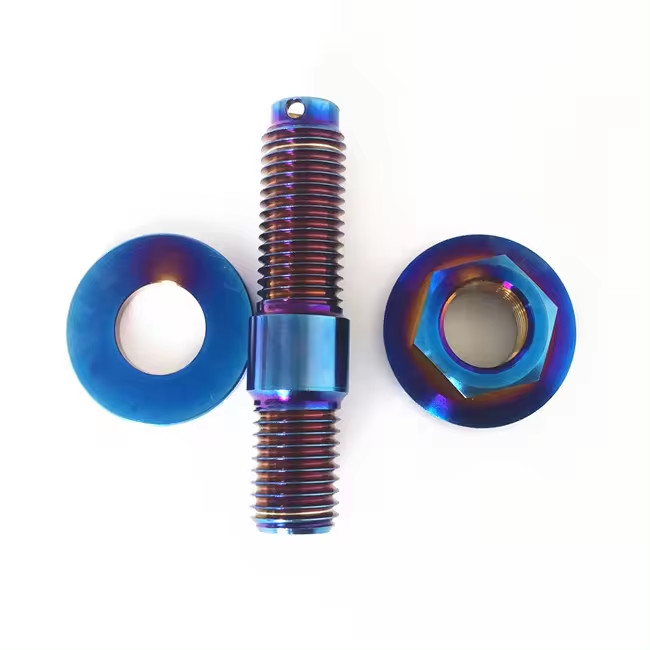

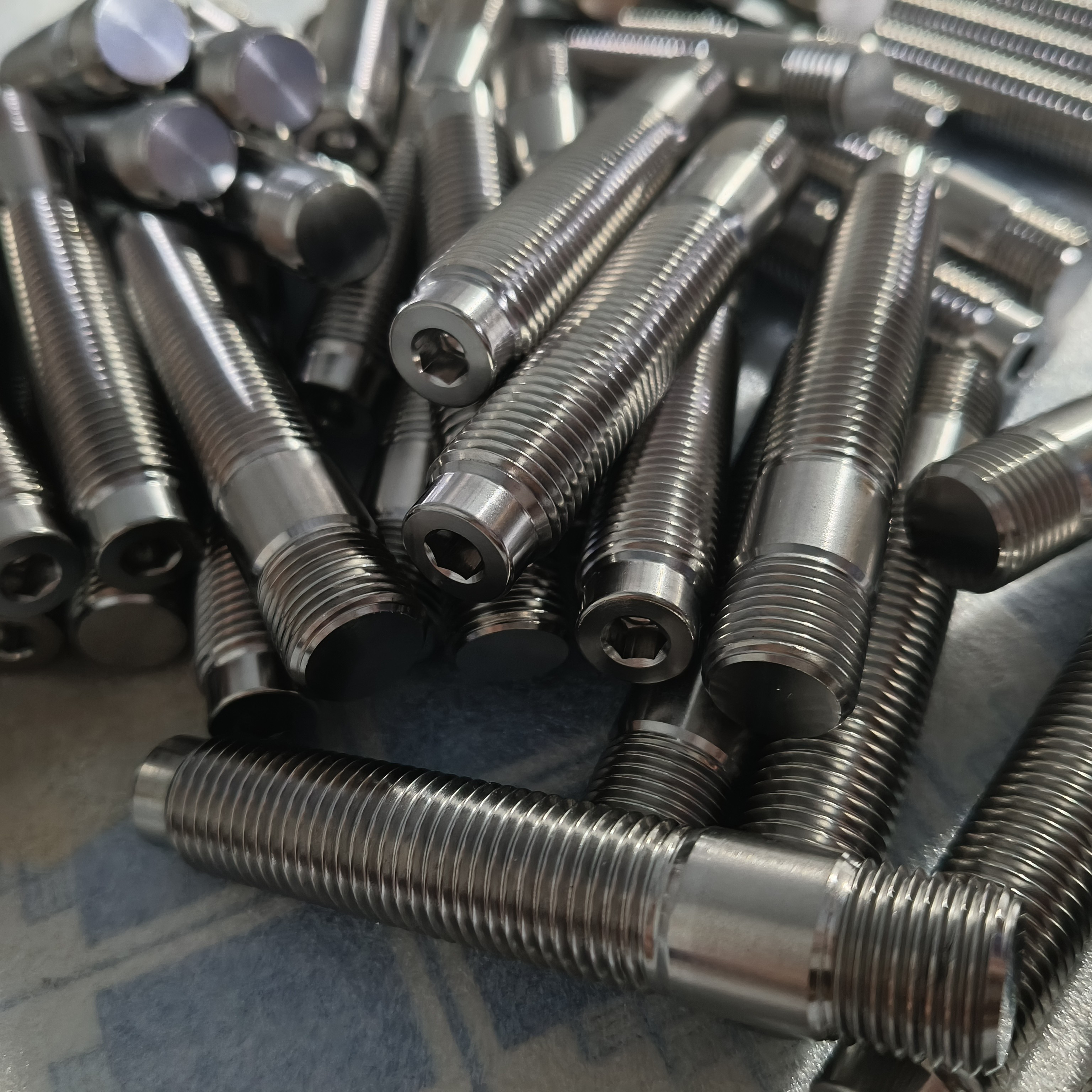

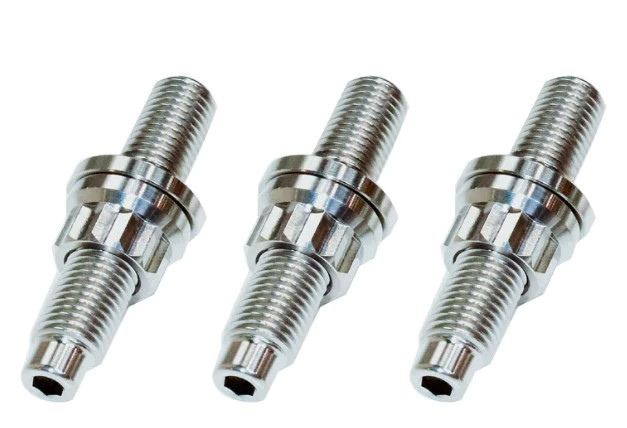

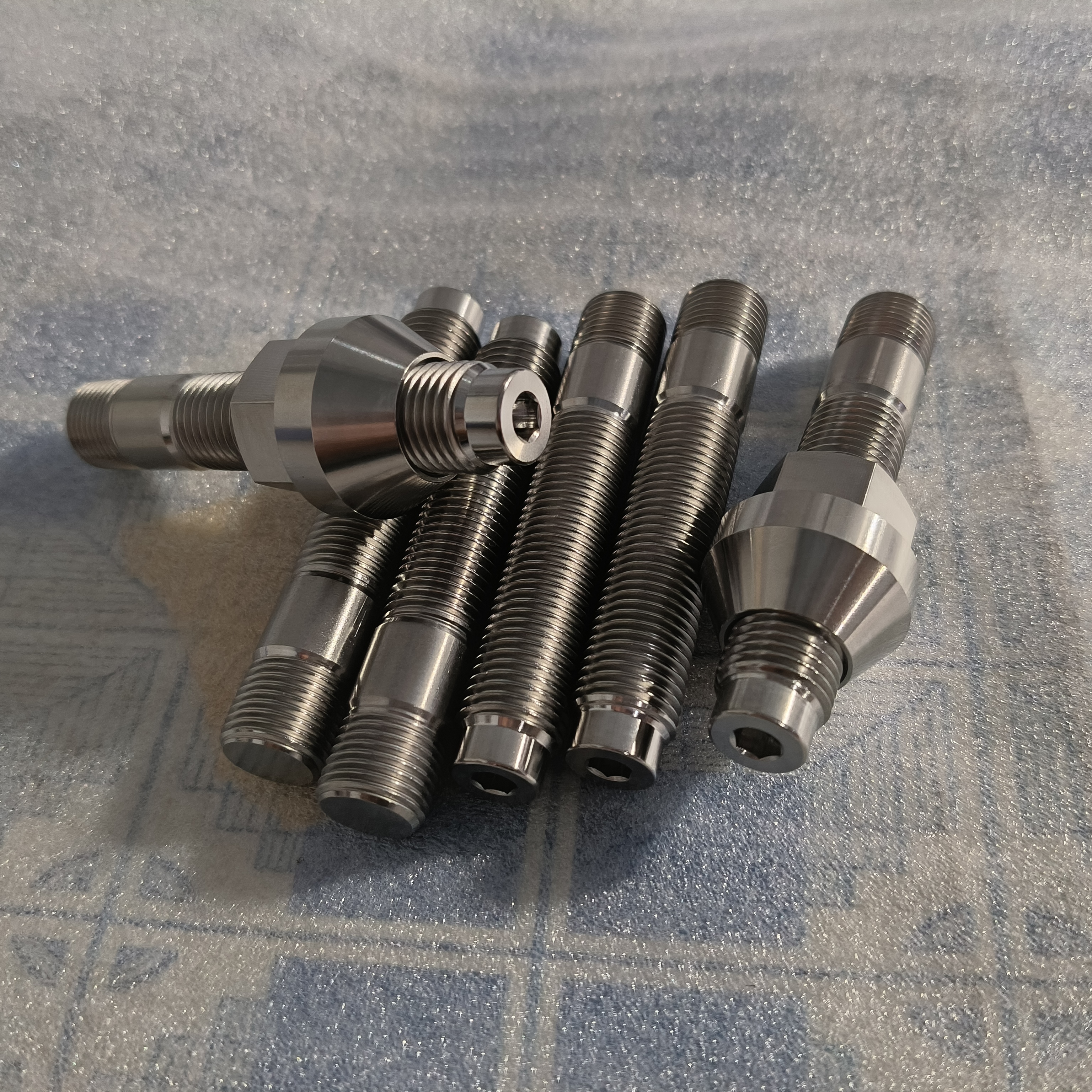

M14x80mm Wheel Bolts Fasteners For Automobile Racing Fabrication Performance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium And Titanium Alloy | Grade | Grade 1,Grade 5, Ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11 |
|---|---|---|---|
| Size | Various Sizes Available | Surface | Polished, Pickling |
| MOQ | 300PC | Color | Silver, Black,gold,purple,green.rainbow,blue |
| Technical | CNC,Stamping | Delivery Time | 7-10 Days |
| Warranty | 5years | Package | Packed With Standard Expot Carton Box |
| Head Type | Slotted Cheese Head | Usage | Industrial |
| Surface Treatment | Satin, Polish, Etc | Weight | About 2g/piece |
| Pitch | 1.25, 1.5 | Purity | 99.5% Min |
| Lead Time | 15days | Specification | GB/T5782-2000 |
| Powder Or Not | Not Powder | Total Length | 80mm |
| Highlight | DIN7991 Titanium Mountain Bike Bolts,Gr7 Titanium Mountain Bike Bolts,gr4 ti bicycle bolts |
||
Product Description
Description
Titanium slotted head bolts are strong, lightweight, and corrosion-resistant fasteners suitable for demanding applications. They are widely used in aerospace and automotive industries where both strength and weight reduction are critical.
Additionally, titanium slotted head screws are commonly utilised in marine, medical, and industrial equipment due to their superior corrosion resistance and biocompatibility.
These bolts are available in a variety of standards, grades, sizes, and colours to meet diverse engineering requirements.
Standards
DIN 963 – Titanium Slotted Countersunk Head Bolt
DIN 85 – Titanium Slotted Pan Head Bolt
DIN 84 – Titanium Slotted Cheese Head Bolt
Specifications
| Item | Description |
|---|---|
| Size | M1 – M20 (custom sizes available) |
| Color Options | Natural titanium, gold, blue, purple, black, rainbow |
| Surface Finish | Polished or anodised |
| Head Type | Slotted head |
| Thread Type | Metric coarse or fine |
| Standard | DIN963 / DIN85 / DIN84 |
Available Grades
| Grade | Description |
|---|---|
| Gr1 | Pure titanium, excellent ductility and corrosion resistance |
| Gr2 (R50400) | Commercially pure titanium with balanced strength and formability |
| Gr5 (Ti-6Al-4V, R56400) | High strength, most commonly used titanium alloy |
| Gr7 (R52400) | Titanium alloy containing Pd for enhanced corrosion resistance |
| Gr23 (Ti-6Al-4V ELI, RS6401) | Extra-low interstitial alloy for superior toughness and biocompatibility |
Physical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Chemical Composition (wt%)
| Grade | Fe | O | N | C | H | Pd | Al | V | Mo | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.20 | 0.18 | 0.03 | 0.08 | 0.015 | – | – | – | – | Balance |
| Gr2 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | – | – | – | – | Balance |
| Gr4 | 0.50 | 0.40 | 0.05 | 0.08 | 0.015 | – | – | – | – | Balance |
| Gr5 | 0.40 | 0.20 | 0.05 | 0.08 | 0.015 | – | 5.5–6.7 | 3.5–4.5 | – | Balance |
| Gr7 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12–0.25 | – | – | – | Balance |
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | – | 2.5–3.5 | 2.0–3.0 | – | Balance |
| Gr12 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | – | 0.6–0.9 | 0.2–0.4 | – | Balance |
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | – | 5.5–6.5 | 3.5–4.5 | – | Balance |
Advantages
-
High Specific Strength
With a density of only 4.51 g/cm³, titanium is lighter than steel yet significantly stronger. -
Excellent Corrosion Resistance
Titanium and its alloys perform exceptionally well in a wide variety of corrosive environments, including seawater and chemical media. -
Outstanding Heat and Low-Temperature Resistance
Titanium slotted head bolts maintain their performance from −250 °C to 600 °C without deformation. -
Non-Magnetic and Non-Toxic
Titanium is non-magnetic and biocompatible, making it ideal for medical and electronic applications. -
Superior Damping Properties
Titanium’s long vibration attenuation makes it suitable for acoustic, ultrasonic, and precision applications.
Applications
Aerospace and automotive fasteners
Marine engineering and shipbuilding
Chemical processing equipment
Medical implants and devices
Electronics and instrumentation
Industrial and architectural components
