Bicycle Stem Bolt with washer Titanium DIN 912

  • Bicycle Stem Bolt with washer Titanium DIN 912
  • Bicycle Stem Bolt with washer Titanium DIN 912
  • Bicycle Stem Bolt with washer Titanium DIN 912
  • Bicycle Stem Bolt with washer Titanium DIN 912
  • Bicycle Stem Bolt with washer Titanium DIN 912
  • Bicycle Stem Bolt with washer Titanium DIN 912
Place of Origin CHINA
Brand Name Changsheng
Certification ISO 9001
Model Number DIN
Minimum Order Quantity 100PC
Price 0.5USD/PC
Packaging Details packed with CARTOON BOX
Delivery Time 7-10days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000t/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service Drawings To Customize Finish Polished
Technics CNC Machined Sample Availabe
Application Industrial Equipment Wide Application Yes
Length M2-M64 Lead Time 15days
Biocompatibility Biocompatible For Medical And Dental Applications Package Packed With Scartoon Box
Corrosion Resistance Excellent Corrosion Resistance Easy To Install Easy To Install And Remove
Size Various Sizes Available Equipment CNC Machining Centres
Powder Or Not Not Powder
Highlight

M3 Titanium Fasteners

,

DIN98 Titanium Fasteners

,

Pickling titanium bicycle bolts
Leave a Message
Product Description

Description



Bicycle Stem Bolt with Washer Titanium is a precision-engineered fastener designed to securely attach a bicycle’s handlebars and stem to the fork steerer tube. This component plays a crucial role in maintaining handlebar stability, steering accuracy, and rider safety.

Manufactured from Titanium Grade 5 (Ti-6Al-4V), this bolt and washer assembly offers an excellent balance of high strength, light weight, and superior corrosion resistance. It is a popular upgrade for high-performance road bikes, mountain bikes, and racing bicycles where every gram and performance detail counts.

The bolt is typically installed using a torque wrench or adjustable wrench to ensure precise clamping force without damaging the carbon or aluminum stem components.

Specifications of Bicycle Stem Bolt with Washer Titanium

Material: Titanium Alloy Gr5 (Ti-6Al-4V)

Type: Stem Bolt with Integrated Washer

Application: Bicycle stem, handlebar, and steerer tube connection

Thread Size: M4–M8 (customizable)

Length: 10 mm – 50 mm (customizable)

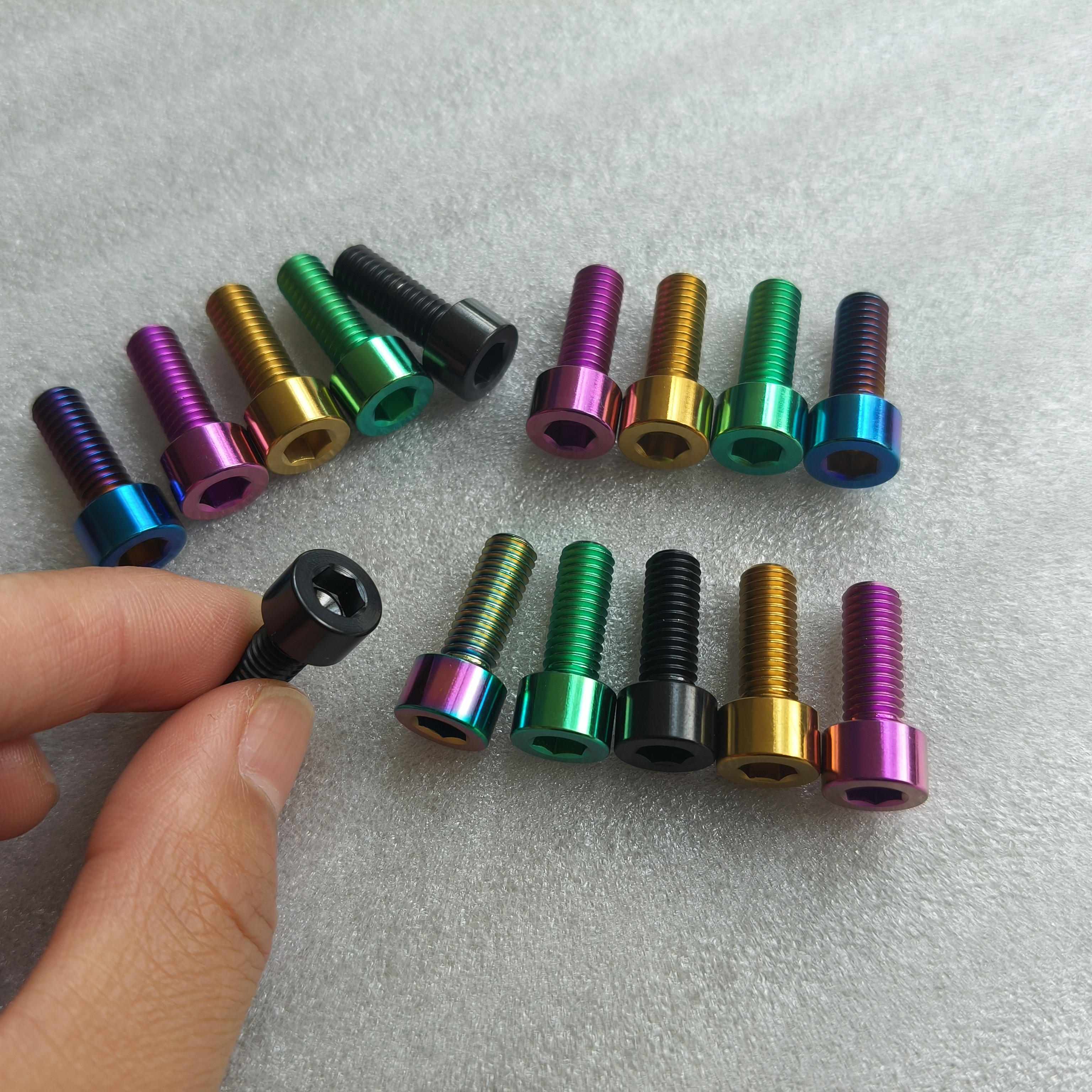

Finish: Natural titanium, anodized (gold, rainbow, blue, black, etc.)

Tool Interface: Hex or Torx drive

Physical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10

Chemical Composition

Grade Fe (max) O (max) N (max) C (max) H (max) Pd (max) Al (max) V (max) Ti
Gr5 0.40 0.20 0.05 0.08 0.015 — 5.5–6.7 3.5–4.5 Balance

Advantages of Bicycle Stem Bolt with Washer Titanium

  1. Lightweight Performance: Titanium is 40% lighter than steel, reducing overall bike weight and improving handling.

  2. Exceptional Strength: Grade 5 titanium offers high tensile and yield strength, ensuring reliable clamping and stability.

  3. Corrosion Resistance: Resistant to rust and oxidation, ideal for wet, humid, or coastal riding conditions.

  4. Durability and Longevity: Titanium bolts maintain strength and integrity over time, even under repeated torque stress.

  5. Aesthetic Appeal: Available in natural and anodized colors, enhancing both performance and visual appeal.

  6. Precision Fit: Compatible with most bicycle stems and steerer tubes, ensuring easy installation and secure alignment.

  7. Maintenance-Free: Titanium requires no coating or lubrication to prevent corrosion.

Applications

Road bicycles

Mountain bikes (MTB)

Gravel and cyclocross bikes

Racing and endurance bikes

Custom and high-performance bicycles
