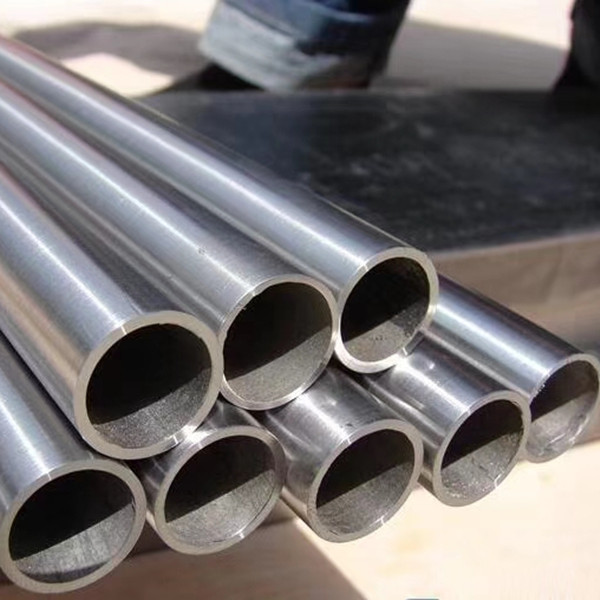

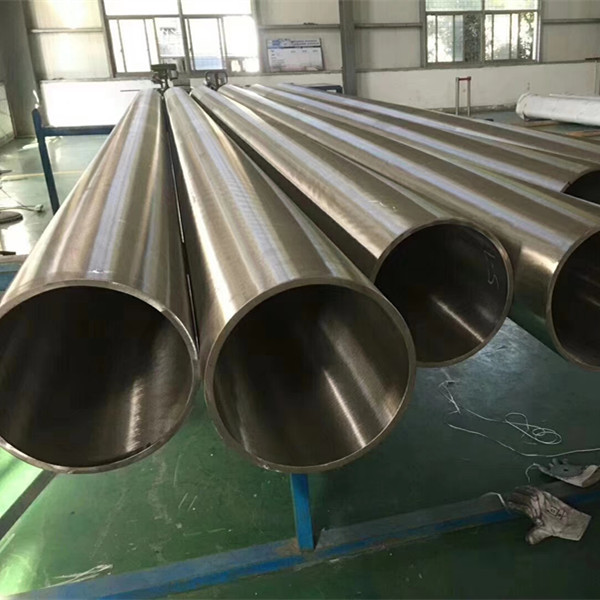

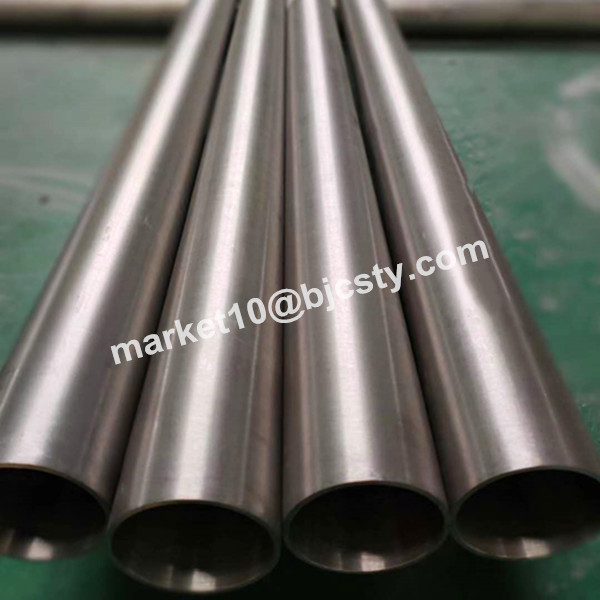

Grade 5 Ti Alloy Tube Gr5 Titanium Seamless Pipe For Hydraulic System
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Gr5 Titanium Alloy Pipes |
| Minimum Order Quantity | 5kg |
| Price | USD 30.0/KG - USD 48.0/KG |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium Alloy Gr5 And Gr23 (Ti 6Al4V Eli) | Diameter | 6mm To 219mm |
|---|---|---|---|
| Wall Thickness | 3mm To 30mm | Surface | Polished Bright, Machined Smooth |
| Shape | Titanium Round Tube, Titanium Square Pipe | Supply State | Anealed |
| Standard | ASTM B338, ASTM B337, ASTM B861 | Application | Oil Pipe,Pipeline,Aircraft Hydraulic Systems |
| Advantage | Good Welding Propertity, Ligh Weight, Corrosion Resistance | Origin | Baoji City, China |
| Highlight | ASTM B337 gr5 titanium tube,Alloy gr5 titanium tube,Gr23 titanium alloy tube |
||
Product Description
Top-Quality Grade 5 Ti Alloy Tube Gr5 Titanium Seamless Pipe For Hydraulic System
Grade: Titanium alloy Gr5(Ti 6Al4V)
Standard: ASTM B338 ASTM B337 ASTM B861
Outside diameter: 6mm to 219mm
Wall thickness: 3mm to 30mm
Supply state: Annealed
Type: Seamless
length within:6m
Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling, Extruding
Company Name & Location information:
Baoji City Changsheng Titanium Co., Ltd.
Baoji City Changtai Metals Trading Co., Ltd. (Branch company)
Add: No. 26 Baotai Road Weibin District Baoji Shaanxi China
Baoji City Changtai Metals Trading Co., Ltd. (Branch company)
Add: No. 26 Baotai Road Weibin District Baoji Shaanxi China
We offer a wide range of pure titanium and titanium alloy pipes and tubes and we can manufacture customized seamless and welded titanium pipes and tubes according to the specifications provided by clients.
Alloy Gr5 ,Ti6AL4V, is one of the most popular Ti alloys because of its comprehensive mechanical, physical and chemical properties.
Titanium Grade 5 / Titanium 6AL4V Ti -6Al-4V is heat treatable and has high strength and ductility along with good weldability and fabricability.
Keywords: Titanium 6AL4V titanium tube, Titanium bend tubes, Titanium Tubes Factory, Seamless Titanium Tubes, Titanium Oil Pipe, Titanium Pressure Pipes.
Chemical Composition of Gr5 Titanium Alloy Pipe:
| Ti-6Al-4V Alloy Chemical Composition (wt)% | |||||||||
| Grade | Element | Impurity ≤ | |||||||
| Al | V | Ti | Fe | C | H | O | Other Elements | ||
| Single | Total | ||||||||
| Grade 5 | 5.5 - 6.8 | 3.5 - 4.5 | Balance | 0.30 | 0.10 | 0.015 | 0.20 | 0.10 | 0.40 |
Mechanical Properties of Gr5 Titanium Alloy Pipe:
|
ASTM Grade
|
Alloy composition
|
Tensile strength
|
Yield strength
|
Elongation %
|
||
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|||
|
GR1
|
Unallyed Ti(Pure)35A-CP1
|
35
|
240
|
25
|
170
|
24
|
|
GR2
|
Unallyed Ti(Pure)50A-CP2
|
50
|
345
|
40
|
275
|
20
|
|
GR5
|
Ti 6Al 4V
|
130
|
895
|
120
|
828
|
10E
|
| GR7 |
Ti-Pd
|
50
|
345
|
40
|
275
|
20
|
|
GR9
|
Ti 3AI 2.5V
|
90
|
620
|
70
|
483
|
15F
|
| GR23 | Ti 6Al 4V Eli | 120 | 828 | 110 | 760 | 10 |
Industrial Applications of Gr5 Titanium Alloy Pipe:
Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
Medical industry
Nuclear industry
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.
RFQ:
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM B338 / ASME SB338 or other you asked.
3. Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
