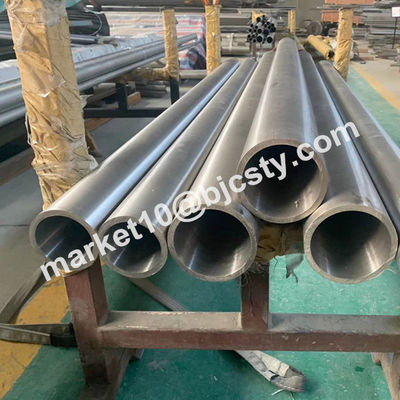

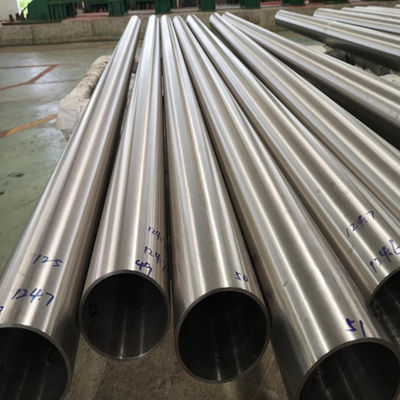

Seamless Titanium Pipe Gr23 Oil Drilling Riser Ti 6Al4V Eli Tubes
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Seamless Titanium Pipe Gr23 |
| Minimum Order Quantity | 5kg |
| Price | USD 30.0/KG - USD 48.0/KG |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 15 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Titanium Alloy Gr23 (Ti 6Al4V Eli) | Diameter | 6mm To 219mm |
|---|---|---|---|
| Wall Thickness | 3mm To 30mm | Surface | Polished Bright, Machined Smooth |
| Shape | Titanium Round Tube, Titanium Square Pipe | Supply State | Anealed |
| Standard | ASTM B338, ASTM B337, ASTM B861 | Application | Oil Pipe,Pipeline,Aircraft Hydraulic Systems |
| Advantage | Good Welding Propertity, Ligh Weight, Corrosion Resistance | Origin | Baoji City, China |
| Highlight | 219mm Seamless Titanium Tubing,12m Seamless Titanium Tubing,Gr23 oil rig riser |
||
Product Description
Seamless Titanium Pipe Gr23 Oil Drilling Riser Ti 6Al4V Eli Tubes
Grade: Titanium alloy Gr23
Standard: ASTM B338 ASTM B337 ASTM B861
Outside diameter: 88.9mm/108mm/114.3mm/127.0mm/133mm/145mm/159mm/168mm/219mm/247mm, etc.
Wall thickness: 6mm/8mm/9mm/10mm/17mm,etc.
Supply state: Annealed
Type: Seamless tube
length within:12m
Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling, Extruding
Grade 5 ELI is an improved material type of Ti 6Al4V. The main difference is the different content of Al and the lower content of interstitial elements Fe, N, H and O. Ti 6Al4V ELI titanium alloy has the advantages of good biocompatibility, low elastic modulus, low density, good anti-corrosion performance, non-toxic, high yield strength, long fatigue life, large plasticity at room temperature, easy to form and so on.
We offer a wide range of Gr23 titanium alloy pipes, and we can manufacture customized seamless titanium pipes and titanium tubes according to the specifications provided by clients.
Ti-6Al-4V ELI has an improved ductility, toughness in air, and saltwater environments. It is also used in a non-aged condition for maximum toughness.
Keywords: Titanium 6AL4V ELI titanium tube, Titanium bend tubes, Titanium Tubes Factory, Seamless Titanium Tubes, Titanium Oil Pipe, Titanium Pressure Pipes.
Mechanical Properties of Seamless Titanium Pipe:
|
ASTM Grade
|
Alloy composition
|
Tensile strength
|
Yield strength
|
Elongation %
|
||
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|||
|
GR1
|
Unallyed Ti(Pure)35A-CP1
|
35
|
240
|
25
|
170
|
24
|
|
GR2
|
Unallyed Ti(Pure)50A-CP2
|
50
|
345
|
40
|
275
|
20
|
|
GR5
|
Ti 6Al 4V
|
130
|
895
|
120
|
828
|
10E
|
| GR7 |
Ti-Pd
|
50
|
345
|
40
|
275
|
20
|
|
GR9
|
Ti 3AI 2.5V
|
90
|
620
|
70
|
483
|
15F
|
| GR23 | Ti 6Al 4V Eli | 120 | 828 | 110 | 760 | 10 |
Industrial Applications of Seamless Titanium Pipe:
Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
Medical industry
Nuclear industry
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.
RFQ:
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM B338 / ASME SB338 or other you asked.
3. Can you provide samples? Is there a charge?
Samples can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
Tags: Gr23 titanium pipe, titanium Oil Pipe riser, Grade 23 titanium alloy pipe manufacturer.
