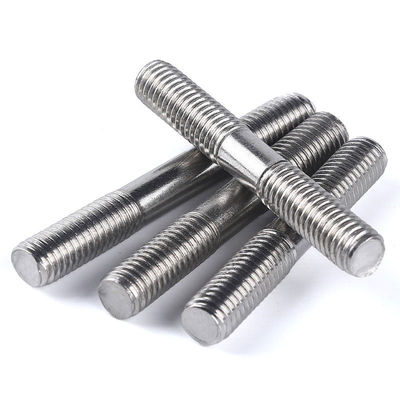

DIN939 Titanium Stub Bolt Titanium Thread Screw For Industrial fasteners
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium | Grade | Grade 1,Grade 5, Ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11 |
|---|---|---|---|
| Size | M3-M22 And Customized | Surface | Polished, Pickling，Anodizing |
| MOQ | 300PC | Technical | CNC,Stamping |
| Color | Silver, Black,gold,purple,green.rainbow,blue | Delivery Time | 7-10 Days |
| Highlight | Alkali Resistant Titanium Fasteners,Dacromet Titanium Fasteners,Gr2 drilled titanium bolts |
||
Product Description
Descriptions
DIN939 Titanium Stub Bolt is used in many applications where a high level of strength and durability is required.
DIN939 Titanium Stub bolt is commonly used in the aerospace and automotive industries, as well as for industrial and marine applications.
DIN939 Titanium Stub screw is designed to provide a strong, secure connection between two components.
DIN939 Titanium Stub screw features an external flange that increases the surface area contact between the two parts, providing greater strength and a better seal.
Titanium stub bolts are available in a range of sizes and styles to meet different needs.
Advantages
1. High specific strength. The density of titanium is 4.51g/cm³, which is higher than aluminum but lower than steel, copper, and nickel, but its strength is much higher than other metals. Titanium stub bolts made of titanium alloy are light and strong.
2. Titanium stub screw has good corrosion resistance. Titanium and titanium alloys are stable in many media, and Titanium is suitable for various corrosive environments.
3. Stub screw titanium has a good heat resistance and low-temperature resistance. Titanium can work normally in a high temperature of 600°C and a low temperature of minus 250°C and can maintain its shape without changing.
4. Stub bolt titanium is Non-magnetic and non-toxic. Titanium is a non-magnetic metal, and it will not be magnetized in a large magnetic field; Titanium is not only non-toxic but also has good compatibility with the human body.
5. Stub bolt titanium is strong damping resistance. After titanium is subjected to mechanical vibration and electrical vibration, compared with steel and copper metals, its own vibration attenuation time is the longest. Utilizing this performance, the Din934 Titanium Hex nut can be used as a tuning fork, a vibrating element of an ultrasonic pulverizer in medicine, and a vibrating film of a high-end audio speaker.
Stock
1. Grade:Gr2, Gr5(Ti-6AL-4V); UNS 50400 and UNS R56400
2. Size: M1-M90 DIN939 Titanium Stub bolt, customized size acceptable
3. Titanium color, green, blue, gold, black, and purple Titanium Stub bolt
4. Pitch:1.0/1.25/1.5/2.0 Titanium Stub screw
Physical Properties of DIN939 Titanium Stub bolt | |||
| Grade | Tensile strength MPA | Yield strength MPA | Elongation % |
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Composition of DIN939 Titanium Stub bolt | |||||||||||
| Grade | Fe Max | O | N | C | H | Pd Max | Al | Va Max | Ni Max | Mo Max | |
| / | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | ||||||
| Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | ||||||
| Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | ||||||
| Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | ||||
| Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | |||||
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | ||||
| Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | ||||
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | ||||
| Ti | Balance | ||||||||||
Detail Drawing of DIN939 Titanium Stub bolt
Picture showing
Applications
DIN939 Titanium Stub bolt is one of the most popular types of fasteners used in a variety of industries.
DIN939 Titanium Stub bolt is typically used to secure two objects together, such as two pieces of metal or two pieces of wood.
Titanium Stub screw is also used to hold parts together when they need to be bolted down.
Titanium Stub screw is lightweight, strong, and highly resistant to corrosion and rust.
Titanium Stub bolts are also more resistant to fatigue than traditional steel studs, so titanium Hex nuts are often used in applications where fatigue is a concern.
Titanium Stub bolt is commonly used in the aerospace, automotive, and marine industries, as well as in the construction, electrical, and plumbing industries.
