Titanium Clad Copper Bar T1 T2 1.0mm-2.5mm electrolysis electroplating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Pure Titanium Copper T1 T2 | Standard | GB/T12769-2003 ASTM B432 |
|---|---|---|---|
| Shape | Flat Bar | Advantage | Acid Resistance High Performance |
| Technique | Rolled | Application | Electrolysis Electroplating Hydrometallurgy |
| Surface | Polished | Certificate | ISO 9001:2015 |
| Highlight | 1.0mm Titanium Clad Copper,T2 Titanium Clad Copper,Mirror Finished titanium alloy bar |
||
Product Description
Titanium Clad Copper Bar T1 T2 1.0mm-2.5mm electrolysis electroplating
Titanium clad copper rod also known as titanium copper composite rod, a certain thickness of titanium layer is coated on a copper rod, which is the main component of the metal anode. It combines the excellent conductivity of copper with the excellent corrosion resistance of titanium. It is mainly used in electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell under the condition of strong corrosion. It is a kind of high quality electrode material.
|
Titanium Clad Copper
|
|
|
Substrate
|
Copper T1 T2; Aluminium, etc.
|
|
Cladding Materials
|
Titanium, Zirconium, Nickel, Stainless steel(304, 316L), etc.
|
|
Cladding Thickness
|
Normally 1.0mm - 2.5mm
|
|
Standard
|
GB/T12769-2003 ASTM B432
|
|
Specification |
Wire: 2 - 6.35mm Flat: side length 10mm - 30mm
(Other materials and specifications can be produced according to customer requirements.)
|
|
Shape
|
round, drum-shaped, square, flat
|

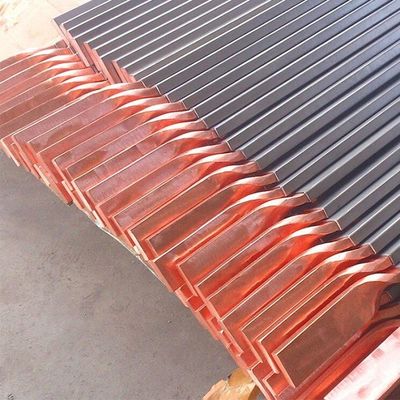

2: Product Show:
3. Advantages of titanium clad copper bar
(1) Strong corrosion resistance, whether in industrial areas, heavily polluted urban areas, rural areas, or coastal areas, the surface of titanium does not change color after years.
(2) Good mechanical properties. The tensile strength of industrial pure titanium is higher than that of ordinary carbon structural steel.
(3) Good resistance to epidemic diseases and creep resistance.
(4) No magnetization effect, industrial pure titanium resistivity and thermal conductivity are similar to stainless steel.
(5) Industrial pure titanium is a self-protecting metal, and the surface scratches can heal automatically.
(6) Industrial pure titanium is used for compounding in the annealed state, and the processability is good (similar to stainless steel)
(7) The density of industrial pure titanium is 4.5X103kg / m3, which is 1.7 times of aluminum and 60% of steel. Good plasticity, elongation ≥30
(8) The surface can be subjected to various treatments, such as hair treatment, mirror treatment, or tapered treatment, and can also be processed into a variety of colors such as red, black, and white.
4. Application: electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell
5. Our strenghts
1) Competitive price
2) Reliable quality on the base of the same price
3) Timely delivery as your requirements
4) Professional service to cut much purchasing costs down
We can provide a variety of custom shapes and sizes.Our products are widely used in electron,plating,petrol-chemical and chemic
According to customer requirements,we can produce different specifications of titanium clad copper, zirconium clad copper, stainless steel clad copper, titanium copper, titanium copper composite pipe and composite wire, but also the different shapes of bending and welding.
