Dn15 BW45 45 Degree Gr9 Titanium Elbow Fittings factory for oil pipe

Place of Origin China Baoji
Brand Name CSTY
Certification ISO9001
Model Number CSTY-PF
Minimum Order Quantity 10pcs
Price 10-300USD/Pc
Packaging Details Caroton Boxes or Export Wood Case Or As Client Requried
Delivery Time 15-30days
Payment Terms L/C, T/T or Negoation
Supply Ability 10000Pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Titanium Gr1 Gr2 Gr5 Gr7 Gr9 Standard ASME B16.9
Surface Sand Blast /Acid Pickling/polished Size DN15-2000
PN 1.0MPa OEM We Can Offer As Your Drawing
High Light

BW45 Elbow Titanium Buttweld Fittings


Gr9 Titanium Buttweld Fittings


Dn15 weld 45 degree elbow

Leave a Message
Product Description

Titanium BW45 Elbow LR Titanium Pipe Fitting factory For Oil Pipe

From 1960s, more countries began to use titanium material in chemical system of civilian industries. Titanium pipe fitting (Long Radius Titanium Elbow) is mainly used to transport severe corrosive medium. Titanium metal is used as one of corrosion resistant structural materials and is used in chemical engineering devices, which has established the position of titanium. Titanium long radius elbow is the ideal material to be used in the pipelines to transport chemical corrosive medium.The life span of pipeline depends on the pipe fitting. Titanium pipe fitting also draws more and more engineering technical personnels’ attention. Especially the standardization of titanium pipe fitting is much more important.


Application :

Structure Pipe, Gas Pipe, Hydraulic Pipe, Chemical Fertilizer Pipe


Material:Gr1 Gr2 Gr5 Gr7 Gr9 ETC.,If Quanlity More ,Others Material Can Be Offer As Well .


More Service :Can Be offer As Your Drawing

DN NPS OD at bevel 45 Elbow LR
15 1/2 21.3 16
20 3/4 26.7 19
25 1 33.4 22
32 1 1/4 42.2 25
40 1 1/2 48.3 29
50 2 60.3 35
65 2 1/4 73.0 44
80 3 88.9 51
100 4 114.3 57
125 5 141.3 64
…… …… …… ……
1800 72 1829.0 1137
1900 76 1932.0 1199
2000 80 2032.0 1263

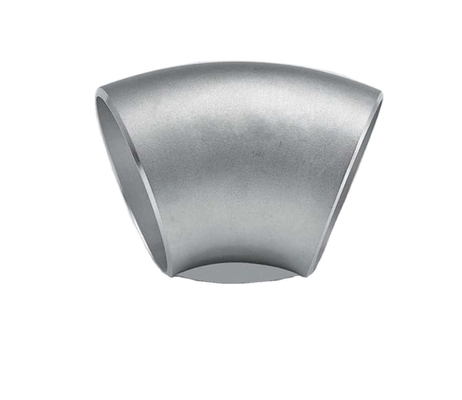

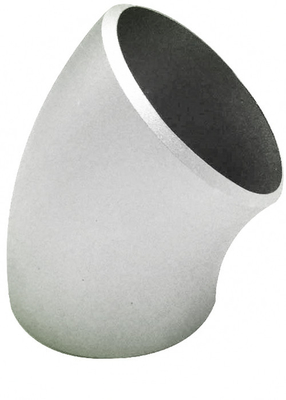

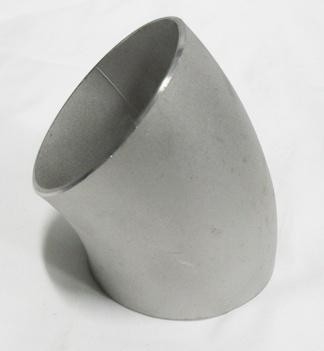

Dn15 BW45 45 Degree  Gr9 Titanium Elbow Fittings factory for oil pipe 0

Dn15 BW45 45 Degree  Gr9 Titanium Elbow Fittings factory for oil pipe 1


1. Are you the manufacturing or trading company?

Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.

2. Do you have a dedicated R & D team? Can you design a product for us?

We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM or other you asked.

3. Can you provide samples? Is there a charge?

Samples can be provided for a fee.

4. What is your payment method?

We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.

5. How long is your delivery time?

Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.

6. After-sales products, how to deal with problems?

Based on our statistics for each year, the probability of problems with titanium products is around 0.8%. There are two main reasons for the problem:

1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear.

2) 5% is an unexpected situation and the extension of the construction period.

3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the surface is damaged.

7. What is your company's response to the product in question?

1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability.

2) We are 100% responsible for problems caused by damaged packaging during transportation.

Tag:Titanium  BW 45 elbow,titanium elbow tee ,le elbow fittings,titanium fitting
