OD108mm OD114mm Big Diameter Titanium Round Tubes Seamless ASTM B861 for Seawater Pipelines
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO9001:2015 |
| Model Number | Big Diameter Titanium Round Tubes Seamless |
| Minimum Order Quantity | 5kg |
| Price | USD 25.0/KG - USD 35.0/KG |
| Packaging Details | Soft film wrapped inside, export standard crate outside. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Pure Titanium Gr1/Gr2,Titanium Alloy, Gr5(Ti6Al4V) | Diameter | 6mm To 219mm |
|---|---|---|---|
| Wall Thickness | 0.9mm To 30mm | Surface | Polished Or Machined Bright Surface |
| Shape | Titanium Round Tube, Titanium Square Pipe | Stocks | OD100mm/108mm/114mm/133mm/168mm/219mm/247mm,etc. |
| Standard | ASTM B338, ASTM B337, ASTM B861 | Application | Oil Pipe, Pipeline, Aircraft Hydraulic Systems |
| Advantage | Good Welding Propertity, Corrosion Resistance | Tube Origin | Baoji City, China |
| Highlight | 108mm Seamless Titanium Tubing,6m Seamless Titanium Tubing,133mm titanium seamless pipe |
||
Product Description

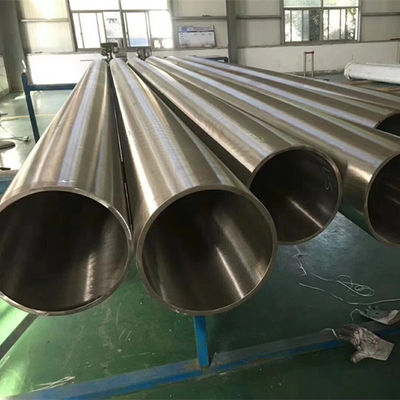

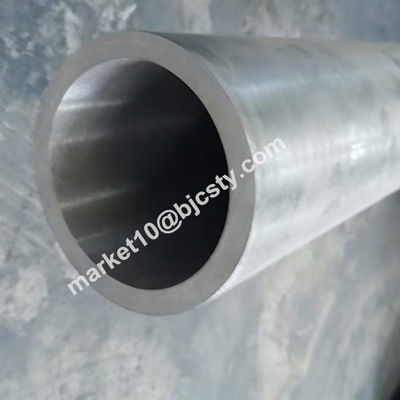

Big Diameter Titanium Round Pipe Seawater Pipelines OD108mm OD114mm
Material: Pure titanium
Designation: Gr1 and Gr2
Outside diameter: OD108mm and OD 114mm
length within:6m
Surface: Pickling, machined, polished
Standard: ASTM B338 ASTM B337 ASTM B861
Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling, Extruding, Hot Expanding
Custom service: Other dimensions will be supplied upon request.
Round Titanium Tubes Dimension A:
OD108mm x Wall thickness 3mm/3.5mm/4mm/4.5mm/6mm/7mm/8mm/10mm
Round Titanium Pipes Dimension B:
OD114mm x Wall thickness 3mm/4mm/5.5mm/6mm/10mm
Why choose our big diameter titanium tubes?
- It is seamless, good pressure capacity
- High precision
- High finish surface, excellent flatness
- It could be used for direct processing, fabrication, and machining
- Large stock, small quantity order, and short lead time
- Stable quality, on-time delivery
Why choose titanium tubes?
- High strength. The density of titanium is generally around 4.51g/ cm3, which is only 60% of that of steel.
- High thermal strength, the use temperature is several hundred degrees higher than the aluminum alloy, in the medium temperature can still maintain the required strength, can work in the temperature of 450 ~ 500℃ for a long time.
- Good corrosion resistance. Titanium works in humid atmosphere and seawater medium, and its corrosion resistance is far better than stainless steel;Especially strong resistance to pitting corrosion, acid corrosion and stress corrosion;To alkali, chloride, chlorine organic goods, nitric acid, sulfuric acid and other excellent corrosion resistance.But titanium has poor corrosion resistance to reducing oxygen and chromium salt media.
- Good low temperature performance. Titanium can maintain mechanical properties at low and ultra-low temperatures.Titanium with good low temperature performance and very low interstitial elements, therefore, titanium alloy is also an important low temperature structural material.
- Titanium is a non-magnetic metal, in a large magnetic field will not be magnetized, and non-toxic.
- Good heat transfer performance. Although the thermal conductivity of titanium metal is lower than carbon steel and copper, but because of the excellent corrosion resistance of titanium, the wall thickness can be greatly reduced, and the heat transfer mode between the surface and steam is droplet condensation, reducing the heat group, titanium surface without scaling can also reduce the thermal resistance, so that the heat transfer performance of titanium is significantly improved.
- Low modulus of elasticity. The elastic modulus of titanium is 106.4GPa at room temperature, which is 57% of that of steel.
Mechanical Properties of Titanium:
|
ASTM Grade
|
Alloy composition
|
Tensile strength
|
Yield strength
|
Elongation %
|
||
|
ksi
|
Mpa
|
ksi
|
Mpa
|
|||
|
GR1
|
Unallyed Ti(Pure)35A-CP1
|
35
|
240
|
25
|
170
|
24
|
|
GR2
|
Unallyed Ti(Pure)50A-CP2
|
50
|
345
|
40
|
275
|
20
|
|
GR5
|
Ti 6Al 4V
|
130
|
895
|
120
|
828
|
10E
|
| GR7 |
Ti-Pd
|
50
|
345
|
40
|
275
|
20
|
|
GR9
|
Ti 3AI 2.5V
|
90
|
620
|
70
|
483
|
15F
|
Industrial Applications of Titanium Seamless Tube:
Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry
Medical industry
Nuclear industry
Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.
