DIN6923 Titanium Flange Nut Hexagon Nut With Flange for Automobile
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium | Grade | Grade 5, Ti-6al-4v,grade 2,grade 4,grade 1,grade 7,grade 11 |
|---|---|---|---|
| Color | Silver, Black,gold,purple,green.rainbow,blue | Surface | Polished, Pickling,anodizing |
| MOQ | 300PC | Technical | CNC,Stamping |
| Size | M3-M22 And Customized | Standard | All Standard And Accept Customized |
| Highlight | M7 Titanium Fasteners,Corrosion Resistance Titanium Fasteners,Ti6AL4V titanium socket head cap screws |
||
Product Description
Descriptions of DIN6923 Titanium Flange
DIN6923 Titanium Flange Nut is an international standard for flange nut.
DIN6923 Titanium Flange Nut is a type of hex nut with a flange at one end that covers the other end of the fastener.
This flange works to distribute the load of the nut over a larger area, providing more strength and stability than a normal titanium hex nut with flange.
Titanium hex nut with flange is commonly used in the automotive and aerospace industries and are available in a variety of materials, such as steel, aluminum, brass, and titanium.
Different grade of DIN6923 Titanium Flange Nut
Grade: Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12, Gr23
Grade: pure titanium, ti-6al-4v, ti3al-2.5v, Ti-0.2Pd, Ti-0.2Pd, Ti-0.3Mo-0.8Ni
Grade: BT1-0, BT1-00, OT4-B
DIN6923 Titanium Flange Nut 's Chemical Composition and Mechanical Properties
|
Physical Properties |
|||
|
Grade |
Tensile stength MPA |
Yield strength MPA |
Elongation % |
|
Gr1 |
240 |
170 |
24 |
|
Gr2 |
345 |
275 |
20 |
|
Gr4 |
550 |
483 |
15 |
|
Gr5 |
895 |
828 |
10 |
|
Gr7 |
400 |
275 |
18 |
|
Gr9 |
620 |
483 |
15 |
|
Gr12 |
483 |
348 |
18 |
|
Gr23 |
793 |
759 |
10 |
|
Composition |
||||||||||
|
Grade |
Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max |
Ni Max |
Mo Max |
|
/ |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
|
Gr1 |
0.2 |
0.18 |
0.03 |
0.08 |
0.015 |
|
|
|
|
|
|
Gr2 |
0.3 |
0.25 |
0.03 |
0.08 |
0.015 |
|
|
|
|
|
|
Gr4 |
0.5 |
0.4 |
0.05 |
0.08 |
0.015 |
|
|
|
|
|
|
Gr5 |
0.4 |
0.2 |
0.05 |
0.08 |
0.015 |
|
5.5-6.7 |
3.5-4.5 |
|
|
|
Gr7 |
0.3 |
0.25 |
0.03 |
0.08 |
0.015 |
0.12- 0.25 |
|
|
|
|
|
Gr9 |
0.25 |
0.15 |
0.03 |
0.08 |
0.015 |
|
2.5-3.5 |
2.0-3.0 |
|
|
|
Gr12 |
0.3 |
0.25 |
0.03 |
0.08 |
0.015 |
|
|
|
0.6-0.9 |
0.2-0.4 |
|
Gr23 |
0.25 |
0.03 |
0.03 |
0.08 |
0.0125 |
|
5.5-6.5 |
3.5-4.5 |
|
|
|
Ti |
Balance |
|||||||||
Detail drawing and Specification of DIN6923 Titanium Flange Nut

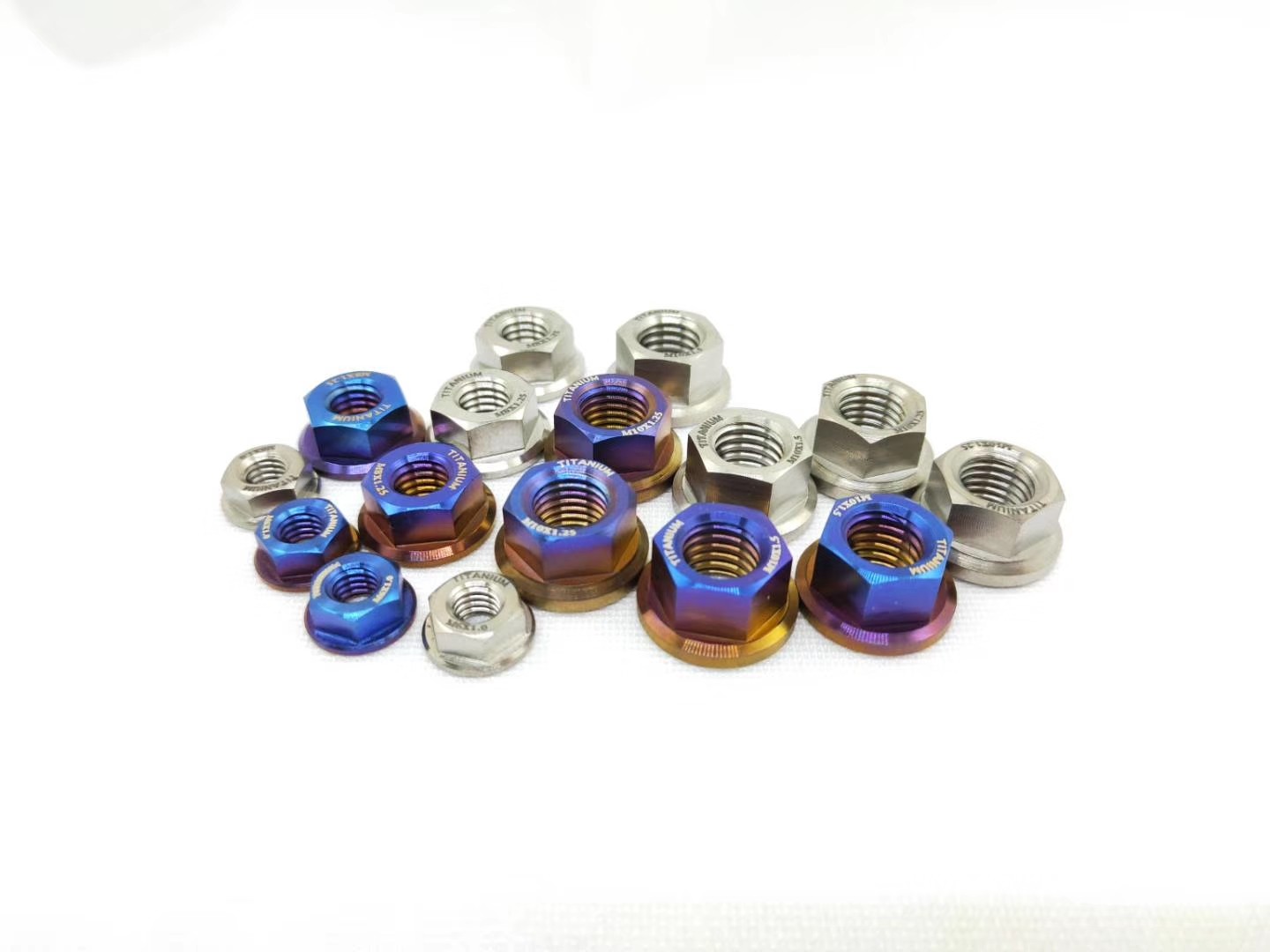

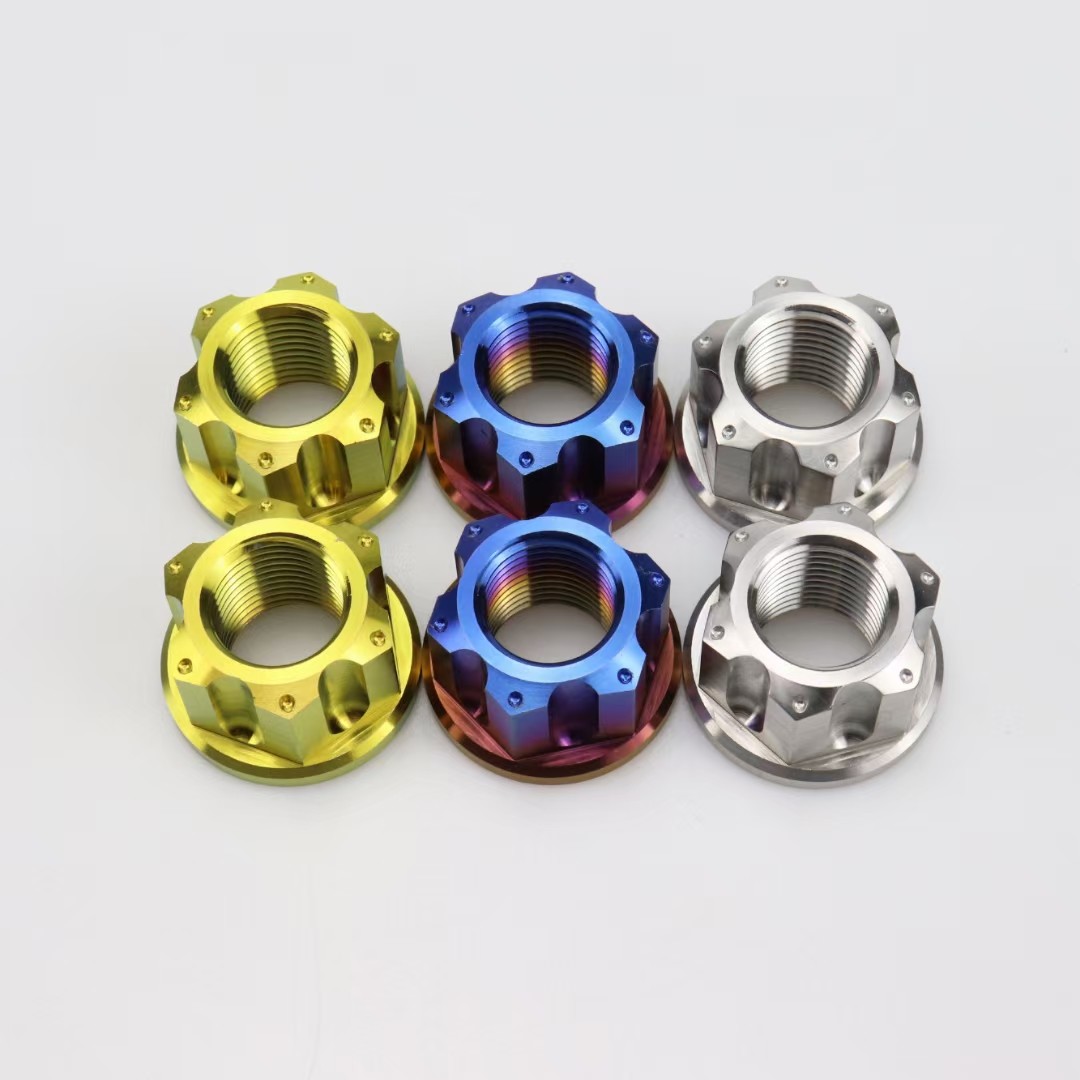

Picture show of DIN6923 titanium flange nut
Advantages of DIN6923 Titanium Flange Nut
1. High specific strength. The density of titanium is 4.51g/cm³, which is higher than aluminum but lower than steel, copper, and nickel, but its strength is much higher than other metals. DIN6923 Titanium Flange Nut made of titanium alloy are light and strong.
2. Good corrosion resistance. Titanium and titanium alloys are stable in many media, and DIN6923 Titanium Flange Nut is suitable for various corrosive environments.
3. Good heat resistance and low temperature resistance. Titanium hex nut with flange can work normally in a high temperature of 600°C and a low temperature of minus 250°C, and can maintain their shape without changing.
4. Non-magnetic and non-toxic. Titanium hex nut with flange is a non-magnetic metal, and it will not be magnetized in a large magnetic field; titanium hexagon nut with flange is not only non-toxic, but also has good compatibility with the human body.
5. Strong damping resistance. After titanium is subjected to mechanical vibration and electrical vibration, compared with steel and copper metals, its own vibration attenuation time is the longest. Utilizing this performance, titanium hexagon nut with flange can be used as a tuning fork, a vibrating element of an ultrasonic pulverizer in medicine, and a vibrating film of a high-end audio speaker.
