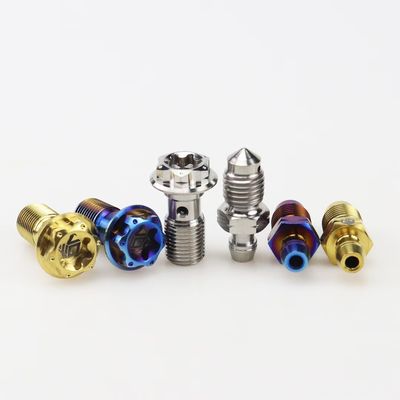

Titanium Gr5 Banjo Bolts Titanium Alloy Banjo Brake Screws for Motorcycle

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterials | Titanium | Grade | Grade 5, Ti-6al-4v,grade 2,grade 4,grade 1,grade 7,grade 11 |
---|---|---|---|
Color | Silver, Black,gold,purple,green.rainbow,blue | Surface | Polished, Pickling,anodizing |
MOQ | 300PC | Technical | CNC,Stamping |
Size | M3-M22 And Customized | Standard | All Standard And Accept Customized |
Highlight | 1.25 Pitch titanium bike screws,DIN912 titanium bike screws,Gr2 titanium brake bolts |
TITANIUM BANJO BOLTS, TITANIUM GR5 BANJO SCREW, TITANIUM GR7 BANJO BOLTS FOR MOTORCYCLE, M10 BANJO BOLTS TITANIUM, M8 BANJO BOLTS, TITANIUM ALLOY BANJO FITTING, TITANIUM BANJO BRAKE BOLTS, TITANIUM MOTORCYCLE BANJO BOLTS, CHINA TITANIUM BOLTS MANUFACTURER, CHINA TITANIUM FASTENERS SUPPLIER, CHINA TITANIUM SCREWS PLANT.
Head style: flange hex head
Size: M6, M8, M10, M12 and customized size acceptable
Pitch: 1.0, 1.25, 1.5
Length: 10-50mm
MOQ: 200pc
Grade: Titanium grade 5, ti-6al-4v, R56400
Color: Titanium color, gold color, blue color, purple color, green color, rainbow color
Application: Automobile, bicycle, motorcycle
Physical Properties | |||
Grade | Tensile stength MPA | Yield strength MPA | Elongation % |
Gr1 | 240 | 170 | 24 |
Gr2 | 345 | 275 | 20 |
Gr4 | 550 | 483 | 15 |
Gr5 | 895 | 828 | 10 |
Gr7 | 400 | 275 | 18 |
Gr9 | 620 | 483 | 15 |
Gr12 | 483 | 348 | 18 |
Gr23 | 793 | 759 | 10 |
Composition | ||||||||||
Grade | Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max | Ni Max | Mo Max |
/ | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % | Wt % |
Gr1 | 0.2 | 0.18 | 0.03 | 0.08 | 0.015 | |||||
Gr2 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | |||||
Gr4 | 0.5 | 0.4 | 0.05 | 0.08 | 0.015 | |||||
Gr5 | 0.4 | 0.2 | 0.05 | 0.08 | 0.015 | 5.5-6.7 | 3.5-4.5 | |||
Gr7 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12- 0.25 | ||||
Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | 2.5-3.5 | 2.0-3.0 | |||
Gr12 | 0.3 | 0.25 | 0.03 | 0.08 | 0.015 | 0.6-0.9 | 0.2-0.4 | |||
Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | 5.5-6.5 | 3.5-4.5 | |||
Ti | Balance |
What is a banjo bolt?
A banjo bolt is one half of a banjo fitting. Banjo fittings are frequently used to pass pressurized fluid. In the motorcycle world, they’re most often seen in brake systems, but there are lots of other non-motorcycle applications for this type of fluid-transfer fitting.
It’s generally a hollow bolt with a hole on the side. That hole allows fluid transfer into the other part of the fitting, which is also hollow. The banjo bolt passes through the center of the fitting, which also has a hole in it. The banjo fitting has flat surfaces which are normally sealed with a washer, often a crush washer. Those seals allow fluid to pass around the bolt, which means the holes do not need to line up unlike a standard threaded fitting, making installation of flexible lines easy (and in many cases, even possible in the first place.)
You’ll see them on your brake lines and hoses, most likely. Some bikes use them for oil transfer to and from various areas, including the cooler, and older motorcycles used them for fuel fittings on the gas tanks.
Banjo fittings are a neat piece of engineering that’s not new, but I still marvel when I see one, because it makes me think of how clever an idea they really are.
