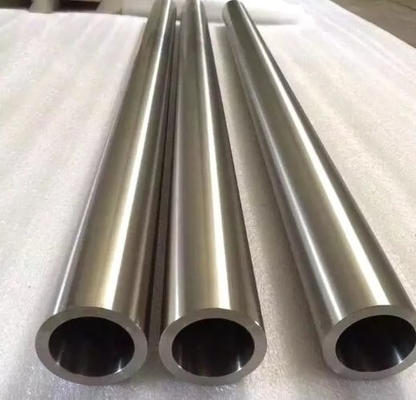

ASTM B338 3Al2.5V Titanium Alloy Tubes Grade 9 for Aircraft Hydraulic Systems

  • ASTM B338 3Al2.5V Titanium Alloy Tubes Grade 9 for Aircraft Hydraulic Systems
  • ASTM B338 3Al2.5V Titanium Alloy Tubes Grade 9 for Aircraft Hydraulic Systems
Place of Origin China
Brand Name Changsheng
Certification ISO9001:2015
Model Number Titanium Alloy Tubes Gr9
Minimum Order Quantity 5kg
Price USD 38.0/KG - USD 48.0/KG
Packaging Details Soft film wrapped inside, export standard crate outside.
Delivery Time 3-5 work days
Payment Terms L/C, T/T
Supply Ability 30 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Alloy Titanium, Grade 9(3Al2.5V), TA18 Diameter 6mm To 219mm
Wall Thickness 0.9mm To 30mm Surface Polished Surface Or Acid Washing Surface
Shape Titanium Round Tube, Titanium Square Pipe Type Seamless Titanium Tubes, Titanium Welded Tubes
Standard ASTM B338, ASTM B337, ASTM B861 Application Oil Pipe, Biycle Bike Frame Tubes, Aircraft Hydraulic Systems
Advantage Good Welding Propertity, Corrosion Resistance Origin Baoji City, China
High Light

Gr9 Systems Titanium Alloy Tube

,

3Al2.5V Titanium Alloy Tube

,

709" Titanium Alloy pipe
Leave a Message
Product Description

ASTM B338 Aircraft Hydraulic Systems Used 3Al2.5V Alloy Tubing Seamless Titanium Tubes Grade 9

Titanium tube Grade 9 (Ti-3Al-2.5V) is light weight, high strength, excellent mechanical and welding properties and corrosion resistance. Gr9 titanium tube widely is used in Aircraft Hydraulic Systems. We are titanium metal tube supplier, we offer competitive titanium tube price to our customers. Titanium alloy Gr9 tube with high tensile strength and yield strength.

We offer a wide range of Titanium and Titanium alloy pipes and tubes and we can manufacture customized seamless and welded Titanium pipes and tubes according to the specifications provided by clients.
Keywords: Titanium Alloy Tubes, Titanium tubing Gr9, Titanium Square pipes, Titanium Tubes Factory, Seamless Titanium Tubes, Titanium Oil Pipe, Titanium Pressure Pipes.


Detailed Information of Titanium Alloy Tubes Gr.9:

Titanium Material Grade: Titanium alloy, Grade 9 (Ti-3Al-2.5V), TA18
Standard: ASTM B338 ASTM B337 ASTM B861/862
Supply surface: pickling surface, or bright surface
Supply specifications of TitaniumTube Grade 9:
OD 6mm-219mm,etc.
Wall thickness: 0.9mm-30.0mm
Length within:6m

Test: Ultrasonic test, Hydraulic test
Processing: Cold/Hot rolling, Extruding, Hot Expanding



Specs of Seamless Titanium Tubes Grade 9:

Type
Grade
British measurement inch
Metric Measurement
Standard
seamless tubing
GR1.GR2,GR5,GR7,GR9,
GR12,GR16,GR17

OD:0.06” to 3.5"

Width:0.016” to0.315”
Length Max:709”

OD:1.53 to 89mm

WT:0.4 to 8mm
Length Max:18000mm

ASTM B338

ASME SB338
seamless pipe
GR1.GR2,GR5,GR7,GR9,
GR12,GR16,GR17

OD:3.5” to 25”

WT:0.12” to 1”
Length Max:709”

OD 89 to 620mm

WT:3 to 25.4mm
Length Max:18000mm

ASTM B338

ASME SB338
ASTM B861


Mechanical Properties of Titanium Metal Tubes:

ASTM Grade
Alloy composition
Tensile strength
Yield strength
Elongation %
ksi
Mpa
ksi
Mpa
GR1
Unallyed Ti(Pure)35A-CP1
35
240
25
170
24
GR2
Unallyed Ti(Pure)50A-CP2
50
345
40
275
20
GR5
Ti 6Al 4V
130
895
120
828
10E
GR7
Ti-Pd
50
345
40
275
20
GR9
Ti 3AI 2.5V
90
620
70
483
15F


Industrial Applications of Grade 9 Titanium Tube:

Aircraft Hydraulic Systems
Oil and Gas Industry
Power Plant Industry
Marine Industry
Sports Industry, like scooter, bike, bicycle.
Seawater desalination industry
Chemical and petrochemical industry
Pulp and paper industry
Plating and anodizing industry
Medical industry
Nuclear industry

Company Information:
Baoji City Changsheng Titanium Co., Ltd. was established in September 2001. It is located in the middle section of Baotai Road, Baoji City, Shaanxi Province, which is known as "China Titanium Valley". We specialize in the research and production of titanium and titanium alloy materials, nickel and nickel alloy materials, zirconium materials. After nearly two decades of development, we have formed an annual production capacity of 2,000 tons. The products are widely used in salt, chlor-alkali, chemical, metallurgy, enviromental protection, coating, sports and other industries.

RFQ:
1. Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
2. Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium fittings are standard, we can follow ASTM B338 / ASME SB338 or other you asked.
3. Can you provide samples? Is there a charge?
Titanium Alloy Tube samples can be provided for a fee.
4. What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
5. How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.

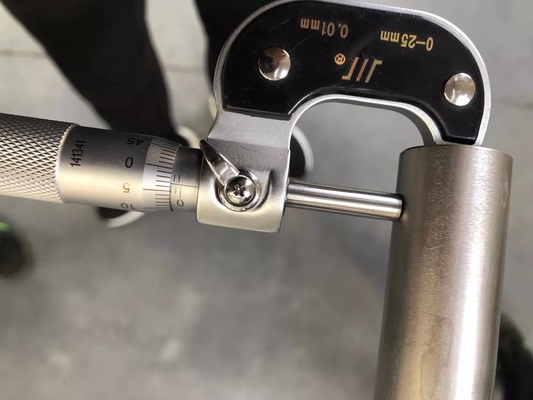

Spec Inspection of Titanium Tube

ASTM B338 3Al2.5V Titanium Alloy Tubes Grade 9 for Aircraft Hydraulic Systems 0

Tags: Round titanium pipes gr9, TA18 titanium alloy tubing, Hydraulic tubes, Titanium alloy tube GR9, China titanium pipe factory supplier.
