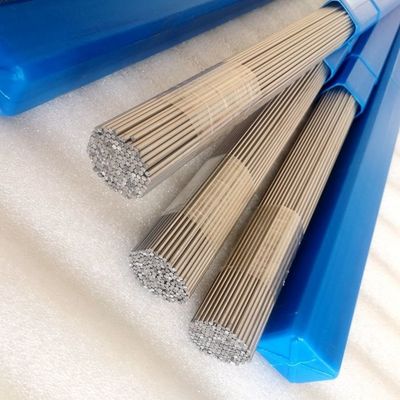

Gr1 Gr2 Gr5 Titanium Alloy Wire 2.0*1000mm For Medical And Health Care
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001;2015 |
| Model Number | ASTM B265, ASTM F136 |
| Minimum Order Quantity | 5kg |
| Price | $155.00/kg |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 3-5work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram,paypal |
| Supply Ability | 2000kgs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Technique | Cold Rolled Hot Rolled | Certifications | AWS A5.16, ISO 5832-2 |
|---|---|---|---|
| Materials | Titanium | Diameter | 0.8mm |
| Feature | Shape Memory Superelastic | Grade | Grade 2 |
| Performance | Superelastic | Surface | Polished |
| Technical | Cold Drawn,welding | Surface Process | Pickled, Polished |
| Package | Spool | Key Words | Titanium Flat Wire |
| Material Grade | GR1 GR2 GR3 GR4 | Thickenss | 0.6-2mm |
| Surface Color | Polished/black/blue/yellow/purple | ||
| Highlight | Gr2 Titanium Alloy Wire,Medical Titanium Alloy Wire,Gr5 Titanium Alloy Wire |
||
Product Description
Introduction
Titanium plates are manufactured according to both national and international standards.
-
National Standards: GB/T 3621-2007, GB/T 13810-2007
-
American Standards: ASTM B265, ASTM F136, ASTM F67, AMS 4928, and AMS 4911
AMS 4911 Titanium 6Al-4V (also known as Grade 5 Titanium) is the most widely used titanium alloy. It offers an excellent combination of high strength, low weight, and superior corrosion resistance, making it suitable for aerospace, medical, marine, and automotive industries.
Specification
| Product Form | Size Range / Thickness |
|---|---|
| Titanium Coil | 0.012" – 0.125" |
| AMS 4911 6Al-4V Titanium Sheet | 0.012" – 0.125" |
| AMS 4911 6Al-4V Titanium Plate | 0.125" – 4" |
| Common Sheet/Plate Sizes | 0.032" × 36" × 96"0.040" × 36" × 96"0.063" × 36" × 96"0.071" × 36" × 96"0.080" × 36" × 96"0.090" × 36" × 96" |
| Maximum Dimensions | Width ≤ 59", Length ≤ 118" |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength (Min) | 900 MPa |
| Yield Strength at 0.2% Offset (Min) | 825 MPa |
| Elongation (A50mm, Min) | 10% |
| Hardness (Max) | 36 HRC |
Chemical Composition
| Element | Min (%) | Max (%) |
|---|---|---|
| Aluminum (Al) | 5.50 | 6.75 |
| Vanadium (V) | 3.50 | 4.50 |
| Iron (Fe) | — | 0.30 |
| Oxygen (O) | — | 0.20 |
| Carbon (C) | — | 0.08 |
| Nitrogen (N) | — | 0.05 (500 ppm) |
| Hydrogen (H) | — | 0.015 (150 ppm) |
| Yttrium (Y) | — | 0.005 (50 ppm) |
| Other Elements, Each | — | 0.10 |
| Other Elements, Total | — | 0.40 |
| Titanium (Ti) | Remainder | — |
Applications
1. Aerospace Industry
Titanium 6Al-4V plates are widely used in aircraft engines, structural parts, and airframe components due to their lightweight, high strength, and resistance to high-temperature oxidation and corrosion, effectively enhancing performance and extending service life.
2. Medical and Healthcare
With excellent biocompatibility, titanium plates are ideal for medical implants such as artificial joints, dental implants, bone plates, and prosthetics. They provide durability, lightness, and compatibility with human tissue.
3. Marine Engineering
Titanium 6Al-4V exhibits outstanding resistance to seawater corrosion, making it suitable for offshore oil and gas applications, subsea pipelines, and marine structures, where long-term durability is essential.
4. Automotive Manufacturing
As performance demands rise, titanium alloys are increasingly used in automotive components such as engine hoods, connecting rods, and exhaust systems. Their strength, toughness, and lightweight properties enhance safety and fuel efficiency.
Summary
AMS 4911 Titanium 6Al-4V Sheet and Plate combine strength, light weight, corrosion resistance, and biocompatibility. They are key materials for aerospace, medical, marine, and automotive applications, and their use continues to expand with advances in technology and manufacturing.
