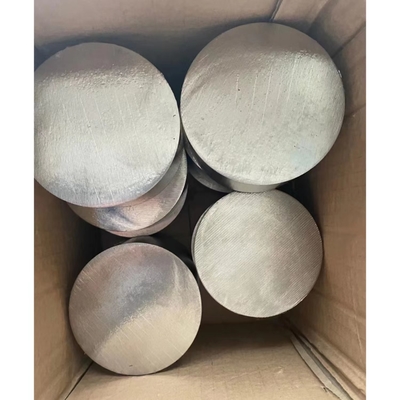

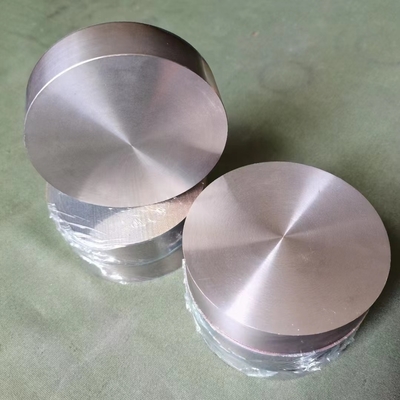

Titanium Alloy Forge Blocks And Rings Grade 5 Grade 2 ASTM B381 / B348

  • Titanium Alloy Forge Blocks And Rings Grade 5 Grade 2 ASTM B381 / B348
  • Titanium Alloy Forge Blocks And Rings Grade 5 Grade 2 ASTM B381 / B348
Place of Origin China
Brand Name Changsheng
Certification ISO 9001;2015
Model Number ASTM
Minimum Order Quantity 100kg
Price 15usd/kg
Packaging Details packed with export wooden case
Delivery Time 10-15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Titanium Standard ASTM B381
Shape Block, Ring, Disc Technical Forge, CNC
Application Industrial And Aerospace Surface Polished
High Light

Titanium Alloy Forge Blocks

,

ASTM B348 Forge Rings

,

Grade 5 Titanium Forgings
Leave a Message
Product Description

DETAIL INFORMATION

1. Grade:Gr5(Ti-6AL-4V)

2. Standard:AMS 4928, ASTM B381, ASTM B348,

3. Size;2.5" (63.5mm) to 6" (152.4mm)





Physical Properties
Grade Tensile stength MPA Yield strength MPA Elongation %
Gr1 240 170 24
Gr2 345 275 20
Gr4 550 483 15
Gr5 895 828 10
Gr7 400 275 18
Gr9 620 483 15
Gr12 483 348 18
Gr23 793 759 10



Composition
Grade Fe Max

O

Max

N

Max

C

Max

H

Max

 Pd Max

Al

Max

 Va Max Ni Max Mo Max
/ Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt % Wt %
Gr1 0.2 0.18 0.03 0.08 0.015
Gr2 0.3 0.25 0.03 0.08 0.015
Gr4 0.5 0.4 0.05 0.08 0.015
Gr5 0.4 0.2 0.05 0.08 0.015   5.5-6.7 3.5-4.5
Gr7 0.3 0.25 0.03 0.08 0.015 0.12- 0.25
Gr9 0.25 0.15 0.03 0.08 0.015   2.5-3.5 2.0-3.0
Gr12 0.3 0.25 0.03 0.08 0.015       0.6-0.9 0.2-0.4
Gr23 0.25 0.03 0.03 0.08 0.0125   5.5-6.5 3.5-4.5
Ti Balance
