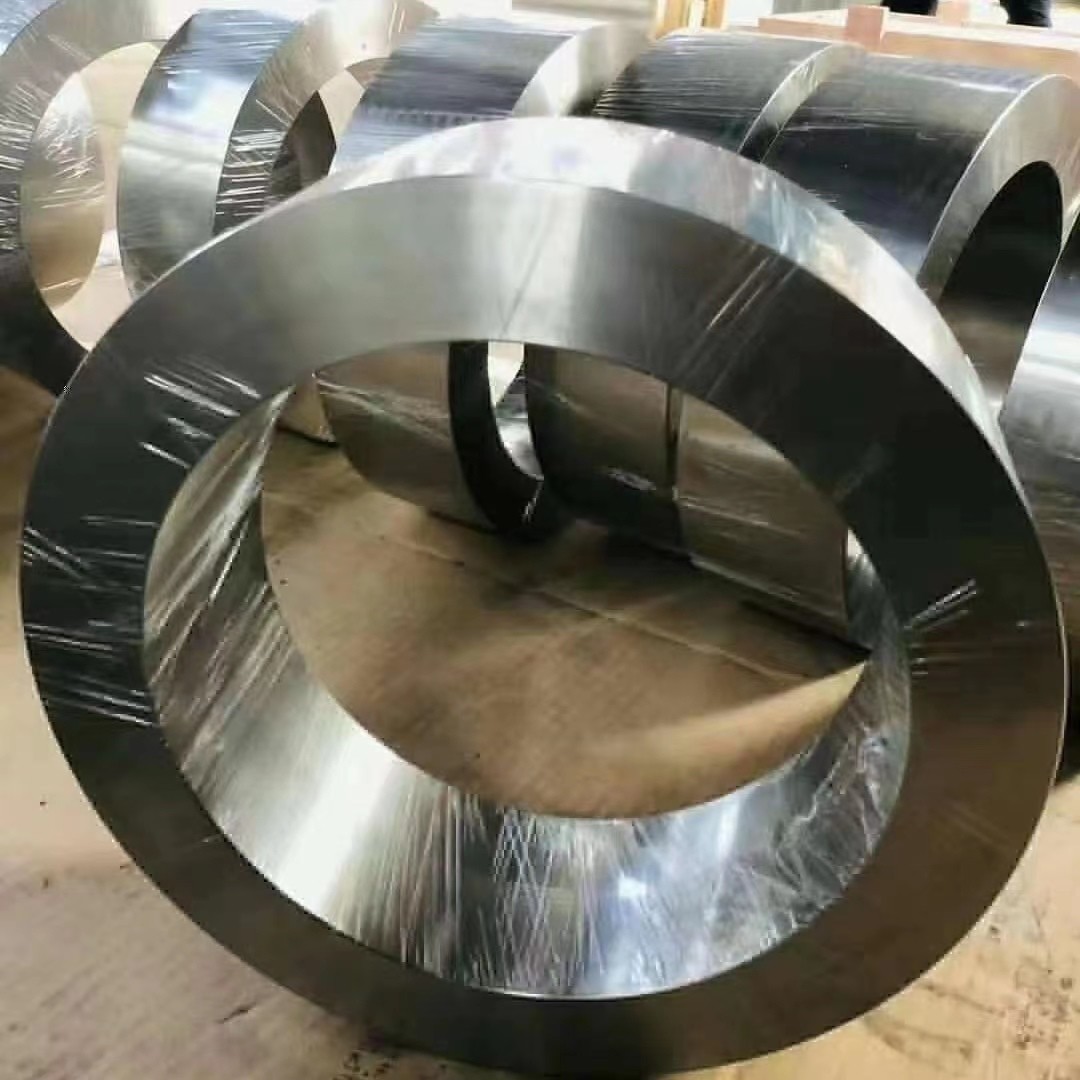

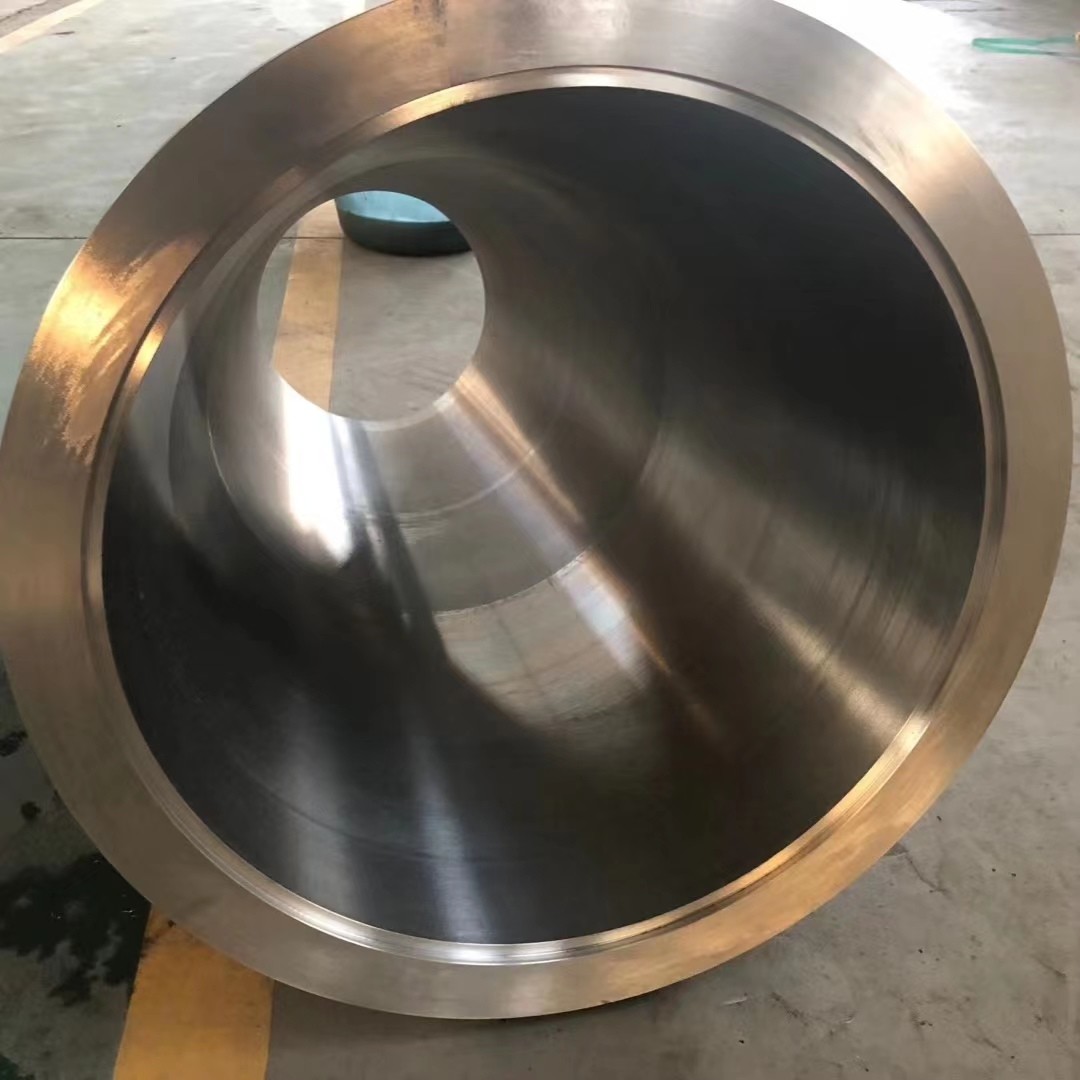

Titanium Forging Titanium Ring ASTM B381 Titanium Forge For Industry
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001;2015 |
| Model Number | ASTM |
| Minimum Order Quantity | 50kg |
| Price | 15usd/kg |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 30days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium And Titanium Alloy | Standard | ASTM B381 |
|---|---|---|---|
| Grade | Grade 1,Grade 5, Ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11 | OD | 15-914mm |
| Ultrosonic Flaw Detection | A1 | Technology | Forging |
| Hardness | HRC 35-40 | Strength | ≥900MPa |
| Heat Treatment | Annealed | Lead Time | 4-6 Weeks For Bulk Orders |
| Wall Thickness | 50~200mm | Color | Matal Gray |
| Durability | Long-lasting | Condition | Vacuum Annealed |
| Heat Resistance | High | Weight | Customized |
| Outer Diameter | 200-1300mm | Uns | R50400, R56400, R52400 |
| Density | 4.51g/cm³ | ||
| Highlight | Corrosion Resistant Titanium Ring,ASTM B381 Titanium Ring Forgings,Titanium Forgings Ring |
||
Product Description
Description
Titanium Forging and Titanium Ring ASTM B381 are high-performance titanium components produced through a precision forging process. Forged titanium rings and parts provide superior mechanical strength, structural integrity, and excellent corrosion resistance. They are widely used in demanding environments such as aerospace, marine, energy, and medical industries.
The forging process ensures uniform grain flow and enhances fatigue resistance, making titanium forgings ideal for critical components where safety and reliability are essential.
Grades and Standards
| Item | Specification |
|---|---|
| Available Grades | F-1, F-2, F-5, F-7, F-9, F-12, F-23 |
| Standards | ASTM B381, ASTM B348, ASTM B265 |
| Features | High strength, heat resistance, corrosion resistance, and low-temperature performance |
| Shape Options | Forged rings, discs, blocks, and custom shapes |
| Condition | Annealed or solution-treated |
Physical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| F-1 | 240 | 170 | 24 |
| F-2 | 345 | 275 | 20 |
| F-4 | 550 | 483 | 15 |
| F-5 | 895 | 828 | 10 |
| F-7 | 400 | 275 | 18 |
| F-9 | 620 | 483 | 15 |
| F-12 | 483 | 348 | 18 |
| F-23 | 793 | 759 | 10 |
Chemical Composition (Max %)
| Grade | Fe | O | N | C | H | Pd | Al | V | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|---|
| F-1 | 0.20 | 0.18 | 0.03 | 0.08 | 0.015 | — | — | — | — | — |
| F-2 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | — | — | — | — | — |
| F-4 | 0.50 | 0.40 | 0.05 | 0.08 | 0.015 | — | — | — | — | — |
| F-5 | 0.40 | 0.20 | 0.05 | 0.08 | 0.015 | — | 5.5–6.7 | 3.5–4.5 | — | — |
| F-7 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12–0.25 | — | — | — | — |
| F-9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | — | 2.5–3.5 | 2.0–3.0 | — | — |
| F-12 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | — | 0.6–0.9 | 0.2–0.4 | — | — |
| F-23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | — | 5.5–6.5 | 3.5–4.5 | — | — |
| Ti | Balance |
Applications
-
Aerospace: Used in jet engine components, compressor rings, and structural parts requiring high strength and low weight.
-
Automotive: Applied in high-performance engine parts, exhaust systems, and suspension components.
-
Chemical & Industrial: Used for valves, pumps, and reactors in corrosive or high-temperature environments.
-
Energy: Ideal for turbine and generator components, and in nuclear power systems for its high-temperature resistance.
-
Marine: Applied in seawater handling equipment, propeller shafts, and offshore structures due to excellent corrosion resistance.
-
Medical: Suitable for orthopaedic implants, dental components, and surgical instruments due to biocompatibility.
Advantages
High strength-to-weight ratio and fatigue resistance.
Exceptional corrosion resistance in seawater, acids, and chlorides.
High-temperature stability for aerospace and industrial use.
Biocompatible and non-toxic for medical applications.
Excellent machinability and weldability for custom forging requirements.
