Pickling surface Titanium filler Welding Wire ERTi - 2 ERTi-5 AWS A5.16

  • Pickling surface Titanium filler Welding Wire ERTi - 2 ERTi-5 AWS A5.16
Place of Origin China
Brand Name Changsheng
Certification ISO 9001;2015
Model Number AWS A5.16
Minimum Order Quantity 10KG
Price 15usd/kg
Packaging Details packed with export wooden case
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 50T/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Titanium And Titanium Alloy Grade ERTI-1, ERTI-2,ERTI-5, ERTI-7
Diameter Dia0.05-3mm MOQ 10KG
Surface Polished, Pickling Technical Drawing
Shape Straisht, Coiled Leading Time 7-15days
Highlight

Pickling Pure Titanium Wire

,

Drawing Titanium Coil Wire

,

ERTi-1 Titanium Welding Wire
Leave a Message
Product Description

Titanium ERTI-2 ERTI-5 ERTI-7 welding wire

Material: titanium

Grade:ERTI-2, ERTI-5, ERTI-7

Standard:ASTM B863, AWS A5.16, ASTM B348

Color: silver, black, pickling
MOQ:10kg
Diameter: 0.05-3mm
Surface: polished, pickling, anodinzing
Shape:coiled wire/straight wire
Keywords: titanium filler wire,titanium welding filler wire
Application:TIG welding wire, anodizing rack tie wire, dental appliances, safety wire,pressure vessel,
Desalination,Water treatment, Power Generation, Chemical Processing, Marine, Aerospace, Military, Medical.

According To The Different Production Process, The Titanium Wire Can Be Divided Into The Hot Drawing Titanium Wire And The Cold Titanium Wire. The Titanium Welding Wires We Supply Can Only Be Round Cross Section And Drawn From Titanium Wire Rods, They Are Made As Filler Metal For Welding Applications By Arc, MIG, TIG Procedures

Titanium welding wire compostion and physical properties



Grade UNS NO ASTM B348 ASTM B863   C       O     N   H   Fe   Al   V
ERTI-1 R50100 Grade 1 0.03 0.03-0.10 0.012 0.005 0.08
ERTI-2 R50120 Grade 2 0.03 0.08-0.16 0.015 0.008 0.12
ERTI-3 R50125 Grade 3 0.03 0.13-0.20 0.02 0.008 0.16
ERTI-4 R50130 Grade 4 0.03 0.18-0.32 0.025 0.008 0.25
ERTI-5 R50400 Grade 5 0.03 0.12-0.20 0.03 0.015 0.22 5.5-6.7 3.5-4.5
ERTI-7 R52401 Grade 7 0.03 0.08-0.16 0.015 0.008 0.12
ERTI-9 R56320 Grade 9 0.03 0.06-0.12 0.012 0.005 0.2
ERTI-23 R56408

Grade 23/

Grade 5 ELI


 0.03 0.03-0.11 0.012 0.005 0.2 5.5-6.5 3.5-4.5

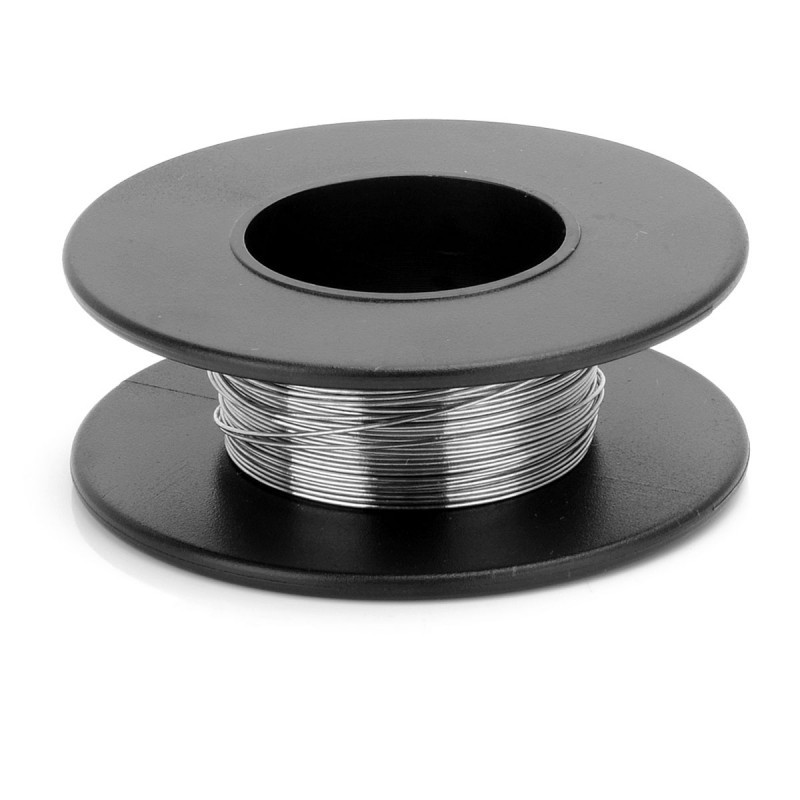

Pickling surface titanium ERTI-2 welding coiled wire

Dia 0.5mm titanium grade 2 welding wire

titanium gr2 welding coiled wire according to AWS A5.16



Pickling surface Titanium filler Welding Wire ERTi - 2 ERTi-5 AWS A5.16 0

Polished surface titanium ERTI-5 welding wire

Dia 1mm titanium ERTI-5 welding wire according to AWS A5.16

Gr5 titanium welding coiled wire 10kg

Pickling surface Titanium filler Welding Wire ERTi - 2 ERTi-5 AWS A5.16 1

Advantages of titanium materails welding wire

Titanium is a silver-white metal with many excellent properties. For example, the density of titanium is 4.54g/cm3, which is 43% lighter than steel, but its mechanical strength is similar to that of steel. And titanium is resistant to high temperatures and has a melting point of 1942K, which is nearly 500K higher than steel. In recent years, with the continuous research of titanium, more and more products made for titanium can be found in our daily life and titanium wires are one of them.
