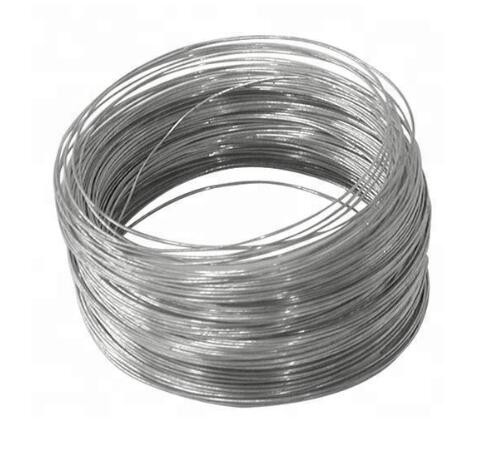

AWS A5.16 Titanium ERTi-7 Welding Wire Colied Wire in stock
| Place of Origin | China |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001;2015 |
| Model Number | AWS A5.16 |
| Minimum Order Quantity | 10kg |
| Price | $160.00/ kg |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 3-5days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium | Grade | Grade 1,Grade 5, Ti-6al-4v,grade 2,grade 4,grade 23,grade 7,grade 11 |
|---|---|---|---|
| Diameter | 0.05-3mm | Surface | Polished, Pickling,Anodizing |
| MOQ | 10kg | Standard | ASTM B863, AWS A5.16, ASTM B348 |
| Technical | Forged,welding | Delivery Time | 7-10 Days |
| Highlight | gr12 Titanium Welding Wire,ASTM B348 Titanium Welding Wire,coiled thin titanium wire |
||
Product Description
Descriptions
AWS A5.16 Titanium ERTi-7 Welding Wire is small in diameter and can come on a spool, cut to TIG rod length, or full bar length. These “Ti” wires are commonly used in chemical processing and anodizing, where parts are hung or tied down with wire. “Ti” Wire- AWS A5.16 Titanium ERTi-7 Welding Wire for TIG welding is cut to 36″ lengths and is also available in common welding rod sizes.
Specification of our AWS A5.16 Titanium ERTi-7 Welding Wire
Material: ERTI-1, ERTI-2, ERTI-5, ERTI-7,ERTI-23
Standard:ASTM B863, AWS A5.16, ASTM B348
MOQ:10kg
Diameter: 0.5-4.9mm ERTi-7 Coiled Wire
Surface: polished, pickling surface ERTi-7 Coiled Wire
Shape: coiled wire, straight wire
Application: TIG welding wire, anodizing rack tie wire, dental appliances, safety wire, pressure vessel
Shape: coiled wire, straight wire
Application: TIG welding wire, anodizing rack tie wire, dental appliances, safety wire, pressure vessel
Physical Properties
|
Physical Properties |
|||
|
Grade |
Tensile stength MPA |
Yield strength MPA |
Elongation % |
|
Gr1 |
240 |
170 |
24 |
|
Gr2 |
345 |
275 |
20 |
|
Gr4 |
550 |
483 |
15 |
|
Gr5 |
895 |
828 |
10 |
|
Gr7 |
400 |
275 |
18 |
|
Gr9 |
620 |
483 |
15 |
|
Gr12 |
483 |
348 |
18 |
|
Gr23 |
793 |
759 |
10 |
Chemical Compositions
|
Composition |
||||||||||
|
Grade |
Fe Max |
O Max |
N Max |
C Max |
H Max |
Pd Max |
Al Max |
Va Max |
Ni Max |
Mo Max |
|
/ |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
Wt % |
|
Gr1 |
0.2 |
0.18 |
0.03 |
0.08 |
0.015 |
|
|
|
|
|
|
Gr2 |
0.3 |
0.25 |
0.03 |
0.08 |
0.015 |
|
|
|
|
|
|
Gr4 |
0.5 |
0.4 |
0.05 |
0.08 |
0.015 |
|
|
|
|
|
|
Gr5 |
0.4 |
0.2 |
0.05 |
0.08 |
0.015 |
|
5.5-6.7 |
3.5-4.5 |
|
|
|
Gr7 |
0.3 |
0.25 |
0.03 |
0.08 |
0.015 |
0.12- 0.25 |
|
|
|
|
|
Gr9 |
0.25 |
0.15 |
0.03 |
0.08 |
0.015 |
|
2.5-3.5 |
2.0-3.0 |
|
|
|
Gr12 |
0.3 |
0.25 |
0.03 |
0.08 |
0.015 |
|
|
|
0.6-0.9 |
0.2-0.4 |
|
Gr23 |
0.25 |
0.03 |
0.03 |
0.08 |
0.0125 |
|
5.5-6.5 |
3.5-4.5 |
|
|
|
Ti |
Balance |
|||||||||
Stock
Features
AWS A5.16 Titanium ERTi-7 Welding Wire is a titanium alloy specifically designed for welding applications.
AWS A5.16 Titanium ERTi-7 Welding Wire is composed of 90% titanium, 6% aluminum, and 4% vanadium and is highly resistant to corrosion and oxidation.
The weld joint produced by this wire is strong and ductile enough to be used in numerous applications such as aerospace, automotive, and marine applications.
ERTi-7 straight welding wire is also commonly used in chemical process equipment and pressure vessels.
ERTi-7 coiled Wire has a high melting point and is easy to form and shape.
ERTi-7 coiled Wire is also non-magnetic, which makes it an excellent choice for welding in areas that are sensitive to magnetic fields.
