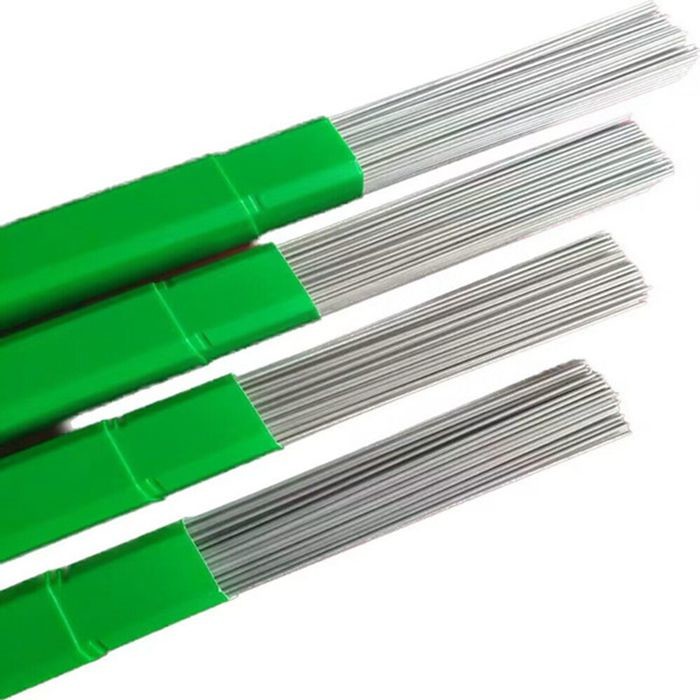

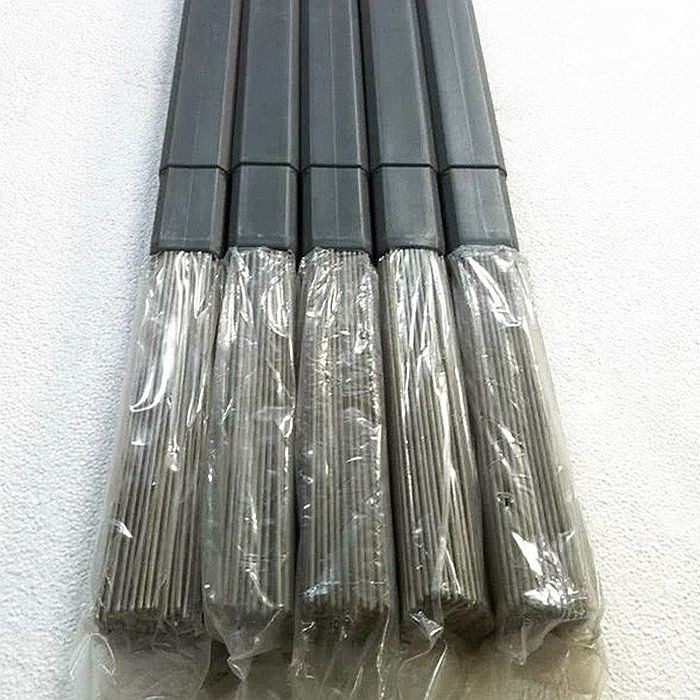

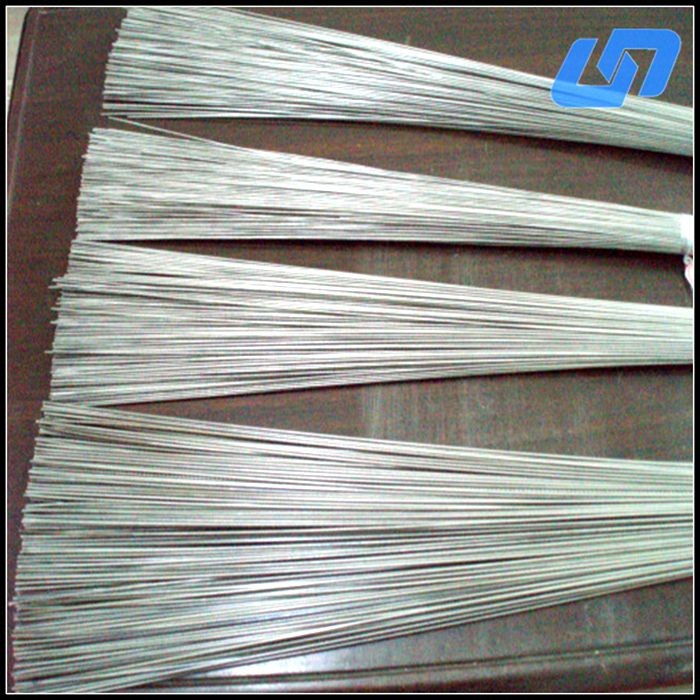

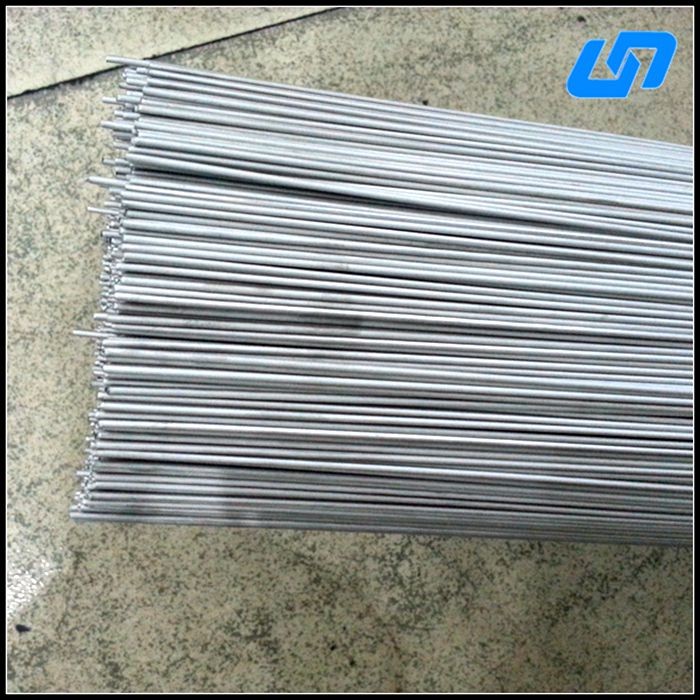

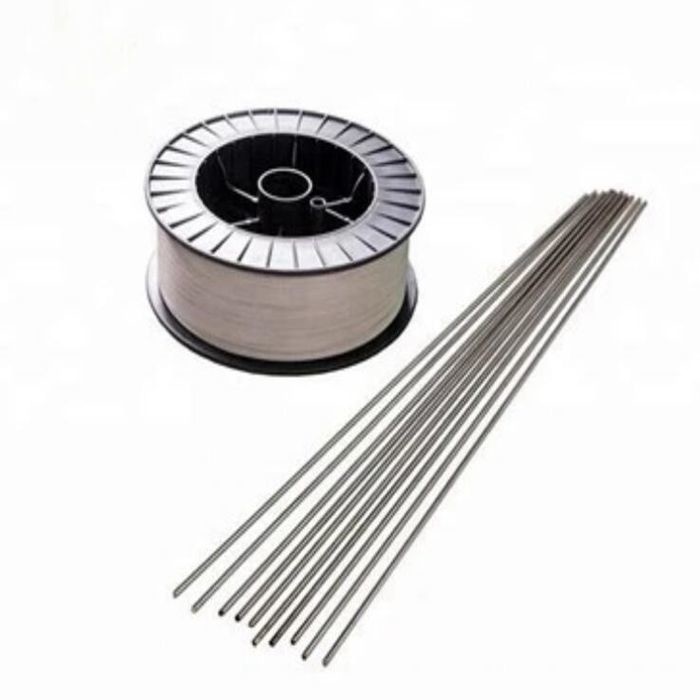

AWS A5.16 Titanium welding wire ErTi-2 Straight Welding Wire
| Place of Origin | CHINA |
|---|---|
| Brand Name | Changsheng |
| Certification | ISO 9001 |
| Model Number | AWS A5.16 |
| Minimum Order Quantity | 10kg |
| Price | $160/ kg |
| Packaging Details | wooden case,carton Packaging can be according to customer requirements. |
| Delivery Time | 3-5days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Kilogram/Kilograms per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materials | Titanium | Grade | Grade 1,Grade 2, Grade 7 |
|---|---|---|---|
| Diameter | 2.0mm, 2.4mm, 3.0mm, Etc. | Surface | Polished, Pickling,Anodizing |
| MOQ | 5kg | Standard | ASTM B863, AWS A5.16, ASTM B348 |
| Technical | Forge,welding | Delivery Time | 3-5 Days |
| Highlight | ERTI5 Titanium Straight Wire,ERTI2 Titanium Straight Wire,0.05mm titanium alloy wire |
||
Product Description
Description
AWS A5.16 Titanium Welding Wire is specifically designed for the welding of titanium and titanium alloys. It offers excellent weldability, corrosion resistance, and mechanical properties, making it suitable for demanding applications in aerospace, chemical processing, marine, and medical industries.
This wire is available in multiple grades, diameters, and finishes to meet various welding requirements. The most commonly used grades include ErTi-1, ErTi-2, ErTi-5, and ErTi-7.
Titanium welding wires under AWS A5.16 / ASTM B863 / ASTM F67 / ASTM F136 standards are used in GTAW (TIG), GMAW (MIG), and SMAW processes. Among them, ErTi-2 is widely preferred for both root and fill passes due to its balanced strength, ductility, and corrosion resistance.
Specifications
| Item | Description |
|---|---|
| Standard | AWS A5.16, ASTM B863, ASTM F67, ASTM F136 |
| Grades | ErTi-1, ErTi-2, ErTi-5, ErTi-7 |
| Diameter | 0.5 – 5.0 mm |
| Length | 1000 mm (standard straight cut) |
| Surface Finish | Polished, Pickled |
| Production Process | Drawing |
| Minimum Order Quantity | 10 kg |
Physical Properties
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) |
|---|---|---|---|
| Gr1 | 240 | 170 | 24 |
| Gr2 | 345 | 275 | 20 |
| Gr4 | 550 | 483 | 15 |
| Gr5 | 895 | 828 | 10 |
| Gr7 | 400 | 275 | 18 |
| Gr9 | 620 | 483 | 15 |
| Gr12 | 483 | 348 | 18 |
| Gr23 | 793 | 759 | 10 |
Chemical Composition
| Grade | Fe (Max) | O (Max) | N (Max) | C (Max) | H (Max) | Pd (Max) | Al (%) | V (%) | Ni (Max) | Mo (Max) | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gr1 | 0.20 | 0.18 | 0.03 | 0.08 | 0.015 | — | — | — | — | — | Balance |
| Gr2 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | — | — | — | — | — | Balance |
| Gr4 | 0.50 | 0.40 | 0.05 | 0.08 | 0.015 | — | — | — | — | — | Balance |
| Gr5 | 0.40 | 0.20 | 0.05 | 0.08 | 0.015 | — | 5.5–6.7 | 3.5–4.5 | — | — | Balance |
| Gr7 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | 0.12–0.25 | — | — | — | — | Balance |
| Gr9 | 0.25 | 0.15 | 0.03 | 0.08 | 0.015 | — | 2.5–3.5 | 2.0–3.0 | — | — | Balance |
| Gr12 | 0.30 | 0.25 | 0.03 | 0.08 | 0.015 | — | 0.6–0.9 | 0.2–0.4 | — | — | Balance |
| Gr23 | 0.25 | 0.03 | 0.03 | 0.08 | 0.0125 | — | 5.5–6.5 | 3.5–4.5 | — | — | Balance |
Advantages
-
Excellent Weldability & Corrosion Resistance — Ensures high-quality, defect-free welds in demanding environments.
-
High Strength-to-Weight Ratio — Ideal for aerospace, automotive, and medical applications where weight reduction is critical.
-
Non-Magnetic Properties — Suitable for sensitive environments where magnetism must be minimized.
-
High Melting Point — Reliable performance in high-temperature operations.
-
Good Ductility & Formability — Can be easily shaped and bent for complex assemblies.
-
Oxidation Resistance — Stable performance under thermal and oxidative stress.
-
Biocompatibility & Non-Toxicity — Safe for use in medical, food processing, and pharmaceutical equipment.
Applications
Aerospace components and structures
Chemical processing equipment
Marine and offshore systems
Medical implants and surgical devices
Automotive exhaust and performance parts
Sports and recreation equipment
Power generation and desalination plants
